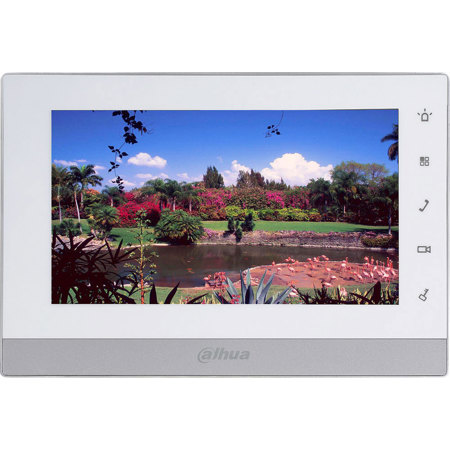

Dahua DHI-VTH1550CHW-2-S 7" WVGA Touchscreen IP Color Intercom Monitor, 2-Wire
See all dahua items

Dahua DHI-VTH1550CHW-2-S 7" WVGA Touchscreen IP Color Indoor Video Intercom Monitor, 800x480, 2-Wire

SKU: DA1550CHW2S
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Dahua DHI-VTH1550CHW-2-S Specifications

System

System

Jump to...

  • Main Processor

    Embedded Micro Processor

  • Operating System

    Embedded Linux

Display

Jump to...

  • Viewing Area

    7" Capacitive

  • Resolution

    800 x 480 (WVGA)

  • Input

    Touchscreen Technology and Mechanical Keys

Interface

Jump to...

  • Audio

    Input: Omnidirectional Microphone
    Output: Embedded Speaker
    Two-way Talk

  • Audio Compression

    G.711

  • Alarm

    Input: Six (6) Channels

  • Memory

    Micro SD, 32GB maximum

Network

Jump to...

  • Video Compression

    H.264

  • Ethernet

    10/100 Mbps, Self-adaptive

  • Network Protocol

    TCP/IP

  • Third-party Camera Support

    ONVIF H.264 Cameras, maximum resolution of 720p

  • Management Software

    DSS Express/Pro

Certifications

Jump to...

  • Electromagnetic Compatibility (EMC)

    FCC CFR 47 Part 15 subpart B
    ANSI C63.4 - 2009
    EN 55022:2010, EN 55024:2010, EN 50130-4:2011,
    EN 61000-6-3:2007, EN 61000-3-2:2006+A1:2009
    EN 61000-3-3:2008, IEC 61000-4-2:2008,
    IEC 61000-4-3:2010, IEC 61000-4-4:2012,
    IEC 61000-4-5:2005, IEC 61000-4-6:2008,
    IEC 61000-4-8:2009, IEC 61000-4-11:2004

Electrical

Jump to...

  • Power

    The VTNC3000A is used to provide both network signal and power to the DHI-VTH1550CHW-2-S

  • Power Consumption

    Standby: <= 1.5 W
    Operation: <= 7.0 W

Environmental

Jump to...

  • Operating Temperature

    -10 to 55 deg. C (14 to 131 deg. F)

  • Operating Humidity

    10% to 90%, Relative

Construction

Jump to...

  • Installation

    Surface-mount

General

Jump to...

  • Dimensions

    200.45 x 136.50 x 22.0mm (7.89 x 5.37 x 0.87")

  • Weight

    0.80kg (1.76 lbs)

Other

Jump to...

  • UPC Code

    819290023923

About Dahua DHI-VTH1550CHW-2-S

The DHI-VTH1550CHW-2-S indoor monitor allow tenants to view and talk with visitors, record call sessions, monitor the surroundings from outdoor stations and IP cameras and remotely unlock doors. Visitors can also leave messages, which can be retrieved from the indoor monitor or remotely using the iDMSS or gDMSS app. The DHI-VTH1550CHW-2-S indoor monitor is used as part of a video intercom solution with compatible outdoor stations.

SIP Compatibility
Dahua Intercom devices are compatible with the Session Initiation Protocol version 2.0 (SIP), a signaling protocol for Internet conferencing, telephony, presence, event notification and instant messaging. SIP is widely used to initiate and terminate Voice Over Internet Protocol (VOIP) calls, as well as connect physical devices to mobile applications. Dahua Intercom devices are ideal for single-family homes as well as large residential complexes or commercial properties.

Dahua DHI-VTH1550CHW-2-S Features

  • 7-inch Capacitive Touch Screen, 800 x 480 Resolution
  • Simplified Connection and Setup to Compatible Outdoor Stations
  • Integrate with Existing Two-wire Cabling
  • Supports Alarm Integration with 3rd Party Intrusion Devices
  • Monitor up to 32 IP Cameras
  • Integrated Micro SD Card Slot, maximum 32 GB
  • Perform Call Session Recordings and Take Snapshots of Live Video (requires SD card)
  • Setup and Activate up to Six (6) Alarm Inputs
  • Surface-mounted

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Dahua DHI-VTH1550CHW-2-S 7 " WVGA Touchscreen IP Color Indoor Video Intercom Monitor
  • Dahua 3 Year Limited Warranty
