Dahua 22204UENI 2MP Starlight Indoor/Outdoor Day & Night Mini PTZ Dome Network Camera, 4x Optical Zoom, 1920x1080, 30fps, Vandal Resistance, PoE

SKU: DA22204UENI

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Dahua 22204UENI Specifications

Camera
  • Image Sensor

    1/2.8" STARVIS CMOS Sensor

  • Effective Pixels

    1920(H) x 1080(V), 2 MP

  • RAM/ROM

    256MB / 128 MB

  • Scanning System

    Progressive

  • Electronic Shutter Speed

    1/1 s to 1/30,000 s

  • Minimum Illumination

    Color: 0.005 lux at F1.6
    B/W: 0.0005 lux at F1.6

  • Focal Length

    2.7 mm to 11 mm

  • Maximum Aperture

    F1.6

  • Angle of View

    Horizontal: 30 deg. to 112.5 deg.
    Vertical: 20 deg. to 57 deg.
    Diagonal: 40 deg. to 133 deg.

  • Optical Zoom

    4x

  • Focus Control

    Auto, Manual

  • Close Focus Distance

    100 mm to 1000 mm (3.94 in. to 39.37 in.)

  • Iris

    Automatic

DORI Distance

Jump to...
  • DORI Distance

    Detect (8 ppf): 124m (407')
    Observe (19 ppf): 50m (163')
    Recognize (38 ppf): 25m (81')
    Identify (76 ppf): 12m (40')

  • Pan/Tilt Range

    Pan: 0 deg. to 355 deg.
    Tilt: 0 deg. to 90 deg.

  • Manual Control Speed

    Pan: 0.1 deg. to 100 deg. /s
    Tilt: 0.1 deg. to 60 deg. /s

  • Preset Speed

    Pan: 100 deg. /s
    Tilt: 60 deg. /s

  • Presets

    300

  • PTZ Mode

    8 Tours (up to 32 presets per tour)

  • Speed Compensation

    Proportional Pan/Tilt Speed to Zoom Ratio

  • Power up Action

    Auto restore to previous PTZ and lens status after power failure

  • Idle Motion

    Activate Preset, Scan, Tour, Pattern if there is no command in the specified period

  • Protocol

    DH-SD

  • Compression

    H.265, H.264, MJPEG (sub-stream only)

  • Streaming Capability

    Three (3) Streams

  • Resolution

    1080p (1920 x 1080), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240)

  • Frame Rate

    Main Stream: 1080p, 720p, or D1 at 30 fps
    Sub Stream 1: D1 or CIF at 30 fps
    Sub Stream 2: 1080p, 720p, D1, or CIF at 30 fps

  • Bit Rate Control

    CBR, VBR

  • Bit Rate

    H.265/H.264: 448 K to 8192 Kbps
    MJPEG: 5120 Kbps to 10240 Kbps

  • Day/Night

    Auto (ICR), Color, B/W

  • Backlight Compensation

    BLC, HLC, True WDR (120 dB)

  • White Balance

    Auto, ATW, Indoor, Outdoor, Manual

  • Gain Control

    Auto, Manual

  • Noise Reduction

    Ultra DNR (2D/3D)

  • Advanced Functions

    Motion Detection, Region of Interest, Defog

  • Digital Zoom

    16x

  • Flip

    180 deg.

  • Privacy Masking

    Up to 24 areas

Network

Jump to...
  • Ethernet

    RJ-45 (10 Base-T/100 Base-TX)

  • Protocol

    IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x

  • Interoperability

    ONVIF Profile S and G, API

  • Streaming Method

    Unicast / Multicast

  • Maximum User Access

    20 Users

  • Edge Storage

    Network Attached Storage (NAS)
    Local PC for Instant Recording
    Micro SD Card Slot, maximum 128 GB

  • Web Viewer

    IE, Firefox, Safari

  • Management Software

    Smart PSS, DSS, DMSS

  • Mobile Operating System

    IOS, Android

Certifications

Jump to...
  • CE

    EN 55032
    EN 55024
    EN 50130-4

  • UL

    UL 60950-1 + CAN/CSA C22.2, No.60950-1

  • Electromagnetic Compatibility (EMC)

    CFR 47 FCC Part 15 Subpart B
    ANSI C63.4-2014

Electrical

Jump to...
  • Power Supply

    12 VDC, 1.5 A or PoE (802.3af Class 0)

  • Power Consumption

    5.5 W

Environmental

Jump to...
  • Operating Conditions

    -30 to 60 deg. C (-22 to 140 deg. F)
    Less than 95% RH

  • Ingress Protection

    IP66

  • Vandal Resistance

    IK10

General

Jump to...
  • Intelligence

    IVS triggers an alarm and takes a defined action for the following events:

    Standard Features:
    Tampering with the camera
    Error writing to an onboard Micro SD card
    Error sending or receiving data over the network
    Unauthorized access to the camera

    Premium Features:
    Motion: An object moves through any part of the scene

  • Casing

    Metal

  • Dimensions

    122.0 x 89.0mm (4.80 x 3.50")

  • Weight

    0.52kg (1.15 lbs)

About Dahua 22204UENI

The 2 MP Starlight Mini PTZ Dome camera features a 1/2.8-in. STARVIS CMOS imager with a 4x optical zoom lens and provides an all in one solution for capturing video surveillance for indoor and outdoor applications. The camera uses the H.265 video compression standard to improve encoding efficiency while preserving high-quality video. The PTZ camera is equipped with quick and accurate pan/tilt/zoom control and True Wide Dynamic Range for applications with direct sunlight or glare.

Starlight Technology
For challenging low-light applications, Dahua's Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing color details in low light down to 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.

Intelligent Video System
IVS is a built-in video analytic algorithm that delivers intelligent functions to monitor a scene for video anomalies. A camera with IVS quickly and accurately responds to monitoring events in a specific area. In addition to scene analytics, the camera offers tamper detection by recognizing a dramatic scene change and generating a warning message to inspect the camera.

Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

High Efficiency Video Coding (H.265)
The H.265 (ITU-T VCEG) video compression standard offers double the data compression ratio at the same level of video quality or substantially improved video quality at the same bit rate, as compared to older video compression technologies. H.265 offers such impressive compression by expanding the pattern comparison and difference-coding, improving motion vector prediction and motion region merging and incorporating an additional filtering step called sample-adaptive offset filtering.

Interoperability
The camera conforms to the ONVIF (Open Network Video Interface Forum) and to the PSIA (Physical Security Interoperability Alliance) specifications, ensuring interoperability between network video products regardless of manufacturer.

Environmental
With a temperature range of -30 deg. C to +60 deg. C (-22 deg. F to 140 deg. F), the camera is designed for extreme temperature environments. The camera complies with an IK10 vandal resistance rating making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in.). Subjected and certified to rigorous dust and water immersion tests, the IP66 rating makes it suitable for demanding outdoor applications.

Dahua 22204UENI Features

  • 1/2.8-in. 2MP STARVIS CMOS Sensor
  • 1080p at 30 fps Maximum Resolution
  • H.265 and H.264 Dual Codecs
  • 2.7 mm to 11 mm, 4x Optical Zoom
  • Triple-stream Encoding
  • Starlight Technology for Ultra-low Light Sensitivity
  • True Wide Dynamic Range (120 dB)
  • Intelligent Video System (IVS)
  • IP66 Ingress Protection and IK10 Vandal Resistance
  • PoE Support
  • Five-year Warranty

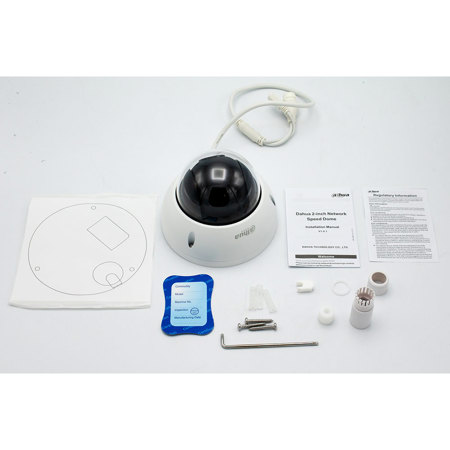

What's in the box:

  • Dahua 22204UENI 2MP Starlight Indoor/Outdoor Day & Night Mini PTZ Dome Network Camera
  • Dahua 5 Year Warranty
