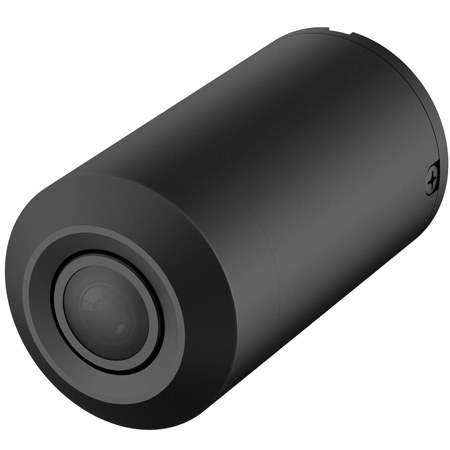

Dahua IPC-HUM8431-L3 4MP Covert Network Pinhole Camera with 2.8mm Lens
See all dahua items

Dahua IPC-HUM8431-L3 4MP Covert Network Pinhole Camera with 2.8mm Lens

SKU: DAHUM8431L3
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Dahua IPC-HUM8431-L3 Specifications

Camera

Camera

Jump to...

  • Image Sensor

    1/2.7" 4 MP Progressive-scan CMOS

  • Effective Pixels

    2688(H) x 1520(V)

  • Scanning System

    Progressive

  • Electronic Shutter Speed

    Auto, Manual; 1/3 s to 1/100000 s

  • Minimum Illumination

    Color: 0.006 lux at F1.8 (1/3 s, 30 IRE)
    Color: 0.04 lux at F1.8 (1/30 s, 30 IRE)
    B/W: 0.003 lux at F1.8 (1/3 s, 30 IRE)
    B/W: 0.02 lux at F1.8 (1/30 s, 30 IRE)

Lens

Jump to...

  • Lens Type

    Fixed

  • Mount Type

    Board-in

  • Focal Length

    2.8 mm

  • Maximum Aperture

    F1.8

  • Angle of View

    Horizontal: 109deg.
    Vertical: 60deg.

  • Focus Control

    Fixed

  • DORI Distance

    Detect (8 ppf): 56m (183')
    Observe (19 ppf): 22m (72')
    Recognize (38 ppf): 11m (36')
    Identify (76 ppf): 5m (16')

Electrical

Jump to...

  • Power Supply

    Via DH-IPC-HUM8431N-E1

Certifications

Jump to...

  • Safety

    UL60950-1
    EN 60950:2000

  • Electromagnetic Compatibility

    FCC CFR 47 Part 15 Subpart B

Environmental

Jump to...

  • Operating Conditions

    -30 to 60 deg. C (-22 to 140 deg. F), Less than 95% RH

  • Storage Conditions

    -30 to 60 deg. C (-22 to 140 deg. F), Less than 95% RH

  • Ingress Protection

    IP67

General

Jump to...

  • Casing

    Metal

  • Dimensions

    Dia. 30.50 x 57.59mm (Dia. 1.20 x 2.27")

  • Weight

    0.84 lbs (0.38kg)

Other

Jump to...

  • UPC Code

    819290024937

About Dahua IPC-HUM8431-L3

The Dahua IPC-HUM8431-L3 is the camera/lens unit for the Network Pinhole Camera system. This camera features a 4 MP progressive-scan CMOS sensor and 2.8 mm fixed lens. The IPC-HUM8431-L3 offers clear images in difficult lighting conditions thanks to its light sensitivity and True Wide Dynamic Range. This camera in conjunction with the DH-IPCHUM8431N-E1 processing unit delivers a covert camera system suitable for banks, offices and any application that requires discrete video surveillance.

Dahua IPC-HUM8431-L3 Features

  • 1/2.7" 4 MP Progressive-scan CMOS Sensor
  • 2.8 mm Fixed Lens
  • True Wide Dynamic Range (120 dB)
  • Electronic Day/Night Filter

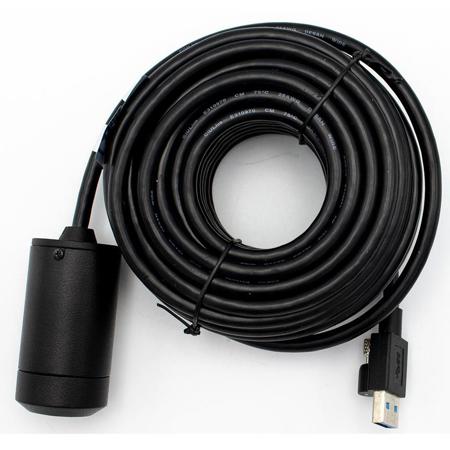

  • 8m (26.25') Cable
  • IP67 Ingress Protection
  • Requires DH-IPC-HUM8431N-E1 Covert Network Pinhole Processing Unit
  • Five-year Warranty

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Dahua IPC-HUM8431-L3 4MP Covert Network Pinhole Camera with 2.8mm Lens
  • Sensor with 8m Cable
  • Wall/Ceiling Pedestal
  • Locking Ring
  • 3x Screws
  • Installation Position Map
  • Quick Start Guide
  • Dahua 5 Year Warranty
