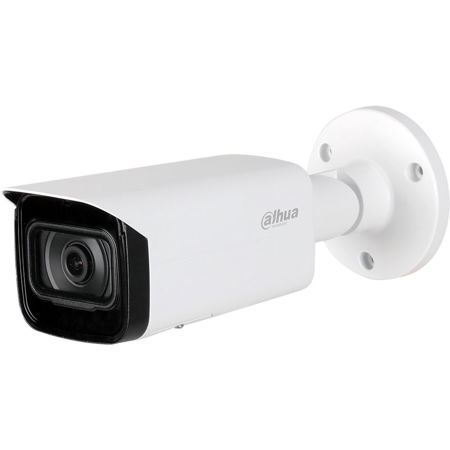

Dahua Pro Series N45EF63 4MP Outdoor Day & Night ePoE Network Bullet Camera with Night Color Technology, 3.6mm Lens, 2688x1520, 30fps, White

SKU: DAN45EF63

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Dahua N45EF63 Specifications

Camera
  • Image Sensor

    1/1.8" 4 MP Progressive-scan CMOS

  • Effective Pixels

    2688(H) x 1520(V)

  • RAM/ROM

    512 MB/128 MB

  • Scanning System

    Progressive

  • Electronic Shutter Speed

    Auto, Manual, 1/3 s to 1/100,000 s

  • Minimum Illumination

    Color: 0.00022 lux at F1.2 (1/3 s, 30 IRE)
    Color: 0.0022 lux at F1.2 (1/30 s, 30 IRE)

  • S/N Ratio

    Greater than 56 dB

  • Lens Type

    Fixed

  • Mount Type

    Board-in

  • Focal Length

    3.6 mm

  • Maximum Aperture

    F1.2

  • Angle of View

    Horizontal: 93deg.
    Vertical: 50deg.

  • Focus Control

    Fixed

  • Close Focus Distance

    2.0m (6.56')

DORI Distance

Jump to...
  • 3.6mm Lens

    Detect (8 ppf): 70.30m (230')
    Observe (19 ppf): 28.10m (929')
    Recognize (38 ppf): 14.10m (46')
    Identify (76 ppf): 7.0m (23')

Installation Angle

Jump to...
  • Range

    Pan: 0 to 360deg.
    Tilt: 0 to 90deg.
    Rotation: 0 to 360deg.

  • Compression

    Smart H.265+, H.265, Smart H.264+, H.264, H.264B, H.264H, MJPEG (sub stream only)

  • Streaming Capability

    3 Streams

  • Resolution

    4MP (2688 x 1520), 2560 x 1440, 2304 x 1296, 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240)

  • Frame Rate

    Main Stream: 4 MP (2688 x 1520) at 30 fps
    Sub Stream 1: D1 at 30 fps
    Sub Stream 2: 1080p at 11 fps

  • Bit Rate Control

    CBR/VBR

  • Bit Rate

    H.264: 32 Kbps to 8192 Kbps
    H.265: 19 Kbps to 8192 Kbps

  • Day/Night

    Color, B/W

  • BLC Mode

    BLC, HLC, True WDR (120 dB), SSA

  • White Balance

    Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom

  • Gain Control

    Auto, Manual, Gain Priority, Shutter Priority

  • Noise Reduction

    3D DNR

  • Motion Detection

    Off, On (4 Zones, Rectangular)

  • Region of Interest

    Off, On (4 Zones)

  • Advanced Functions

    Defog

  • Flip

    0deg., 90deg., 180deg., 270deg.

  • Mirror

    Off, On

  • Privacy Masking

    Off, On (4 Areas, Rectangular)

  • Compression

    G.711a, G.711Mu, AAC, G.726, G.723

Network

Jump to...
  • Ethernet

    RJ-45 (10/100 Base-T)

  • Protocol

    HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, ICMP, IGMP, 802.1x

  • Interoperability

    ONVIF Profile S and G, CGI, Milestone, Genetec, P2P

  • Streaming Method

    Unicast / Multicast

  • Maximum User Access

    20 Users

  • Edge Storage

    Network Attached Storage (NAS)
    FTP
    Micro SD Slot, maximum 256 GB

  • Web Viewer

    IE (Version 8 and higher), Chrome, Firefox, Safari (Version 12 and higher)

  • Management Software

    SmartPSS, DSS, P2P

  • Mobile Operating System

    IOS, Android

Interface

Jump to...
  • Audio

    Input: 1x Channel
    Output: 1x Channel

  • Alarm

    Input: 1x Channel (5 mA, 5 VDC)
    Output: 1x Channel (300 mA, 12 VDC)

Electrical

Jump to...
  • Power Supply

    12 VDC +/-30% or PoE (IEEE 802.3af, Class 0)

  • Power Consumption

    12 VDC - Standard: 2.7 W
    PoE - Standard: 3.5 W

Analytics+ Functions

Jump to...
  • Perimeter Protection

    Detects human or vehicle violations using the following methods:
    Tripwire: a target crosses a defined line
    Intrusion: a target enters or exits a defined perimeter

    Monitors a combination of ten (10) detection methods
    Search and retrieve video based on target type

  • People Counting

    Delivers accurate flow statistics from the following methods:
    Line Crossing: counts a person as they cross a threshold in a defined direction
    Region: counts the number of people in a defined area

    Counts people simultaneously from four (4) threshold lines and four (4) defined region

  • Face Capture

    Detects and captures a snapshot of a human face within a scene

IVS: Standard Functions

Jump to...
  • Standard Functions

    Tampering with the camera
    Error writing to an onboard Micro SD card
    Error sending or receiving data over the network
    Unauthorized access to the camera
    IP Address Conflict

IVS: Premium Functions

Jump to...
  • Motion

    An object moves through any part of the scene

  • Scene Change

    A person or object moves the camera to change the scene or covers the camera to obscure the scene

  • Abandoned/Missing Object

    A target leaves an object in designated area, or a target removes an object from the same designated area

Certifications

Jump to...
  • Safety

    UL60950-1
    CAN/CSA C22.2 No.60950-1-07
    EN60950-1

  • Electromagnetic Compatibility

    FCC CFR 47 Part 15 Subpart B
    Electromagnetic Compatibility Directive 2014/30/EU

Environmental

Jump to...
  • Operating Conditions

    -40 to 60 deg. C (-40 to 140 deg. F), 10% to 95% RH

  • Storage Conditions

    -40 to 60 deg. C (-40 to 140 deg. F), 10% to 95% RH (daily temperature difference within 15deg. C/59deg. F )

  • Ingress Protection

    IP67

General

Jump to...
  • Casing

    Metal

  • Dimensions

    244.10 x 79.0 x 75.90mm (9.61 x 3.11 x 2.99")

  • Weight

    1.8 lbs (0.82kg)

  • UPC Code

    816116029923

About Dahua N45EF63

The Dahua 4 MP Night Color ePoE camera offers Analytics+ functions at the edge - performing complex real-time perimeter protection surveillance, people counting and face capture?. The Dahua Analytics+ algorithms significantly improve accuracy and reliability as compared to standard intelligent features. The camera is ideal for a host of diverse applications -Night Color and True Wide Dynamic Range allow the camera to operate in any lighting condition and the IP67 rating makes the camera suitable for the harshest environments.

Perimeter Protection
Dahua Analytics+ includes Tripwire and Intrusion functions that offer custom tripwires based on object type for automation in limited access areas. Perimeter Protection requires less pixels to detect an object to deliver improved accuracy and decreased false alarms due to lights, weather, trees or animals.

People Counting
The camera uses complex real-time people counting algorithms to deliver accurate flow statistics from two distinct people counting functions, Line Crossing and Regional. The line crossing function counts the number of people crossing a defined line and the regional function counts the number of people in a distinct, user-defined area. People counting is ideal for measuring the number of customers entering or exiting a location and to monitor groups of people in a distinct location.

Night Color Technology
Dahua cameras with Night Color Technology incorporate a high-performance sensor and a large aperture lens to produce crisp, clear color images in low light environments. This light-sensitive technology allows the camera to capture more available light and reproduce color images with superior detail and contrast. Dahua Night Color Technology cameras are ideal for applications with at least 1 lux of ambient or artificial light, including parking lots, schools, urban streets and museums.

Face Capture
Dahua Analytics+ with Face Capture technology automatically captures faces from a digital image or from a video frame. The camera employs advanced algorithms to locate faces quickly and accurately from the source video and then captures the facial image.

Enhanced Power over Ethernet (ePoE) Technology
Dahua's innovative ePoE technology offers a plug-and-play solution to transmit power and data over long distances via Ethernet or coaxial cables, reducing installation time and saving money. ePoE technology is a viable, cost-effective solution for extending transmission distances and for converting existing, coax-based analog systems into IP systems. For video security and surveillance installers, ePoE technology saves time and money by reducing overall cabling requirements, allowing for existing coax cable to be used and minimizing the number of peripheral devices needed.

For new installations, ePoE offers the ability to design long-distance applications without the need for additional repeaters.

True Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

ArcticPro
The Dahua ArcticPro Series of extreme-environment cameras combine temperature-tolerant components with a waterproof enclosure to ensure flawless operation in temperatures as low as -40deg. C (-40deg. F) without the need for an internal heater. The lack of a heater reduces the camera's power consumption and saves operating costs. For applications that demand high-resolution video with advanced features in extremely cold environments, the Dahua ArcticPro Series offers a camera to satisfy the most demanding requirements.

Environmental
Subjected to rigorous dust and water immersion tests and certified to the IP67 Ingress Protection rating makes it suitable for demanding outdoor applications.

Dahua N45EF63 Features

  • 1/1.8" 4MP Progressive-scan CMOS Sensor
  • Triple-stream Encoding
  • Smart H.265+ and Smart H.264+ Dual Codec
  • 4 MP (2688 x 1520) at 30 fps, 3.6 mm Fixed Lens
  • Enhanced Power and Data Transmission Distances (ePoE)
  • Night Color Technology for Color Images in near-dark Applications
  • Analytics+ Functions - People Counting, Perimeter Protection and Face Capture
  • ArcticPro Series Camera - Operational down to -40deg. C (-40deg. F)
  • IP67 Ingress Protection
  • True Wide Dynamic Range (120 dB)
  • Intelligent Video System
  • Five-year Warranty

What's in the box:

  • Dahua Pro Series N45EF63 4MP Outdoor Day & Night ePoE Network Bullet Camera
  • Screw Pack
  • Waterproof Connector
  • Installation Position Map
  • Quick Start Guide
  • CD-ROM/QR Code
  • Dahua 5 Year Warranty
