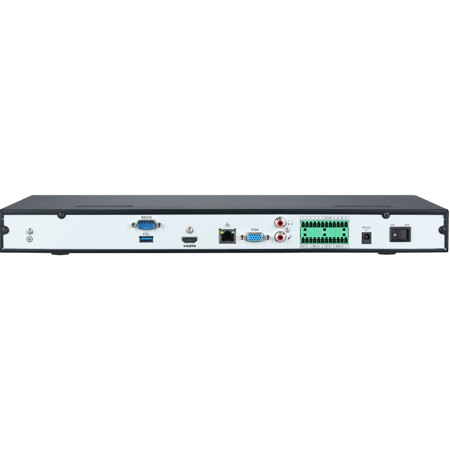

Dahua NVD0105DH Ultra-HD Network Video Decoder
See all dahua items

Dahua NVD0105DH Ultra-HD Network Video Decoder

SKU: DANVD105DH4K
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Dahua NVD0105D Specifications

System

System

Jump to...

  • Main Processor

    Intel x86 Processor

  • Operating System

    Embedded LINUX

Performance

Jump to...

  • Video Compression

    Smart H.265+ H.265, H.264, MPEG4, MJPEG

  • Audio Compression

    PCM, G711

  • Decoding Resolution

    12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p, 960H, D1, HD1, 2CIF, CIF, QCIF

  • Video Decoding

    3 channels of 12 MP at 25 fps
    4 channels of 8 MP at 30 fps
    6 channels of 6 MP at 25 fps
    8 channels of 5 MP at 25 fps
    9 channels of 4 MP at 25 fps
    10 channels of 3 MP at 30 fps
    12 channels of 3 MP at 25 fps
    16 channels at 1080P
    36 channels at 720P
    64 channels at D1

  • Video Output

    HDMI or VGA

  • Display Resolution

    3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768

  • Audio Output

    HDMI

  • Communication Interface

    1x RJ45 Network Port (10/100/1000 Mbps), Self-adaptive
    1x RS232 Port (DB9)

  • Bi-directional Talk

    Input: 1xChannel, RCA
    Output: 1xChannel, RCA
    (2 Vrms, 10kOhms)

  • Alarms

    Input: 4x Channels
    Output: 4x Relays (30 VDC 1 A, 125 VAC, 0.5 A)

Power

Jump to...

  • Power Supply

    12 VDC, 3.3 A

  • Power Consumption

    <=20 W

General

Jump to...

  • Working Temperature

    -10 to 55 deg. C (14 to 131 deg. F)

  • Working Humidity

    10% to 90%, 86 Kpa to 106 Kpa

  • Rack Height

    1U

  • Dimensions

    440.0 x 322.80 x 44.0mm (17.32 x 12.71 x 1.73")

  • Weight

    3.2kg (7.05 lbs)

About Dahua NVD0105D

The NVD0105DH is a network video decoder that allows customers to easily route IP video from cameras to a video wall without the need of a PC or NVR. Perfect for small to medium scale deployments where display and control is required.

Dahua NVD0105D Features

  • Designed for Standalone Operator Viewers
  • Smart H.265+, H.265, H.264, MPEG4, MJPEG Video Decoding
  • Ultra-high Decoding Capability, up to 12 MP on Three (3) Channels
  • HDMI/VGA Output; HDMI Supports 4K Output
  • Supports 1/4/9/16/25/36/64 Split-screen Display
  • Audio, Alarm, Bi-directional Talk and RS485 Interfaces
  • Displays Intelligent Regular Line

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Dahua NVD0105DH Ultra-HD Network Video Decoder
  • Ethernet Cable (RJ45 Connectors)
  • 2x Alarm I/O RS485 Terminal Connector with Screws
  • 2x Rack Mount Ears
  • Quick Start Guide
  • Dahua 5 Year Limited Warranty
