This item is no longer available.

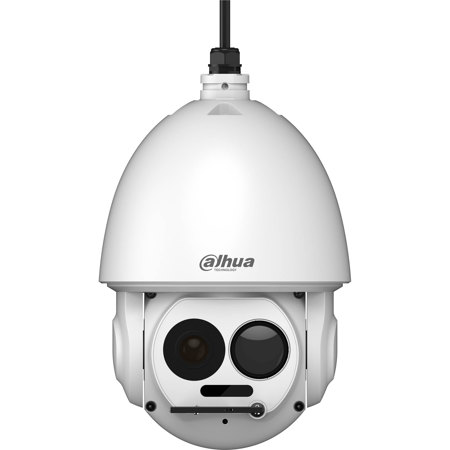

The Hybrid Thermal Network PTZ camera combines an uncooled VOx 400 x 300 thermal imager with a 2 MP visible-light sensor for cost-effective, long-range surveillance in a rugged all-in-one package. The thermal imager coupled with an a thermalized, focus-free lens produces crisp images in total darkness and sees through rain, fog and snow. The visible imager with a 30x zoom lens and IR illuminators delivers superior video in any lighting condition. The built-in Fire Detection feature identifies a rapid temperature rise and warns of a potential fire. Hybrid thermal cameras let you see the visible and the invisible.
Thermal Camera
• 400 x 300 VOx Uncooled Thermal Sensor Technology
• A thermalized Lens, Focus-free
• 25 mm or 50 mm Fixed Thermal Lens Options
• < 40 mK Thermal Sensitivity
Visible-light Camera
• 1/1.9-in. 2MP Progressive-scan CMOS Sensor
• Powerful 30x Optical Zoom Lens
• Starlight+ Technology
System Features
• Intelligent Video System with Fire Detection and Alarm Functionality
• Designed for Extreme Temperature Environments
• IP66 Ingress Protection
• Five-year Warranty
Functions
Uncooled Vanadium Oxide (VOx) Technology
Dahua thermal cameras use an uncooled Vanadium Oxide (VOx)sensor that delivers higher thermal sensitivity in a more compact and cost-effective package. Vanadium Oxide cameras are also more reliable, as compared to other thermal imaging technologies, due to less moving parts.
A thermalized Lens
The a thermalized lens used in Dahua thermal cameras maintains the focus position passively and without power over a wide temperature range.
High Thermal Sensitivity
The VOx detector offers high thermal sensitivity (< 40 mK) that allows Dahua thermal cameras to distinguish objects in a scene with minimal temperature differences. The camera captures detailed images where thermal contrast between object and background is minimal.
Thermal Color Palettes
Dahua thermal cameras provide a choice of color palettes onboard the camera that help to distinguish thermal variations and patterns in an image. The color tones correspond to the apparent surface temperatures of the target.
Fire Detection and Alarm
With built-in fire detection functionality, the camera can detect a rapid rise in temperature over a short time and issue an alarm for a potential fire event even at long distances. Because thermal cameras are sensitive to temperature, they provide higher fire detection accuracy than standard cameras, making them particularly fit for applications such as forest fire prevention.
Starlight+ Technology
For challenging low-light applications, Dahua's Starlight Technology offers best-in-class light sensitivity, capturing details in low light applications. The visible light camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.
Intelligent Video System (IVS)
IVS is a built-in video analytic algorithm that delivers intelligent functions to monitor a scene for Tripwire violations, intrusion detection and abandoned or missing objects. A camera with IVS quickly and accurately responds to monitoring events in a specific area.
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface Forum) and to the PSIA (Physical Security Interoperability Alliance)specifications, ensuring interoperability between network video products regardless of manufacturer.
Environmental
With a temperature range of -40 deg. C to +70 deg. C (-40 deg. F to +158 deg. F), the camera is designed for extreme temperature environments. The camera complies with the IP66 rating makes it suitable for demanding outdoor applications.
Protection
The camera allows for +/-15% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 6 KV lightning rating provides effective protection for both the camera and its structure against lightning.
