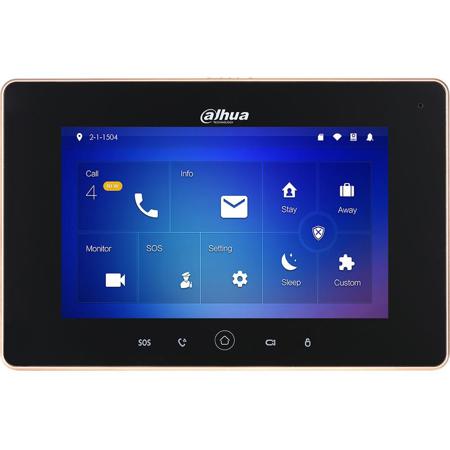

Dahua DHI-VTH5221-S 7" WVGA Touch Screen Wi-Fi Color Indoor LCD Monitor, Black
See all dahua items

Dahua DHI-VTH5221-S 7" WVGA Touch Screen Wi-Fi Color Indoor LCD Monitor with Built-In Speaker, 1024x600, SIP Firmware, Black

SKU: DAVTH5221DS
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Dahua DHI-VTH5221-S Specifications

System

System

Jump to...

  • Main Processor

    Embedded Micro Processor

  • Operating System

    Embedded Linux

Display

Jump to...

  • Viewing Area

    7" TFT, Capacitive

  • Resolution

    1024 x 600 (WVGA)

  • Input

    Touchscreen Display

Interface

Jump to...

  • Audio

    Input: Omnidirectional Microphone
    Output: Built-in Speaker
    Two-way Talk

  • Audio Compression

    G.711

  • Wired Zones

    Six On-board Zones

  • Wireless Zones

    Eight

  • Alarm Out

    One Channel

  • RS485

    One Port

  • Memory

    Micro SD Slot, 32GB maximum

Network

Jump to...

  • Video Compression

    H.264

  • Wi-Fi

    IEEE 802.11b/g/n

  • Ethernet

    10/100 Mbps, Self-adaptive

  • Network Protocol

    TCP/IP

  • Third-party Camera Support

    ONVIF H.264 Cameras, maximum resolution of 720p

  • Management Software

    DSS Express/Pro

Certifications

Jump to...

  • Electromagnetic Compatibility

    FCC CFR 47 Part 15 subpart B
    ANSI C63.4 - 2009
    EN 55022:2010, EN 55024:2010, EN 50130-4:2011,
    EN 61000-6-3:2007, EN 61000-3-2:2006+A1:2009
    EN 61000-3-3:2008, IEC 61000-4-2:2008,
    IEC 61000-4-3:2010, IEC 61000-4-4:2012,
    IEC 61000-4-5:2005, IEC 61000-4-6:2008,
    IEC 61000-4-8:2009, IEC 61000-4-11:2004

Electrical

Jump to...

  • Power

    12 VDC or PoE (802.3af)
    Requires a separate 12 VDC power supply, or power via a PoE switch

  • Power Consumption

    Standby: < 5 W
    Operation: < 7 W

Environmental

Jump to...

  • Operating Temperature

    -10 to 55 deg. C (14 to 131 deg. F)

  • Operating Humidity

    10% to 90%, Relative

General

Jump to...

  • Installation

    Surface-mount

  • Dimensions

    215.0 x 140.0 x 21.0mm (8.46 x 5.51 x 0.83")

  • Weight

    1.76 lbs (0.80kg)

Other

Jump to...

  • UPC Code

    819290023947

About Dahua DHI-VTH5221-S

The DHI-VTH5221-S Series indoor monitors allow tenants to view and talk with visitors, record call sessions, monitor the surroundings from outdoor stations and IP cameras and remotely unlock doors. Visitors can also leave messages, which can be retrieved from the indoor monitor. The DHI-VTH5221-S Series indoor monitors are used as part of a video intercom solution with compatible outdoor stations.

SIP Compatibility
Dahua Intercom devices are compatible with the Session Initiation Protocol version 2.0 (SIP), a signaling protocol for Internet conferencing, telephony, presence, event notification and instant messaging. SIP is widely used to initiate and terminate Voice Over Internet Protocol (VOIP) calls, as well as connect physical devices to mobile applications. Dahua Intercom devices are ideal for single-family homes as well as large residential complexes or commercial properties.

Dahua DHI-VTH5221-S Features

  • 7-inch Capacitive Touch Screen, 1024 x 600 Resolution
  • Simplified Connection and Setup
  • Supports Alarm Integration with 3rd Party Intrusion Devices
  • Monitor up to 32 IP Cameras
  • Integrated Micro SD Card Slot, maximum 32 GB
  • Perform Call Session Recordings and Take Snapshots of Live Video (requires SD card)
  • Wi-Fi-enabled and PoE Power Supply
  • Setup and Activate up to Six Alarm Inputs and One Alarm Output
  • Surface-mounted

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Dahua 7 " WVGA Touch Screen Wi-Fi Color Indoor LCD Monitor
  • 4GB microSD Card
  • Dahua 3 Year Limited Warranty
