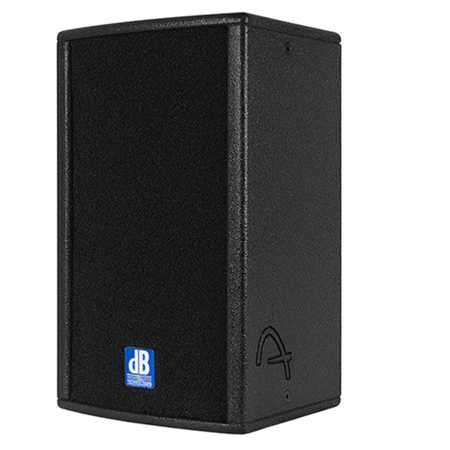

dB Technologies ARENA 10 10" 2-Way Passive Speaker with 2" Voice Coil, 600W Program Power, 95-19000Hz Frequency Response, 8 Ohms Impedance, 125dB Max SPL, Single

SKU: DBTARENA10 MFR: ARENA 10
Earn VIP Reward Points

Key Features

  • Experience powerful sound with this 600W dB Technologies passive PA speaker.
  • Achieve crystal-clear audio with a frequency response of 95-19000 Hz PA speakers.
  • Enjoy versatile setup options with the ARENA 10's pole mount and rigging points.
  • Perfect for live sound, this PA speaker delivers up to 125dB max SPL.
  • Durable birch plywood housing ensures your PA system withstands frequent use.
  • Easily connect your audio setup with Speakon inputs/outputs on this PA speaker.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

dB Technologies ARENA 10 Specifications

  • Speaker Type

    2-Way Passive Speaker

  • Nominal Power Rating

    300 W/RMS

  • Program Power Rating

    600 W

  • Impedance

    8 Ohms

  • Frequency Response [+/- 3dB]

    95 - 19000 Hz

  • Max SPL

    125 dB

  • HF

    1"

  • Driver Protection

    PTC

  • Directivity

    90x70 deg.

  • Horn

    CD Horn

  • Rotatable Horn

    YES

  • Crossover Frequency (passive)

    2100 Hz

  • LF

    10"

  • Voice Coil LF

    2"

  • Signal Input

    1x Speakon (Pin 1+=+) (Pin 1-=-)

  • Signal Output

    1x Speakon (Pin 1+=+) (Pin 1-=-)

  • Housing

    Multiplex birch plywood

  • Pole mount

    36mm

  • Angles Up

    Monitor use 45 deg.

  • Rigging Points

    12 x M8

  • Dimensions (W x H x D)

    12.84 x 20.32 x 12.8" / 326.14 x 516.13 x 325.12mm

  • Weight

    26.9lbs / 12.20kg

About dB Technologies ARENA 10

A high-performance audio solution, the dB Technologies ARENA 10 10" 2-Way Passive Speaker is engineered for superior sound quality and power. This professional-grade speaker features a robust 10" woofer and a 1" driver, both designed to handle an impressive 600W program power. The 1" driver is equipped with a rotatable 90-degree x 70-degree constant directivity horn, ensuring optimal sound dispersion for any setting.

With a remarkable maximum sound pressure level (SPL) of 125dB, the ARENA 10 is capable of delivering high-volume sound without any distortion. This makes it an ideal choice for large venues and outdoor events where powerful sound projection is paramount.

The ARENA 10's frequency response ranges from 95-19000Hz, providing a broad spectrum of sound reproduction to cater to diverse audio requirements. This speaker can function as a standalone full-range enclosure, offering reduced low-frequency reproduction for a balanced sound profile. Alternatively, it can be paired with the ARENA SW15 subwoofer for enhanced bass output.

Boasting an 8 Ohms impedance and a 2" voice coil, the ARENA 10 is compatible with a wide array of amplifiers and sound systems. Its extensive configuration options and superior sound performance make it a versatile addition to any professional audio setup.

In conclusion, the dB Technologies ARENA 10 10" 2-Way Passive Speaker is not just another speaker; it's a testament to high-quality, powerful, and reliable audio equipment. Whether you're hosting live performances, events, or need a robust sound system, the ARENA 10 stands out as a top-tier choice.

dB Technologies ARENA 10 Features

  • 8 modules (2 m array) connected to one 16A phase place just 125 kg load on the pick-point
  • Fully powered units, freely scalable to setups of any size
  • Lossless signal path with no need for speaker cables
  • None of the impedance and amp channel availability concerns associated with passive models
  • Sequentially configurable array segments
  • Digital controller (DSP) onboard for utmost operating safety

Key Features

  • Experience powerful sound with this 600W dB Technologies passive PA speaker.
  • Achieve crystal-clear audio with a frequency response of 95-19000 Hz PA speakers.
  • Enjoy versatile setup options with the ARENA 10's pole mount and rigging points.
  • Perfect for live sound, this PA speaker delivers up to 125dB max SPL.
  • Durable birch plywood housing ensures your PA system withstands frequent use.
  • Easily connect your audio setup with Speakon inputs/outputs on this PA speaker.

What's in the box:

  • dB Technologies ARENA 10 10 " 2-Way Passive Speaker with 2 " Voice Coil
  • dB Technologies 2 Year Warranty
