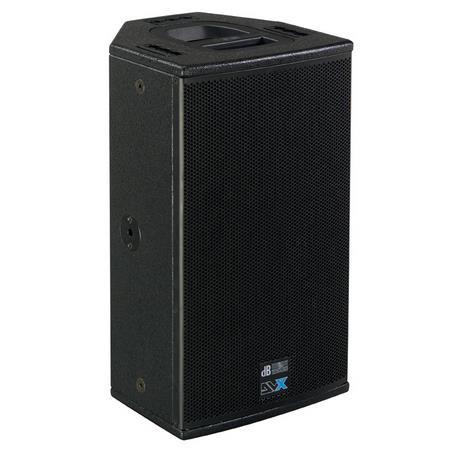

dB Technologies DVXD10HP 1200W Peak Power 10" Class-D 2-Way Active Speaker, 70-20000Hz Frequency Response at -10dB, Single

The dB Technologies DVX D10 HP is an active 10"/1" two-way speaker cabinet perfect for use in music and speech reinforcement applications demanding true frequency response, balanced dynamic response and assertive sound pressure levels. Equipped with a high-quality 10" woofer and a 1" compression driver with rotatable CD horn, the DVX D10 HP is fullrange enabled and can be deployed for many applications without an added subwoofer. The housing's multifunctional design incorporates a slanted panel for monitoring, rigging points and even a special monitor setup controlled by the onboard DSP, which also acts as a controller, providing active equalizer, x-over, limiter and phase and time alignment functions. Combining the DVX D10 with a DVA series subwoofer creates remarkably powerful yet compact satellite systems.

The speakers of DVX HP series use cutting edge digital amplifiers of the DIGIPRO G2 series, providing with different powers 800W, 1200W and 1400W, to meet the requirements of any kind of application. These highly efficient amplifiers provide high power with limited weight and dimension. Thanks to the low power dissipated, the cooling of the amplifier module does not require a fan. The digital preamplifier with DSP (Digital Signal Processing) controls the audio crossover of the acoustic components, the frequency response, the limiter and the acoustic phase alignment. A selector enables to select one of two different equalizations - "FULL RANGE" or "STAGE MONITOR" - to provide high versatility for the different applications. The amplifiers DIGIPRO G2 use power supplies featuring SMPS (Switched-Mode Power Supplies) technology. This technology increases power supply efficiency and minimizes its weight.

The D10 HP bi-amped active speaker is equipped with a DIGIPRO G2 amplifier delivering 1200W. D10 HP is a bi-amped active speaker features a woofer 10" (voice coil 2, 5") and a compression driver 1" (voice coil 1, 75") on a 90 Degree x 70 Degree aluminum CD- horn. The speakers' horizontal directivity is 90 Degree by default factory setting. The speaker is made of 12mm birch ply wood, the one top handle in aluminum, the 6 flytracks, the 6 M10 threads and the 2 flypins located on the sides and the back of the speaker are enabling easy transport and installation. The speaker has been designed to be used also as stage monitor (45 Degree angle). By rotating the horn you can maintain the same coverage angle also when the speaker is used as monitor. In the bottom of the box there is a standard pole mount cup (D36mm) made of aluminum.
