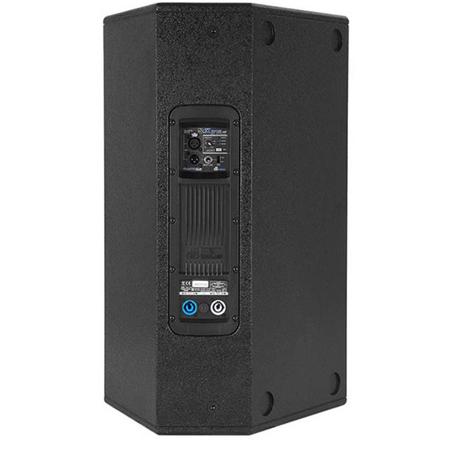

dB Technologies DVXD15HP 1400W 15" 2-Way Active Speaker, 49-20000Hz Frequency Response at -10dB, Single

A two-way system featuring 15"/1.4" speakers, the DVX D15 HP is the enclosure of choice for use as a fullrange FOH speaker or a powerful drum monitor. It delivers punchy, assertive bass response without requiring an added subwoofer. Its integrated, high-performance digipro G2 digital power amp delivers very high sound pressure levels, exceedingly dynamic response and tight, clean low-end response. Loaded with high quality speakers, it provides premium audio performance with maximum reliability and minimum power compression. A 1.4" driver with a 2.5" voice coil designed to handle highest loads renders vocals with a powerful, assertive punch, easily throwing signals across medium-to-longer distances. The housing's multifunctional design incorporates rigging points and a slanted panel serving monitoring purposes. The onboard controller even provides a special monitor setup that specifically adapts the enclosure's performance for use as a monitor. It also serves as a controller for an active equalizer, x-over, limiter and phase and delay time alignment. The DVX D15 HP is the perfect match for DVA Series subwoofers.

The speakers of DVX HP series use cutting edge digital amplifiers of the DIGIPRO G2 series, providing with different powers 800W, 1200W and 1400W, to meet the requirements of any kind of application. These highly efficient amplifiers provide high power with limited weight and dimension. Thanks to the low power dissipated, the cooling of the amplifier module does not require a fan. The digital preamplifier with DSP (Digital Signal Processing) controls the audio crossover of the acoustic components, the frequency response, the limiter and the acoustic phase alignment. A selector enables to select one of two different equalizations - "FULL RANGE" or "STAGE MONITOR" - to provide high versatility for the different applications. The amplifiers DIGIPRO G2 use power supplies featuring SMPS (Switched-Mode Power Supplies) technology.

This technology increases power supply efficiency and minimizes its weight. The D15 HP bi-amped active speaker is equipped with a DIGIPRO G2 amplifier delivering 1400W. The D15 HP is a bi-amped active speaker features a 15" (voice coil 3") woofer and a 1.4" (voice coil 3") compression driver installed on a 60x40 Degree aluminum CD- horn. The speaker's horizontal directivity is 60 Degree by default factory setting. The speaker is made of 15mm birch ply wood, the 3 handles, the 6 flytracks, the 6 M10 threads and the 4 flypins located on the sides and the back of the speaker are enabling easy transport and installation. The speaker has been designed to be used also as stage monitor (45 Degree angle). By rotating the horn you can maintain the same coverage angle also when the speaker is used as monitor. In the bottom of the box there is a standard pole mount cup (D36mm) made of aluminum.
