dB Technologies DVX DM12 12" 2-way Active Stage Monitor, 1500W Peak Power, 68-19kHz Frequency Response at +/-3dB, 131dB Max SPL, Single

SKU: DBTDVXDM12

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

dB Technologies DVX DM12 Specifications

  • Speaker Type

    2-Way Active Stage Monitor

  • Frequency Response [-10dB]

    55 - 20000 Hz

  • Frequency Response [+/- 3dB]

    68 - 19000 Hz

  • Max SPL

    131 dB

  • HF

    1.4 "

  • Type HF

    Neodymium Compression Driver

  • Voice Coil HF

    Titanium 2.5 "

  • Directivity

    40x90 deg.

  • Horn

    CD Horn Aluminum

  • Rotatable Horn

    YES

  • LF

    12 "

  • Type LF

    Neodymium

  • Voice Coil LF

    3 "

  • Impedance input

    Balanced: 20kOhms
    Unbalanced: 10kOhms

  • Power Supply

    Full Range Con PFC: 100-240Vac 50-60Hz

  • Amp Technology

    Digipro

  • Amp Class

    Class D

  • Power RMS

    500W + 250W

  • Peak Power

    1500 W

  • Cooling

    Convection

  • Controller

    DSP 24 Bit/48 kHz

  • System Presets

    Flat, Monitor

  • Limiter

    RMS, Peak. Thermal, Multiband

  • Crossover Frequency MF-HF

    1320 Hz

  • Slope MF-HF

    24 dB/Octave

  • Housing

    Multiplex birch plywood

  • Housing Design

    Low Profile Multifunctional

  • Angles Up

    35, 55 deg.

  • Rigging Points

    6x M10 4x Quick-Relase Pins

  • Dimensions (W x H x D)

    660 x 305 x 378mm / 25.98 x 12.01 x 14.88"

  • Weight

    55.12lbs / 25.00kg

2 Accessories for dB Technologies DVX DM12 12" 2-way Active Stage Monitor, 1500W Peak Power, 68-19kHz Frequency Response at +/-3dB, 131dB Max SPL, Single

  • All Accessories (2)
  • Speaker Accessories (1)
  • Monitoring Accessories (1)

About dB Technologies DVX DM12

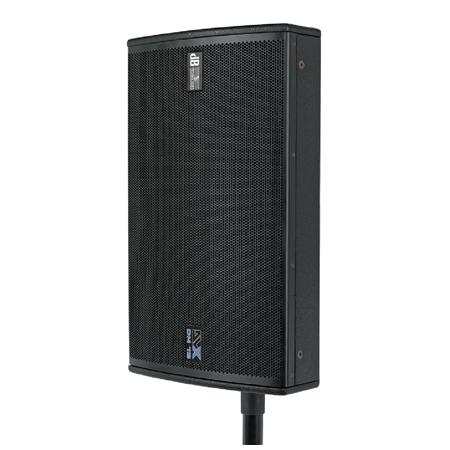

The dB Technologies DVX DM12 is an active bi-amped stage monitor. Powerful, assertive and engineered for professional applications, it is the perfect choice for midsized to large stages. Featuring a discrete, unobtrusive design, the ultra low-profi le enclosure sports a high-performance 12" neodymium woofer paired with a 1.4" neodymium compression driver and rotatable aluminum CD horn precision matched for on-stage monitoring. Unlike conventional multifunctional speakers, the DVX DM 12is a prograde performer developed specifically for use as a floor monitor. Optimized to resist feedback even at extremely high levels, it delivers the true-to-nature response and dynamic balance that today's artists demand. The integrated digipro digital power amps deliver the requisite output. The switched-mode power supplies with PFC ensure touring rigs get all the juice they need to perform at their peak even when a venue's mains power is weak and voltage is low.

Active Stage Monitor 1500 Watt
The onboard controller encompasses an active equalizer, active x-over including phase and time alignment, limiters, and switchable system presets that adapt the monitor's performance to suit the given application. Made of rugged multiplex and coated with tough black lacquer, the cabinet sets up at two different angles. It is also equipped with a pole mount, enabling the DVX DM12to be set on a tripod or speaker pole.

What's in the box:

  • dB Technologies DVX DM12 12 " 2-way Active Stage Monitor
  • dB Technologies 2 Year Warranty
