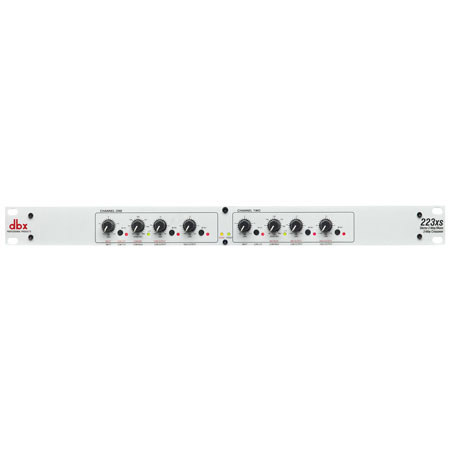

DBX 223xs Stereo 2-Way/Mono 3-Way Crossover with XLR Connectors

SKU: DBX223XS MFR: DBX223XSV
Earn VIP Reward Points

Key Features

  • Achieve pristine audio clarity with this professional stereo crossover for your studio.
  • Optimize your sound system using the 2-way/3-way crossover for balanced frequency distribution.
  • Enjoy low noise performance, ensuring clean and accurate sound reproduction for critical listening.
  • Rugged and reliable, this DBX crossover is built for durability and consistent performance.
  • Seamless connectivity with XLR connectors integrates easily into any pro audio setup.
  • Fine-tune your sound; user-friendly controls offer precise adjustments for optimal audio value.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$59.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

dbx 223xs Stereo 2-Way/Mono 3-Way Crossover Specifications

  • Input: Connectors

    XLR (pin 2 hot)

  • Input: Type

    Electronically balanced/unbalanced, RF filtered

  • Input: Impedance

    Balanced >50k ohm, unbalanced >25k ohm

  • Max Input Level

    >+22dBu balanced or unbalanced

  • Output: Connectors

    XLR

  • Output: Type

    Electronically-balanced/unbalanced, RF filtered

  • Output: Impedance

    Balanced 60 ohm, unbalanced 30 ohm

  • Max Output Level

    >+20dBu balanced/unbalanced into 600 ohms or greater

  • Crossover Frequencies: Stereo Mode

    Low/High: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)

  • Crossover Frequencies: Mono Mode

    Low/Mid: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
    Mid/High: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)

  • Crossover Frequencies: Filter type

    Linkwitz-Riley, 24 dB/octave, state-variable

  • Functional Frequencies: Front Panel

    Low Cut: Activates 40 Hz Butterworth, 12 dB/octave high-pass filter, one switch per channel

  • Functional Frequencies: Phase Invert

    Inverts the phase at the output, one switch per output

  • Functional Frequencies: Rear Panel

    x10: Multiplies the crossover frequency range by 10, one switch per channel
    Mode: Selects stereo/mono and 2/3-way operation
    LF sum: Selects normal (stereo) or mono-summed low frequency operation

  • Indicators: Stereo Operation

    Green LED

  • Indicators: Mono Operation

    Yellow LED

  • Indicators: Low Cut

    Red LED per channel

  • Indicators: x10

    Green LED per channel

  • Indicators: Phase Invert

    Red LED per output (3 per channel)

  • System Performance: Bandwidth

    20Hz to 20kHz, +0/-0.5dB

  • System Performance: Frequency Response

    < 3Hz to > 90kHz, +0/-3 dB

  • System Performance: Dynamic Range

    >106dB, unweighted, any output

  • System Performance: THD + Noise

    <0.004% at +4dBu, 1kHz
    <0.04% at +20dBu, 1 kHz

  • System: Interchannel Crosstalk

    <-80dB, 20Hz to 20kHz

  • System Performance: CMRR

    >40dB, typically >55dB at 1kHz

  • System Performance: Signal-to-Noise

    Ref: +4dBu, 22kHz measurement bandwidth

  • System Performance: Stereo Mode

    >94dB (Low Output)91dB (High Output)

  • System Performance: Mono Mode

    >94dB (Low Output)93dB (Mid Output)91dB (High Output)

  • Operating Voltage

    100 VAC 50/60 Hz; 120 VAC 60 Hz 230 VAC 50/60HZ

  • Power consumption

    15W

  • Operating Temperature

    32 Deg.F to 113 Deg.F (0 Deg.C to 45 Deg.C)

  • Dimensions (H x D x W)

    1.75" x 6.9" x 19" / 4.5 x 17.5 x 48.26 cm

  • Weight

    3.7 lbs. (1.7 kg)

  • UPC Code

    691991401275

About dbx 223xs Stereo 2-Way/Mono 3-Way Crossover

Enhance your professional audio setup with the dbx 223xs Stereo 2-Way/Mono 3-Way Crossover, a high-quality, durable, and innovative product from a brand renowned for its expertise in audio equipment. This advanced crossover is equipped with XLR connectors, a standard in professional audio environments, ensuring secure and reliable connections.

The dbx 223xs Crossover stands out with its Linkwitz-Riley 24dB per octave filters, a feature that ensures optimal frequency separation for superior sound quality. Independent output gain controls allow for precise level matching, while the output phase inversion feature offers enhanced sound customization. A 40 Hz low cut filter is included, along with an optional mono summing of the low-frequency (subwoofer) output, providing you with a wide range of sound control options.

Every detail of the dbx 223xs Crossover is designed with precision and durability in mind, from the solid "click" controls to the high-quality XLR inputs and outputs. This crossover not only delivers exceptional performance and ultra-low noise but also boasts the rugged reliability that dbx products are known for.

The dbx 223xs Crossover employs precision filters to segregate the audio signal, directing the correct frequencies to your loudspeaker drivers. This process allows your amplifiers to focus their full power on the usable signal, eliminating distortion and resulting in a cleaner, better sound for your PA system. Experience the difference that four decades of dbx knowledge and expertise in building world-class processors can make in your audio setup.

dbx 223xs Stereo 2-Way/Mono 3-Way Crossover Features

  • Stereo 2-way, mono 3-way crossover
  • Mode switch for stereo 2-way or mono 3-way operation
  • 24dB per octave Linkwitz-Riley filters
  • Low frequency summed (subwoofer) output
  • Range switch on both channels (x10)
  • 40Hz high-pass (low-cut) filter on both channels
  • Phase reverse switch on all outputs
  • Individual level controls on all outputs
  • Stereo/Mono status LEDs indicate the selected mode
  • XLR balanced ins and outs
  • CSA NRTL/C approved and CE compliant

Product Documents

User Manual

Key Features

  • Achieve pristine audio clarity with this professional stereo crossover for your studio.
  • Optimize your sound system using the 2-way/3-way crossover for balanced frequency distribution.
  • Enjoy low noise performance, ensuring clean and accurate sound reproduction for critical listening.
  • Rugged and reliable, this DBX crossover is built for durability and consistent performance.
  • Seamless connectivity with XLR connectors integrates easily into any pro audio setup.
  • Fine-tune your sound; user-friendly controls offer precise adjustments for optimal audio value.

What's in the box:

  • dbx 223xs Stereo 2-Way/Mono 3-Way Crossover
  • AC Power Cable
  • dbx Warranty
