Delvcam 4K UHD HDMI 3G-SDI Monitor Quad View Broadcast Monitor, 24", 3840x2160
See all Delvcam items

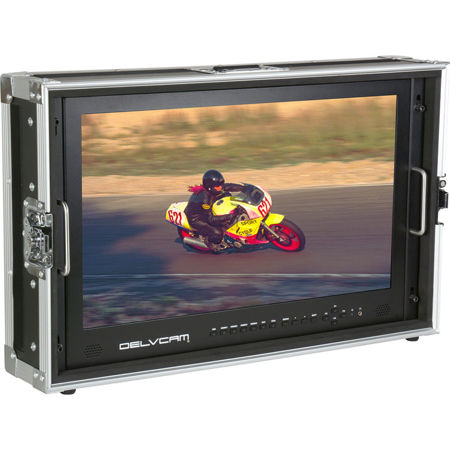

Delvcam 4K UHD HDMI 3G-SDI Monitor Quad View LED Broadcast Monitor Mounted in Rugged Carrying Case, 24", 3840x2160

SKU: DC4KSDI24
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Delvcam 3G-SDI Quad View Monitor Specifications

  • Aspect Ratio

    16:9

  • Brightness

    450/cd/m square

  • Contrast

    1000:1

  • Viewing Angle

    170 Degree /160 Degree (H/V)

  • Native Resolution

    4K, 3840 x 2160

  • Special Functions

    Tally Interface, Check Field, Image Flip, Overscan, Underscan, Image Freeze, Color Temperature, User Definable Function Buttons

  • Image Control

    Peaking, Split Screen, Quad View, User Adjustable Markers

  • Input

    1 3G-SDI, 1 HDMI 2.0 (4K), 3 HDMI 1080P, 1 DVI, 1 VGA, 1 Audio

  • Loop Out

    1 3G-SDI

  • Screen

    28" LED

  • Audio

    2 Speakers (L/R), Earphone Jack

  • Mount

    100 x 100 & 75 x 75 VESA Mount

  • Power Consumption

    48 W

  • Input Current

    2800mA

  • Input Voltage

    DC 12/24V(XLR)

  • Dimensions

    22.4 x 14.82 x 1.77 " (568.96 x 376.43 x 44.96 mm)
    26.2x16.38x6.8 " (665.48 x 416.05 x 172.72 mm) (with case)

  • Weight

    18.96 lbs (8.6 kg) - without case
    37.7 lbs (17.1 kg) - with case

About Delvcam 3G-SDI Quad View Monitor

The Delvcam DELV-4KSDI24 4K UHD LED broadcast monitor features a 24" screen with multiple viewing options, including built-in quad and multiview, as well as a high contrast display for the ultimate cinematic experience. With multiple interfaces including 3G-SDI, HDMI, VGA, DVI and audio, this monitor is ideal for ENG news crews, TV stations, production studios, and directors in live and post production applications.

The 3840x2160 resolution supports 4K UHD signals with a 16:9 LED display and 170 Degree wide viewing angles for consistent images from any perspective. The high contrast display creates rich colors and sharp, detailed images. The monitor is mounted in a removable reinforced case that features a hinged, lockable door for access to the back of the monitor.

Delvcam 3G-SDI Quad View Monitor Features

  • 24" Viewing Screen
  • Multiple Viewing Options - Full Screen, Split, Quad
  • Multiple Interfaces
  • 1 3G-SDI Input
  • 4 HDMI Inputs: 1-4K, 3-1080P
  • High Contrast
  • Removable carrying case for 100 x 100 & 75 x 75 VESA mount

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 24" Viewing Screen
  • Multiple Viewing Options - Full Screen, Split, Quad
  • Multiple Interfaces
  • 1 3G-SDI Input
  • 4 HDMI Inputs: 1-4K, 3-1080P
  • High Contrast

What's in the box:

  • Monitor
  • Collapsible Sunshade
  • Carrying Case
  • Power Adapter
  • Battery Plate Bracket
  • V-mount with Power Cable
  • TALLY Connector Kit
  • Delvcam 1 Year Warranty
