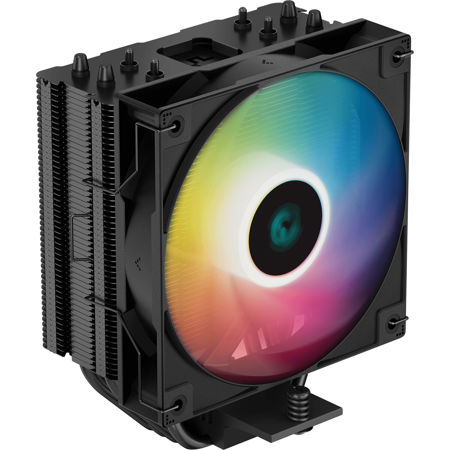

DeepCool AG400 120mm Single-Tower ARGB CPU Cooler

SKU: DCAG4

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the Fan Lock Mounting System in the DeepCool AG400 ARGB CPU Cooler?

The Fan Lock Mounting System in the DeepCool AG400 ARGB CPU Cooler is a feature that eliminates the need for fan disassembly during installation, saving you valuable time and effort.

What is the Balanced Bidirectional Heat Pipe Technology in the AG400 ARGB CPU Cooler?

The Balanced Bidirectional Heat Pipe Technology in the AG400 ARGB CPU Cooler optimizes the internal capillary structure and injects a precise amount of liquid to deliver superior heat dissipation performance, regardless of the cooler's orientation in a vertical or horizontal case.

What kind of fans does the AG400 ARGB CPU Cooler use?

The AG400 ARGB CPU Cooler uses high-efficiency fans that offer automatic PWM support for full performance under load and silent efficiency at idle. These fans operate within a speed range of 500-2000 RPM and can deliver a maximum airflow of 75.89 CFM.

What is the Matrix Fins Array on the AG400 ARGB CPU Cooler?

The Matrix Fins Array on the AG400 ARGB CPU Cooler is a feature where high-quality aluminum fins are densely stacked on the heat sink to provide ideal heat dissipation. It also features a unique 'checkerboard' design aesthetic.

Is the AG400 ARGB CPU Cooler compatible with both Intel and AMD platforms?

Yes, the AG400 ARGB CPU Cooler includes mounting brackets that support both Intel and AMD platforms. This ensures versatility and wide usability across multiple system configurations.

Reviews about this item

Review Summary

DeepCool AG400 120mm Single-Tower ARGB CPU Cooler Specifications

  • Available Colors

    Black, White

  • Application For

    Intel: LGA1700/1200/1151/1150/1155
    AMD: AM5/AM4

  • Heatpipe

    6mm x4 pcs

  • Fan Speed

    500-2000 RPM +/- 10%

  • Fan Airflow

    75.89 CFM

  • Fan Air Pressure

    2.53 mmAq

  • Fan Noise

    <=31.6 dB(A)

  • Fan Connector

    4-pin PWM

  • Bearing Type

    Hydro Bearing

  • Fan Rated Voltage

    12 VDC

  • Fan Rated Current

    0.28 A

  • Fan Power Consumption

    3.36 W

  • LED Type

    Addressable RGB LED

  • LED Connector

    3-pin(+5V-D-G)

  • LED Rated Voltage

    5 VDC

  • LED Power Consumption

    1.05 W

  • Dimensions (L x W x H)

    4.92 x 3.62 x 5.90" (125 x 92 x 150mm)
    Heatsink: 4.72 x 3.62 x 5.90" (120 x 92 x 150mm)
    Fan: 4.72 x 4.72 x 0.98" (120 x 120 x 25mm)

  • Weight

    21.65 oz (614g)

About DeepCool AG400 120mm Single-Tower ARGB CPU Cooler

The DeepCool AG400 ARGB is a single tower 120mm CPU cooler that builds upon our legacy for high-quality cooling performance but stripped down for a streamlined and efficient package.

Stellar Thermal Performance
Enjoy better system performance by keeping things cool with up to 220W of heat dissipation power featuring four direct touch heat pipes that rapidly draw heat away from the CPU.

Fan Lock Mounting System
When installing the AG400 ARGB, the fan does not need to be disassembled during the process, simplifying and saving time.

Prime Compatibility
The AG400 ARGB maintains excellent hardware compatibility with its compact design for 100% RAM clearance and has a slight offset for quick and easy installation. Its superb thermal performance also allows it to be compatible with demanding processing workloads.

Balanced Bidirectional Heat Pipe Technology
By optimizing the internal capillary structure and injecting a precise amount of liquid, the heat pipe achieves the best heat dissipation performance regardless of whether the cooler is in a vertical or horizontal case. This perfect ratio facilitates a highly efficient phase change throughout the heat pipe and achieves lower thermal resistance over a wide TDP range.

High Efficiency Fans
Find your optimal balance with automatic PWM support for full performance under load to silent efficiency at idle.

• 500-2000 RPM
• <=31.6 dB(A)
• 75.89 CFM

Matrix Fins Array
High-quality aluminum fins on the heat sink are densely stacked for ideal heat dissipation and which also features a unique "checkerboard" design aesthetic.

Simple and Secure
The included mounting brackets support both Intel and AMD platforms with an easy five-step installation process that maintains great contact pressure. The offset design of the heat pipes ensures that the cooler can be installed with the fan already attached.

DeepCool AG400 120mm Single-Tower ARGB CPU Cooler Features

  • Stellar Thermal Performance
  • Fan Lock Mounting System
  • Prime Compatibility
  • Balanced Bidirectional Heat Pipe Technology
  • High Efficiency Fans
  • Matrix Fins Array

Key Features

  • Stellar Thermal Performance
  • Fan Lock Mounting System
  • Prime Compatibility
  • Balanced Bidirectional Heat Pipe Technology
  • High Efficiency Fans
  • Matrix Fins Array

What's in the box:

  • DeepCool AG400 120mm Single-Tower ARGB CPU Cooler
  • Mounting Brackets
  • Thermal Paste
  • Mounting Hardware
  • DeepCool 1 Year Limited Warranty
