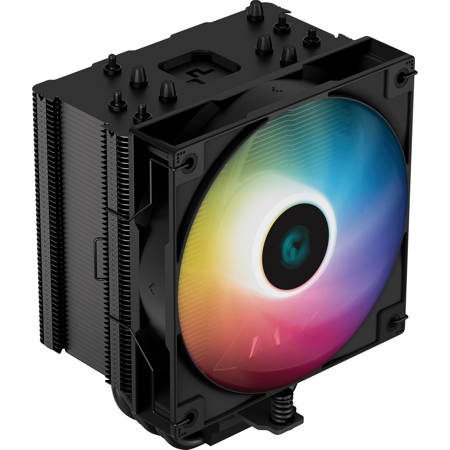

DeepCool AG500 120mm Single-Tower ARGB CPU Cooler

SKU: DCAG5

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the main feature of the DeepCool AG500 ARGB CPU cooler?

The DeepCool AG500 ARGB CPU cooler features five direct-contact copper heat pipes for superior heat dissipation, a 120mm ARGB PWM fan for powerful cooling, and a matrix fins array design on its aluminum heat sink for enhanced cooling efficiency.

Is the DeepCool AG500 ARGB CPU cooler compatible with both Intel and AMD platforms?

Yes, the DeepCool AG500 ARGB CPU cooler includes mounting brackets that support both Intel and AMD platforms, ensuring broad compatibility.

What is the RPM and CFM of the fan included with the DeepCool AG500 ARGB CPU cooler?

The 120mm ARGB PWM fan included with the DeepCool AG500 ARGB CPU cooler has a speed range of 300-1850 RPM and an airflow of 67.88 CFM.

Can I install the DeepCool AG500 ARGB CPU cooler with the fan already attached?

Yes, the offset design of the heat pipes allows for the cooler to be installed with the fan already in place, streamlining the setup process.

Does the DeepCool AG500 ARGB CPU cooler accommodate high-profile RAM modules?

Yes, the DeepCool AG500 ARGB CPU cooler has an offset heat pipe design that provides ample clearance for high-profile RAM modules and ensures an unobstructed view of your memory slots.

Reviews about this item

Review Summary

DeepCool AG500 120mm Single-Tower ARGB CPU Cooler Specifications

  • Available Colors

    Black, White

  • Application For

    Intel: LGA1700/1200/1151/1150/1155
    AMD: AM5/AM4

  • Heatpipe

    6mm x5 pcs

  • Fan Speed

    300-1850 RPM +/- 10%

  • Fan Airflow

    67.88 CFM

  • Fan Air Pressure

    2.04 mmAq

  • Fan Noise

    <=29.4 dB(A)

  • Fan Connector

    4-pin PWM

  • Bearing Type

    Hydro Bearing

  • Fan Rated Voltage

    12 VDC

  • Fan Rated Current

    0.14 A

  • Fan Power Consumption

    1.68 W

  • LED Type

    Addressable RGB LED

  • LED Connector

    3-pin(+5V-D-G)

  • LED Rated Voltage

    5 VDC

  • LED Power Consumption

    1.05 W

  • Dimensions (L x W x H)

    4.92 x 3.74 x 6.10" (125 x 95 x 155mm)
    Heatsink: 4.72 x 3.66 x 5.90" (120 x 93 x 150mm)
    Fan: 4.72 x 4.72 x 0.98" (120 x 120 x 25mm)

  • Weight

    30.3 oz (861g)

  • UPC Codes

    Black: 6933412727873 | White: 6933412727880

About DeepCool AG500 120mm Single-Tower ARGB CPU Cooler

The DeepCool AG500 ARGB is a compact single-tower CPU cooler focused on high performance efficiency boasting five direct-contact copper heat pipes packed in a dense heat sink tower for optimal heat dissipation and paired with a fine-tuned 120mm ARGB PWM fan for powerful cooling.

Stellar Thermal Conductivity
Supercharge your cooling capacity and efficiently lower your CPU system temperature with 240W of heat dissipation performance to keep up with the latest generation. Built for 4K gaming and other demanding processing workloads to get the most of your CPU while keeping cool.

High Efficiency Fan
Get the best of both worlds with a fine-tuned 120mm ARGB PWM fan designed for optimal balance in top performance under load to silent efficiency when idle. Highly effective with strong static pressure for rapid heat transfer throughout the heat sink.

• 300-1850 RPM
• <=29.4 dB(A)
• 67.88 CFM

Prime Compatibility
Designed with offset heat pipes to accommodate the larger heat sink depth for better component compatibility. This allows more space for tall heat spreaders and an unobstructed view of all your RAM slots.

Matrix Fins Array
High-quality aluminum fins on the heat sink are densely stacked for ideal heat dissipation and also features a unique "checkerboard" design aesthetic.

Simple and Secure
The included mounting brackets support both Intel and AMD platforms with an easy five-step installation process that maintains great contact pressure. The offset design of the heat pipes ensures that the cooler can be installed with the fan already attached.

DeepCool AG500 120mm Single-Tower ARGB CPU Cooler Features

  • Stellar Thermal Conductivity
  • High Efficiency Fan
  • Prime Compatibility
  • Matrix Fins Array

Key Features

  • Stellar Thermal Conductivity
  • High Efficiency Fan
  • Prime Compatibility
  • Matrix Fins Array

What's in the box:

  • DeepCool AG500 120mm Single-Tower ARGB CPU Cooler
  • Mounting Brackets
  • Thermal Paste
  • Mounting Hardware
  • DeepCool 1 Year Limited Warranty
