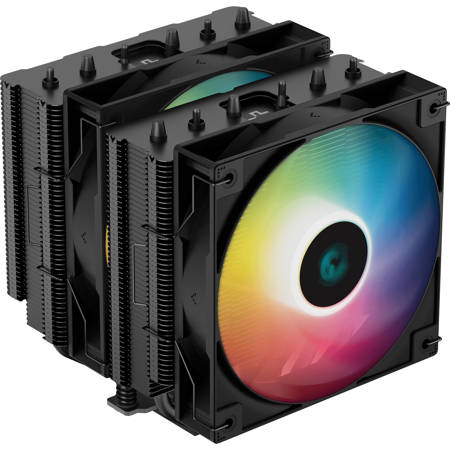

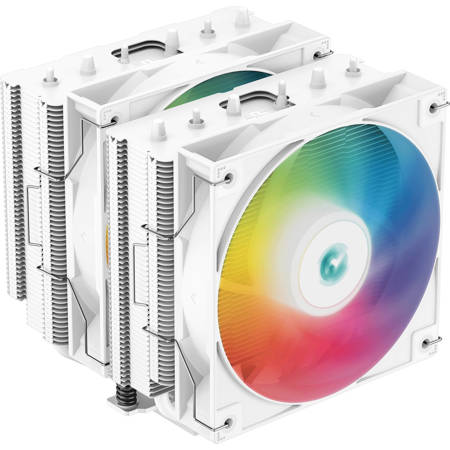

DeepCool AG620 120mm Dual-Tower ARGB CPU Cooler

SKU: DCAG620

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What type of systems is the DeepCool AG620 ARGB CPU Cooler suitable for?

The DeepCool AG620 ARGB CPU Cooler is suitable for high-performance systems that require robust cooling, such as gaming PCs and workstations with high thermal design power (TDP) components.

Can the DeepCool AG620 ARGB CPU Cooler be installed in any case orientation?

Yes, the Balanced Bidirectional Heat Pipe Technology of the AG620 ARGB allows for efficient heat dissipation performance regardless of whether the cooler is installed in a vertical or horizontal case orientation.

Does the DeepCool AG620 ARGB CPU Cooler have customizable fan speeds?

The AG620 ARGB CPU Cooler features automatic PWM support, which adjusts the fan speeds from 300-1850 RPM based on the system's cooling needs, ensuring optimal balance between performance and noise.

What is the purpose of the Matrix Fins Array on the AG620 ARGB CPU Cooler?

The Matrix Fins Array on the AG620 ARGB CPU Cooler is designed to provide maximum heat dissipation through densely stacked high-quality aluminum fins, while also contributing to the cooler's aesthetic with a checkerboard pattern.

Is the mounting hardware for the DeepCool AG620 ARGB CPU Cooler compatible with both Intel and AMD platforms?

Yes, the included all-metal mounting brackets are designed to support both Intel and AMD platforms, ensuring wide compatibility and secure installation.

Reviews about this item

Review Summary

DeepCool AG620 120mm Dual-Tower ARGB CPU Cooler Specifications

  • Available Colors

    Black, White

  • Application For

    Intel: LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
    AMD: AM5/AM4

  • Heatpipe

    6mm x6 pcs

  • Fan Speed

    300-1850 RPM +/-10%

  • Fan Airflow

    67.88 CFM

  • Fan Air Pressure

    2.04 mmAq

  • Fan Noise

    <=29.4 dB(A)

  • Fan Connector

    4-pin PWM

  • Bearing Type

    Hydro Bearing

  • Fan Rated Voltage

    12 VDC

  • Fan Rated Current

    0.14 A

  • Fan Power Consumption

    1.68 W

  • LED Type

    Addressable RGB LED

  • LED Connector

    3-pin(+5V-D-G)

  • LED Rated Voltage

    5 VDC

  • LED Power Consumption

    1.05 W

  • Dimensions (L x W x H)

    5 x 5.35 x 6.14" (129 x 136 x 157mm)
    Heatsink: 5 x 4.33 x 6.18" (127 x 110 x 157mm)
    Fan: 4.72 x 4.72 x 0.98" (120 x 120 x 25 mm)

  • Weight

    2.86 lbs (1.30kg)

  • UPC Codes

    White: 6933412727835 | Black: 6933412727828

About DeepCool AG620 120mm Dual-Tower ARGB CPU Cooler

The DeepCool AG620 ARGB is a dual-tower 120mm CPU cooler that boasts impressive 260W cooling power performance that's been stripped down and optimized for terrific efficiency throughout.

Substantial Cooling Power
Keep things cool with up to 260W of heat dissipation power to ensure your system is performing at its peak without a sweat.

Balanced Bidirectional Heat Pipe Technology
By optimizing the internal capillary structure and injecting a precise amount of liquid, the heat pipe achieves the best heat dissipation performance regardless of whether the cooler is in a vertical or horizontal case. This perfect ratio facilitates a highly efficient phase change throughout the heat pipe and achieves lower thermal resistance over a wide TDP range.

High Efficiency Fans
Find your optimal balance with automatic PWM support for full performance under load to silent efficiency at idle.

• 300-1850 RPM
• <=29.4 dB(A)
• 67.88 CFM

Matrix Fins Array
High-quality aluminum fins on the heat sink are densely stacked for ideal heat dissipation and which also features a unique "checkerboard" design aesthetic.

Simple and Secure
The included all-metal mounting brackets support both Intel and AMD platforms with an easy five-step installation process that maintains great contact pressure.

DeepCool AG620 120mm Dual-Tower ARGB CPU Cooler Features

  • Substantial Cooling Power
  • Balanced Bidirectional Heat Pipe Technology
  • High Efficiency Fans
  • Matrix Fins Array

Key Features

  • Substantial Cooling Power
  • Balanced Bidirectional Heat Pipe Technology
  • High Efficiency Fans
  • Matrix Fins Array

What's in the box:

  • DeepCool AG620 120mm Dual-Tower ARGB CPU Cooler
  • Cable
  • Mounting Bracket
  • Thermal Paste
  • Mounting Hardware
  • DeepCool 1 Year Limited Warranty
