This item is no longer available.
The FC120 A-RGB PWM fans in the DeepCool LS520 Premium Liquid CPU Cooler have an operational lifespan of 50,000 hours.
Yes, the DeepCool LS520 Premium Liquid CPU Cooler comes with an additional blank plate that you can design yourself. The cooler also features an infinity mirror cap design and supports RGB lighting effects for color synchronization.
Yes, the DeepCool LS520 Premium Liquid CPU Cooler can be installed on both Intel and AMD platforms thanks to its newly designed mounting brackets.
The fans in the DeepCool LS520 Premium Liquid CPU Cooler have a dynamic PWM range of 500-2250 RPM.
Yes, the official DeepCool recommended mounting method for the LS520 Premium Liquid CPU Cooler is the 6 O'clock mounting position for optimal performance.
Review Summary
Black, White
Intel:LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD: sTRX4/sTR4/AM5/AM4
Aluminum
16.14" (410mm)
3100 RPM +/-10%
19 dB(A)
3-pin
12 VDC
0.47 A
5.64 W
500-2250 RPM +/-10%
85.85 CFM
3.27 mmAq
<=32.9 dB(A)
4-pin PWM
Fluid Dynamic Bearing
12 VDC
0.29 A
3.48 W
Addressable RGB LED
3-pin(+5V-D-G)
5 VDC
2.2 W (PUMP)/ 3.6 W (FAN x 2)
Radiator: 11.10 x 4.72 x 1" (282 x 120 x 27mm)
Pump: 3.38 x 2.91 x 2.24" (86 x 74 x 57mm)
Fan: 4.72 x 4.72 x 0.98" (120 x 120 x 25mm)
2.87 lbs (1.305kg)
White: 6933412727651 | Black: 6933412727484

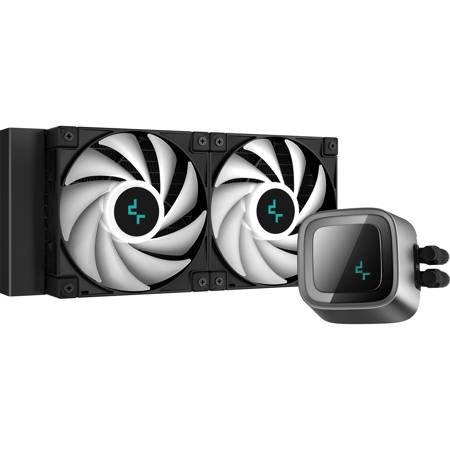

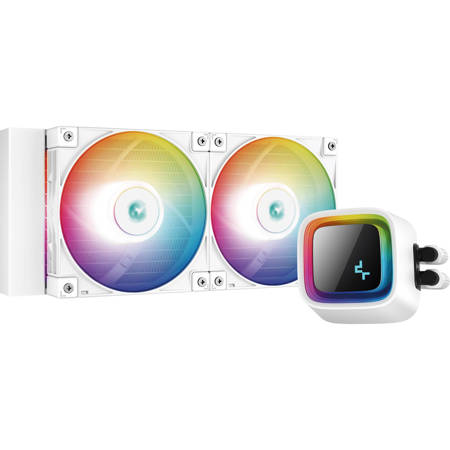

The DeepCool LS520 premium liquid CPU cooler maximizes cooling performance and low-noise efficiency with a 240mm radiator, two FC120 A-RGB PWM fans, and an infinity mirror cap design.
A New Era of Deepcool
Built on our 4th Generation high-performance water pump that maximizes cooling performance featuring:
Improved microchannel design ensures optimal coolant flow
Powerful three-phase drive motor up to 3100 RPM
Thick solid copper base with a seamless match
Cool and Quiet
Get treated to excellent cooling and superb silent efficiency with the included FC120 fans boasting enhanced static pressure, concentrated airflow, and a fluid dynamic bearings.
500-2250 RPM: Dynamic PWM Range
85.85 CFM: Supreme Airflow
<=32.9 dB(A): Full Load Noise
50,000 Hours: Long Operational Lifespan
Simple and Secure
Installation is quick and easy with newly designed mounting brackets that keep your cooler fastened safely on both Intel and AMD platforms.
Customize Your Look
The new infinity mirror pump face design projects two light loops for a mesmerizing visual effect while also allowing installation in any orientation with a independently rotatable logo plate. For full customization, an additional blank plate is provided for your own design.
Synchronize Your Setup with RGB Lighting Effects
Coordinate your colors through supported RGB software and motherboard synchronization to access control for different lighting effects. A default Auto-RGB rainbow effect is enabled when no controller is detected allowing limited functionality on motherboards without 5V A-RGB headers.
Note: 6 O'clock mounting position is the official DeepCool recommended mounting method for optimal performance
