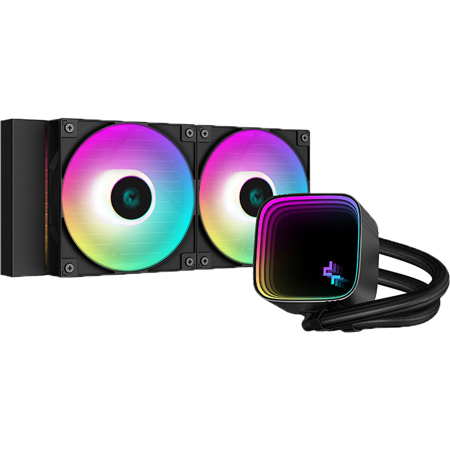

DeepCool LS520 SE 240mm All-In-One ARGB Liquid CPU Cooler

SKU: DCLS520SE

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Shopper : Why Did You Choose This?NAM D : I want itSEAN D : Brother told me toKAMERON C : Friend suggested

Reviews about this item

Review Summary

DeepCool LS520 SE 240mm All-In-One ARGB Liquid CPU Cooler Specifications

  • Available Colors

    Black, White

  • Application For

    Intel: LGA1700/1200/1151/1150/1155
    AMD: AM5/AM4

  • Radiator Material

    Aluminum

  • Tube length

    16.14" (410 mm)

  • Pump Speed

    3100 RPM +/-10%

  • Pump Noise

    19 dB(A)

  • Pump Connector

    3-pin

  • Pump Rated Voltage

    12 VDC

  • Pump Rated Current

    0.38 A

  • Pump Power Consumption

    4.56 W

  • Fan Speed

    500-2250 RPM +/-10%

  • Fan Airflow

    85.85 CFM

  • Fan Air Pressure

    3.27 mmAq

  • Fan Noise

    <=32.9 dB(A)

  • Fan Speed (with LSP)

    500-1600 RPM +/-10%

  • Fan Airflow (with LSP)

    60.85 CFM

  • Fan Air Pressure (with LSP)

    1.65 mmAq

  • Fan Noise (with LSP)

    <=28.2 dB(A)

  • Fan Connector

    4-pin PWM

  • Bearing Type

    Hydro Bearing

  • Fan Rated Voltage

    12 VDC

  • Fan Rated Current

    0.25 A

  • Fan Power Consumption

    3.0 W

  • LED Type

    Addressable RGB LED

  • LED Connector

    3-pin(+5V-D-G)

  • LED Rated Voltage

    5 VDC

  • LED Power Consumption

    2.7 W (PUMP)/ 2.1 W (FAN x2)

  • Dimensions (L x W x H)

    Radiator: 11.1 x 4.72 x 1" (282 x 120 x 27mm)
    Pump: 3.34 x 2.87 x 2.16" (85 x 73 x 55mm)
    Fan: 4.72 x 4.72 x 0.98" (120 x 120 x 25mm)

  • Weight

    2.96 lbs (1.34kg)

  • UPC Code

    6933412727989

About DeepCool LS520 SE 240mm All-In-One ARGB Liquid CPU Cooler

The DeepCool LS520 SE is an all-in-one liquid CPU cooler that provides reliable high-performance cooling built on a new water pump design for optimal results. Color coordinate to the rest of your system with a big and bright ARGB infinity mirror cover on the CPU water block and included ARGB fans.

A New Era of DeepCool
Built on our 4th Generation high-performance water pump design that maximizes cooling performance featuring:

• Optimized microchannels ensure efficient coolant flow
• Powerful three-phase drive motor up to 3100 RPM
• Thick solid copper coldplate with a seamless match

Radiant Reflections
A mirror-plated top cover with a narrow frame captures an infinite reflection of 16 RGB LEDs for a vibrant visual effect. The smooth aluminum housing adds a premium finishing touch and a lustrous shine.

Efficiency At Its Finest
Keep your cool with 120mm ARGB PWM fans that beat the heat with maximum static pressure and powerful airflow. An included low-speed adapter reduces maximum noise by up to 10dB for ultimate silence.

• 500-2250 RPM: Dynamic PWM Range
• 85.85 CFM: Supreme Airflow
• 3.27 mmAq: Air Pressure
• <=32.9 dB(A): Full Load Noise

Sync Up Your Setup
Easily control and coordinate your cooler's RGB lighting effects via compatible motherboards and controllers for full customization.

Quick Installation
Sturdy mounting brackets are included for both Intel and AMD sockets that are simple and easy to install.

DeepCool LS520 SE 240mm All-In-One ARGB Liquid CPU Cooler Features

  • Optimized microchannels ensure efficient coolant flow
  • Powerful three-phase drive motor up to 3100 RPM
  • Thick solid copper coldplate with a seamless match
  • big and bright ARGB infinity mirror cover on the CPU water block and included ARGB fans
  • Compatible with Intel & AMD Sockets

Key Features

  • Optimized microchannels ensure efficient coolant flow
  • Powerful three-phase drive motor up to 3100 RPM
  • Thick solid copper coldplate with a seamless match
  • big and bright ARGB infinity mirror cover on the CPU water block and included ARGB fans
  • Compatible with Intel & AMD Sockets

What's in the box:

  • DeepCool LS520 SE 240mm All-In-One ARGB Liquid CPU Cooler
  • Intel & AMD Mounting Brackets with Screws
  • Fan Cable
  • 2x Low-Speed Adapter Cable
  • DeepCool 5 Year Limited Warranty
