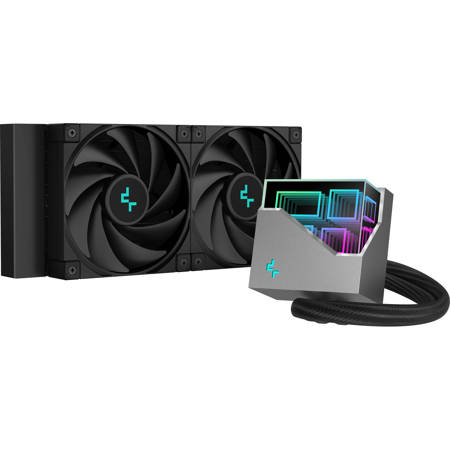

DeepCool LT520 240mm High-Performance ARGB Liquid CPU Cooler

DeepCool LT520 240mm High-Performance ARGB Liquid CPU Cooler

SKU: DCLT520
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What makes the DeepCool LT520 High-Performance ARGB Liquid CPU Cooler unique?

The DeepCool LT520 stands out with its multidimensional infinity mirror top cap, a feature that provides a mesmerizing geometric reflection. It also boasts a 4th Generation high-performance water pump and dual precision-tuned FK120 fans for superior heat dissipation.

Can I customize the RGB lighting effects of the DeepCool LT520?

Yes, the DeepCool LT520 comes with ARGB lighting effects that can be customized through supported RGB software and motherboard synchronization. This allows you to coordinate the cooler's colors with the rest of your setup.

Is the installation process of the DeepCool LT520 complicated?

Not at all. The DeepCool LT520 is designed with an intuitive installation process. The package includes easy-to-use, stealthy blacked-out brackets that ensure a proper fit and pressure match on any platform.

What is the performance of the FK120 fans included in the DeepCool LT520?

The FK120 fans included in the DeepCool LT520 are designed for high performance and operational efficiency. They feature a dynamic PWM range of 500-2250 RPM, a supreme airflow of 85.85 CFM, and a high static pressure of 3.27 mmAq.

Shopper : Why Did You Choose This?CHRISTOPHER F : I'm doing a computer build, this item fits the build physically and in terms of specs.

Reviews about this item

Review Summary

DeepCool LT520 240mm High-Performance ARGB Liquid CPU Cooler Specifications

  • Available Colors

    Black, White

  • Application For

    Intel: LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
    AMD: sTRX4/sTR4/AM5/AM4

  • Radiator Material

    Aluminum

  • Tube length

    16.14" (410mm)

  • Pump Speed

    3100 RPM +/-10%

  • Pump Noise

    19 dB(A)

  • Pump Connector

    3-pin

  • Pump Rated Voltage

    12 VDC

  • Pump Rated Current

    0.38 A

  • Pump Power Consumption

    4.56 W

  • Fan Speed

    500-2250 RPM +/-10%

  • Fan Airflow

    85.85 CFM

  • Fan Air Pressure

    3.27 mmAq

  • Fan Noise

    <=32.9 dB(A)

  • Fan Connector

    4-pin PWM

  • Bearing Type

    Fluid Dynamic Bearing

  • Fan Rated Voltage

    12 VDC

  • Fan Rated Current

    0.22 A

  • Fan Power Consumption

    2.64 W

  • LED Type

    Addressable RGB LED

  • LED Connector

    3-pin(+5V-D-G)

  • LED Rated Voltage

    5 VDC

  • LED Power Consumption

    3.15 W (PUMP)

  • Dimensions (L x W x H)

    Radiator: 11.1 x 4.72 x 1" (282 x 120 x 27mm)
    Pump: 3.70 x 3.14 x 2.67" (94 x 80 x 68mm)
    Fan: 4.72 x 4.72 x 0.98" (120 x 120 x 25mm)

  • Weight

    3.31 lbs (1.50kg)

  • UPC Codes

    Black: 6933412727910 | White: 6933412728115

About DeepCool LT520 240mm High-Performance ARGB Liquid CPU Cooler

The DeepCool LT520 high-performance liquid CPU cooler provides strong heat dissipation power with a 240mm radiator, two precision-tuned FK120 fans, and a multidimensional infinity mirror top cap.

Break Open another Dimension
A three-dimensional infinity mirror surface is revealed underneath the top cover that offers a new visual experience through a multi-faceted geometric reflection.

A New Era of DeepCool
Built on our 4th Generation high-performance water pump that maximizes cooling performance featuring:

• Improved microchannel design ensures optimal coolant flow
• Powerful three-phase drive motor up to 3100 RPM
• Thick solid copper base with a seamless match

Extremely Powerful
Maximize cooling potential with DeepCool FK120 fans that are balanced to perfection for both performance and operational efficiency. The sturdy frame and fluid dynamic bearings offer stable and long-term reliability.

• 500-2250 RPM: Dynamic PWM Range
• 85.85 CFM: Supreme Airflow
• 3.27 mmAq: High Static Pressure
• <=32.9 dB(A): Full Load Noise

Synchronize Your Setup with RGB Lighting Effects
Coordinate your colors through supported RGB software and motherboard synchronization to access control for different lighting effects that match the rest of your setup.

Simple and Secure
The installation process is intuitive and simple to use ensuring a proper fit and pressure match on any platform. The newly designed brackets are blacked out and stealthy hidden when installed into your system.

DeepCool LT520 240mm High-Performance ARGB Liquid CPU Cooler Features

  • Improved microchannel design ensures optimal coolant flow
  • Powerful three-phase drive motor up to 3100 RPM
  • Thick solid copper base with a seamless match
  • Two precision-tuned FK120 fans, and a multidimensional infinity mirror top cap

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Improved microchannel design ensures optimal coolant flow
  • Powerful three-phase drive motor up to 3100 RPM
  • Thick solid copper base with a seamless match
  • Two precision-tuned FK120 fans, and a multidimensional infinity mirror top cap

What's in the box:

  • DeepCool LT520 240mm High-Performance ARGB Liquid CPU Cooler
  • Mounting Bracket
  • Cables
  • Mounting Hardware
  • DeepCool 5 Year Limited Warranty
