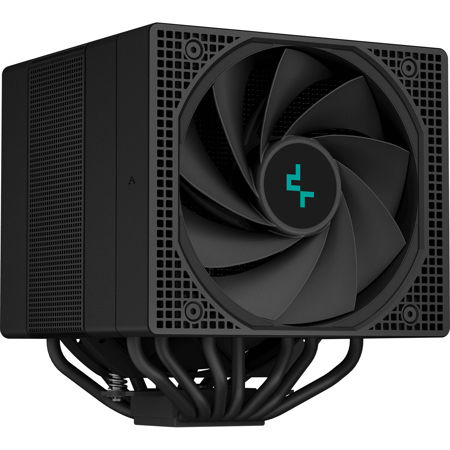

DeepCool ASSASSIN IV 120/140mm Premium CPU Air Cooler

SKU: DCRA4BKNTG

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

DeepCool ASSASSIN IV Specifications

  • Application For

    Intel: LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
    AMD: AM5/AM4

  • Heatpipe

    6mm x7 pcs

  • Fan Speed

    Performance Mode: 500-1700 RPM +/-10%
    Quiet Mode: 500-1350 RPM +/-10%

  • Fan Airflow

    Performance Mode: 79.1 CFM / 58.06 CFM
    Quiet Mode: 63.76 CFM / 46.75 CFM

  • Fan Air Pressure

    Performance Mode: 2.44 mmAq / 2.1 mmAq
    Quiet Mode: 1.58 mmAq / 1.35 mmAq

  • Overall Noise

    Performance Mode: <=29.3 dB(A)
    Quiet Mode: <=22.6 dB(A)

  • Fan Connector

    4-pin PWM

  • Bearing Type

    Fluid Dynamic Bearing

  • Motor Type

    6-Pole Fan Motor

  • Fan Rated Voltage

    12 VDC

  • Fan Rated Current

    0.3 A / 0.2 A

  • Fan Power Consumption

    3.6 W / 2.4 W

  • Rated Voltage

    12 VDC

  • Power Consumption

    Performance Mode: 2.88 W
    Quiet Mode: 1.56 W

  • Dimensions (L x W x H)

    5.66 x 5.78 x 6.45" (144 x 147 x 164 mm)
    Heatsink: 5.51 x 4.33 x 6.29" (140 x 110 x 160 mm)
    Fan: 5.51 x 5.51 x 0.98" (140 x 140 x 25mm) / 4.72 x 4.72 x 0.98" (120 x 120 x 25mm)

  • Weight

    3.47 lbs (1.57kg)

  • UPC Code

    6933412728092

About DeepCool ASSASSIN IV

For the discerning PC builder seeking a blend of sophisticated elegance and formidable cooling performance, the ASSASSIN IV Premium CPU Air Cooler stands as a testament to Deepcool's commitment to quality. This high-performance cooler is engineered with seven advanced heat pipes and a pair of newly designed fans, one 120mm and one 140mm, featuring true Fluid Dynamic Bearing (FDB) technology for efficient, reliable operation.

The stylish and durable ASSASSIN IV not only boasts a visually appealing design but also excels in creating optimal airflow and ensuring maximum compatibility with various CPU sockets. The cooler's elegant shroud and dual black-coated fin towers contribute to its sleek appearance while facilitating effective heat dissipation.

Users will appreciate the flexibility offered by the ASSASSIN IV, which can effortlessly switch between Quiet and Performance modes with a simple slide of a switch. This feature allows the cooler to adapt to the user's needs, prioritizing low noise levels or maximizing cooling efficiency as required.

The cooler's design also prioritizes convenience, with a relocatable 120mm fan that ensures unobstructed clearance for high-profile RGB RAM, making it an ideal choice for enthusiasts who value both aesthetics and functionality. The following RAM clearance specifications ensure compatibility with a wide range of systems:
- Intel LGA1700/1200/115X: Unobstructed
- Intel LGA20XX: 63mm
- AMD: AM4/AM5: Unobstructed

However, due to specific motherboard layouts, the ASSASSIN IV is not compatible with certain models, including the ROG STRIX Z790-H GAMING WIFI and MSI MEG Z790 ACE, among others listed in the original description.

The ASSASSIN IV's ultra-silent operation is further enhanced by the use of three-phase, six-pole fan motors, which boast low voltage and power consumption. This efficient design is complemented by the inclusion of industrial-grade DM9 thermal paste, ensuring optimal heat conduction and long-lasting performance.

Additional features that set the ASSASSIN IV apart include an elegant cooler shroud, a snap-in reloadable 120mm fan frame with two height levels, an optional third fan bracket with multiple height adjustability, and a magnetic top fan cover for streamlined installation.

In summary, the ASSASSIN IV 120/140mm Premium CPU Air Cooler is an exceptional choice for those who value a cooler that is both aesthetically pleasing and capable of delivering high-performance cooling efficiency. Its user-friendly design and compatibility with a range of CPU sockets make it a top contender in the market for premium air cooling solutions.

DeepCool ASSASSIN IV Features

  • Seven heat pipes and newly designed 120 and 140mm FDB fans
  • Optimal air flow and maximum compatibility
  • Whisper-quiet cooler
  • ASSASSIN IV's case is clean, sleek, and helps channel air through the fin towers

Key Features

  • High-performance CPU air cooler with dual 120mm and 140mm FDB fans for efficient cooling
  • Sophisticated design with dual black-coated fin towers and elegant cooler shroud
  • Versatile functionality with switchable Quiet and Performance modes
  • Compatible with a wide range of CPU sockets, offering unobstructed RAM clearance
  • Ultra-silent operation with three-phase, six-pole fan motors and low power consumption
  • User-friendly installation, featuring a magnetic top fan cover and optional third fan bracket

What's in the box:

  • DeepCool ASSASSIN IV 120/140mm Premium CPU Air Cooler
  • Mounting Bracket
  • Mounting Hardware
  • DeepCool 6 Year Limited Warranty
