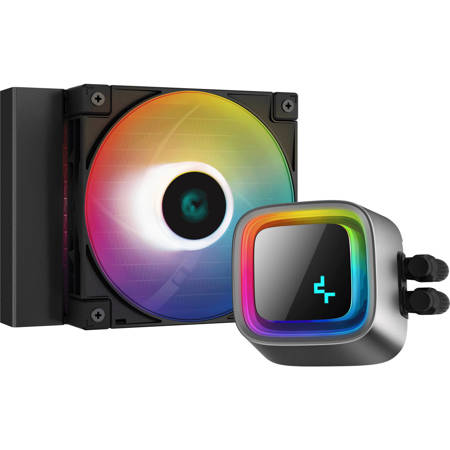

DeepCool LS320 120mm High-Performance ARGB Liquid CPU Cooler

SKU: DCRLS32BKMG1

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

DeepCool LS320 Specifications

  • Radiator Material

    Aluminum

  • Application For

    Intel:LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
    AMD: AM5/AM4

  • Tube length

    12.20" (310mm)

  • Pump Speed

    3100 RPM +/-10%

  • Pump Noise

    19 dB(A)

  • Pump Connector

    3-pin

  • Pump Rated Voltage

    12 VDC

  • Pump Rated Current

    0.47 A

  • Pump Power Consumption

    5.64 W

  • Fan Speed

    500-2250 RPM +/-10%

  • Fan Airflow

    85.85 CFM

  • Fan Air Pressure

    3.27 mmAq

  • Fan Noise

    <=32.9 dB(A)

  • Fan Connector

    4-pin PWM

  • Bearing Type

    Fluid Dynamic Bearing

  • Fan Rated Voltage

    12 VDC

  • Fan Rated Current

    0.29 A

  • Fan Power Consumption

    3.48 W

  • LED Type

    Addressable RGB LED

  • LED Connector

    3-pin(+5V-D-G)

  • LED Rated Voltage

    5 VDC

  • LED Power Consumption

    2.2 W (PUMP)/ 1.8 W (FAN)

  • Dimensions (L x W x H)

    Radiator: 6.25 x 4.72 x 1" (159 x 120 x 27mm)
    Pump: 3.38 x 2.91 x 2.24" (86 x 74 x 57mm)
    Fan: 4.72 x 4.72 x 0.98" (120 x 120 x 25mm)

  • Weight

    2.21 lbs (1.03kg)

  • UPC Code

    6933412727491

About DeepCool LS320

What sets the DeepCool LS320 High-Performance ARGB Liquid CPU Cooler apart is its superior cooling capabilities and low-noise efficiency, making it an ideal choice for gamers and high-end system users. This premium liquid CPU cooler is equipped with a 120mm radiator, an FC120 A-RGB PWM fan, and an innovative infinity mirror cap design, ensuring optimal cooling performance while adding a touch of style to your setup.

Built on Deepcool's 4th Generation high-performance water pump, this cooler features an improved microchannel design for optimal coolant flow. Its powerful three-phase drive motor operates up to 3100 RPM, and the thick solid copper base ensures a seamless match for efficient heat dissipation.

Experience excellent cooling and superb silent efficiency with the included FC120 fans. These fans offer enhanced static pressure and concentrated airflow, thanks to their fluid dynamic bearings. With a dynamic PWM range of 500-2250 RPM, supreme airflow of 85.85 CFM, and a long operational lifespan of 50,000 hours, this cooler is designed to deliver consistent performance.

Installation is a breeze with the newly designed mounting brackets, ensuring secure and safe fastening on both Intel and AMD platforms. The cooler is compatible with a wide range of Intel and AMD sockets, making it a versatile choice for various systems.

The DeepCool LS320 ARGB Liquid CPU Cooler also allows you to customize your look with its new infinity mirror pump face design. This design projects two light loops for a mesmerizing visual effect and features an independently rotatable logo plate. An additional blank plate is provided for further customization.

Synchronize your setup with RGB lighting effects for a cohesive and visually appealing look. The cooler supports RGB software and motherboard synchronization, allowing you to control different lighting effects. Even without a controller, the cooler enables a default Auto-RGB rainbow effect, ensuring limited functionality on motherboards without 5V A-RGB headers.

In summary, the DeepCool LS320 High-Performance ARGB Liquid CPU Cooler is not just a cooling solution, but a blend of performance, aesthetics, and customization, making it a worthy addition to any high-performance system.

DeepCool LS320 Features

  • Improved microchannel design ensures optimal coolant flow
  • Powerful three-phase drive motor up to 3100 RPM
  • Thick solid copper base with a seamless match

Key Features

  • High-performance ARGB liquid CPU cooler with 120mm radiator for efficient heat dissipation
  • 4th Generation water pump with improved microchannel design ensures optimal coolant flow
  • FC120 A-RGB PWM fan with dynamic 500-2250 RPM range and 85.85 CFM airflow for silent operation
  • Infinity mirror cap design with rotatable logo plate for customizable aesthetics
  • Easy installation with secure mounting brackets compatible with Intel and AMD sockets
  • RGB lighting effects with motherboard synchronization and default Auto-RGB rainbow effect

What's in the box:

  • DeepCool LS320 120mm High-Performance ARGB Liquid CPU Cooler
  • Mounting Brackets
  • Cables
  • Mounting Hardware
  • DeepCool 5 Year Limited Warranty
