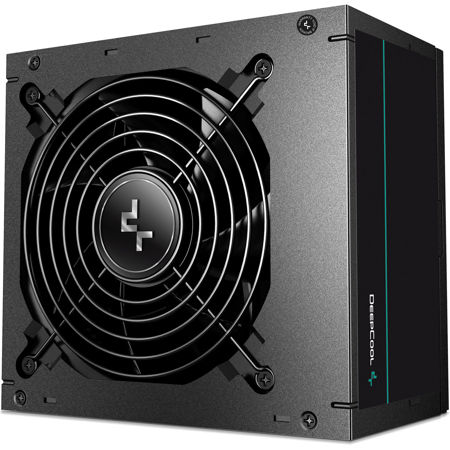

DeepCool PM850D 850W 80+ Gold Certified Non-Modular ATX Power Supply Unit, Black

DeepCool PM850D 850W 80+ Gold Certified Non-Modular ATX Power Supply Unit, Black

SKU: DCRM850DABUS
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

DeepCool PM850D Specifications

  • Color

    Black

  • Type

    ATX12V V2.4

  • Connectors

    1x 20+4-Pin ATX Motherboard
    2x 4+4-Pin EPS CPU
    3x 6+2-Pin PCIe
    6x 15-Pin SATA
    3x 4-Pin Peripheral / Molex

  • 80PLUS Certifications

    GOLD

  • Fan Size

    120mm

  • Total Wattage

    850W

  • Fan Bearing

    Hypro Bearing

  • Topology

    Active PFC + Full Bridge SRC LLC + DC to DC

  • Capacitors

    Japanese Bulk Capacitor

  • Power Good Signal

    100-150ms

  • Hold Up Time

    >=16ms(75% Load)

  • Efficiency

    >=90% Under Typical Load(50% Loading)

  • Protection

    OPP/OVP/SCP/OTP/OCP/UVP

  • Operation Temperature

    32 to 104 Degree F (0-40 Degree C)

  • Regulatory

    TUV/cTUVus/CCC/CE/FCC/UKCA/EAC/BIS/RCM/CAN ICES-003(B)/NMB-003(B)

  • Erp Regulation

    ErP(2014)

  • MTBF

    100,000 Hours

  • Dimensions (W x L x H)

    5.9 x 5.5 x 3.4" (150 x 140 x 86mm)

  • UPC Code

    6933412701675

About DeepCool PM850D

DeepCool PM850D Series non-modular power supplies are certified 80 PLUS Gold for efficient power delivery with great performance at a great value.

80 Plus Gold Certified
Guarantees a minimum efficiency of 90% or higher under typical loads for reliable power delivery with little waste.

Quality Topology
For solid power performance and minimal signal noise, the PM-D series PSU features a full-bridge LLC topology with DC-DC conversion and Japanese bulk capacitors that delivers terrific reliability.

Built To Spec
Made to meet modern power supply design standards for consistent voltage stability, each PM-D power supply is also compliant with Intel PSU guidelines that support instant-on power from sleep or standby modes.

80 PLUS Gold
80 PLUS Gold certified - Up to 87-90% efficient (20-100% Loading)

Silent and High Performance Fan
120mm silent fan has temperature control function to keep low noise

Enough Power To Go Around
The PM850D features three independent PCIe outputs and two EPS connectors for continuous high quality power that supports the latest high-end graphics cards and motherboards for gaming excellence.

Efficiency Throughout
The PM-D series power supplies are compliant with the 2014 ErP regulations on energy savings and also the IEC 62368-1 for safety standards.

Peace of Mind
Safeguard your power source with well-round circuit protection including OPP/OVP/SCP/OTP/OCP/UVP.

DeepCool PM850D Features

  • 80 PLUS Gold certified - Up to 87-90% efficient (20-100% Loading)
  • Full-Bridge LLC Topology
  • 120mm silent fan has temperature control function to keep low noise
  • Compliant with Intel PSU guidelines

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 80 PLUS Gold certified - Up to 87-90% efficient (20-100% Loading)
  • Full-Bridge LLC Topology
  • 120mm silent fan has temperature control function to keep low noise
  • Compliant with Intel PSU guidelines

What's in the box:

  • DeepCool PM850D 850W 80+ Gold Certified Non-Modular ATX Power Supply Unit (Black)
  • 20+4-Pin x1 Main Power Connector Cable
  • 4+4-Pin x2 CPU Cable
  • 3x 6+2-Pin x1 PCI-E Cable
  • 2x SATA 3 Cable
  • 4-Pin x3 Peripheral Cable
  • DeepCool 5 Year Limited Warranty
