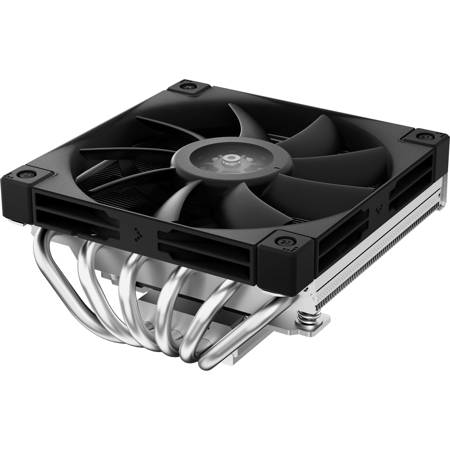

DeepCool AN600 120mm Top Flow Low Profile CPU Air Cooler

SKU: DCRN600BNMG

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

DeepCool AN600 Specifications

  • Application For

    Intel: LGA1700/1200/1151/1150/1155
    AMD: AM5/AM4

  • Heatpipe

    6mm x6 pcs

  • Fan Speed

    500-1850 RPM +/-10%

  • Fan Airflow

    61.56 CFM

  • Fan Air Pressure

    1.97 mmAq

  • Fan Noise

    <=24.4 dB(A)

  • Fan Speed (with LSP)

    500-1250 RPM +/-10%

  • Fan Airflow (with LSP)

    41.51 CFM

  • Fan Air Pressure (with LSP)

    1.19 mmAq

  • Fan Noise (with LSP)

    <=20 dB(A)

  • Fan Connector

    4-pin PWM

  • Bearing Type

    Fluid Dynamic Bearing

  • Fan Rated Voltage

    12 VDC

  • Fan Rated Current

    0.27 A

  • Fan Power Consumption

    3.24 W

  • LED Type

    White LED

  • Dimensions (L x W x H)

    4.80 x 4.72 x 2.63" (122 x 120 x 67mm)
    Heatsink: 4.76 x 4.72 x 2" (121 x 120 x 52mm)
    Fan: 4.72 x 4.72 x 0.59" (120 x 120 x 15mm)

  • Weight

    22.15 oz (628g)

  • UPC Code

    6933412728146

About DeepCool AN600

Take your computer's performance to the next level with the AN600 120mm Top Flow Low Profile CPU Air Cooler. This compact yet powerful cooler is designed to deliver an impressive 180W of cooling power to your CPU, while simultaneously keeping your RAM modules cool. It's the perfect solution for ITX motherboards, and can accommodate RAM modules up to 40mm tall.

The AN600 is more than just a CPU cooler. It's a comprehensive cooling solution that leverages a 120mm high airflow fan and an innovative overhanging design. This design allows the AN600 to actively cool your RAM modules, ensuring optimal performance even under heavy loads.

The cooling prowess of the AN600 is further enhanced by its 62 aluminum fins, 6 optimized heatpipes, and a raised copper coldplate. Despite its low-profile stature of just 67mm, this CPU cooler packs a serious punch when it comes to cooling potential.

The AN600 also features a slim 120mm PWM-enabled FDB fan that provides top-down airflow. This design pushes a massive volume of air through the fin array and down onto the RAM and VRMs below, ensuring comprehensive cooling across your system. With 6 visible stators, the AN600 achieves this high level of performance while maintaining a noise level below 24.4 dB(A). For those seeking even quieter operation, a low-noise adapter cable is included.

Installation is a breeze with the AN600's all-metal backplate. This sturdy component not only simplifies the installation process but also evenly distributes pressure from the rear of the motherboard. This provides reinforcement behind the CPU socket, ensuring a secure and stable fit for your cooler.

In summary, the AN600 120mm Top Flow Low Profile CPU Air Cooler is a high-performance, low-profile cooling solution that delivers superior cooling for your CPU and RAM modules, ensuring optimal performance and longevity for your system.

DeepCool AN600 Features

  • Provides 180W of cooling to the CPU while also cooling the RAM modules
  • 120mm high airflow fan and an overhanging design
  • Compatible with ITX motherboards

Key Features

  • High-performance AN600 120mm Top Flow Low Profile CPU Air Cooler for efficient system cooling
  • Provides 180W of cooling power to CPU and actively cools RAM modules up to 40mm tall
  • Slim 120mm PWM-enabled FDB fan delivers top-down airflow for comprehensive system cooling

What's in the box:

  • DeepCool AN600 120mm Top Flow Low Profile CPU Air Cooler
  • Mounting Bracket
  • Adapter Cable
  • Mounting Hardware
  • DeepCool 3 Year Limited Warranty
