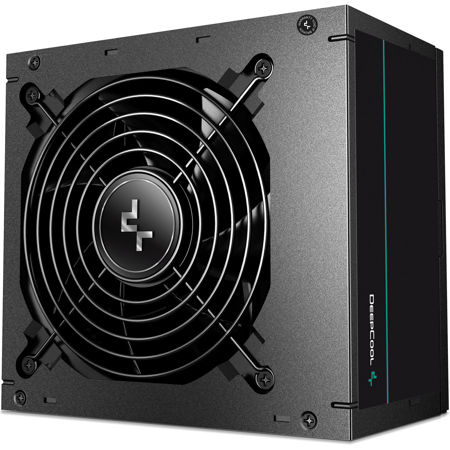

DeepCool PM750D 750W 80+ Gold Certified Non-Modular ATX Power Supply Unit, Black

SKU: DCRPM750FAUS

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What does the 80 PLUS Gold Certification mean for the DeepCool PM750D Power Supply Unit?

The 80 PLUS Gold Certification means that the power supply unit is highly energy efficient. It guarantees a minimum of 90% efficiency under typical loads, which means less energy waste and a more environmentally friendly operation.

What is the significance of the full-bridge LLC topology and DC-DC conversion in the DeepCool PM750D?

The full-bridge LLC topology with DC-DC conversion ensures solid power performance with minimal signal noise. This means the power supply unit can deliver consistent and stable power to your devices.

What are the benefits of the silent 120mm fan in the DeepCool PM750D?

The silent 120mm fan has a temperature control function. This means it can adjust its speed based on the temperature, ensuring optimal performance while keeping noise levels low.

What kind of devices can the DeepCool PM750D power supply unit support?

The DeepCool PM750D power supply unit can support a wide range of devices. Thanks to its three independent PCIe outputs and two EPS connectors, it's suitable for high-end graphics cards and motherboards, making it ideal for gaming systems and other demanding setups.

What kind of protections does the DeepCool PM750D power supply unit offer?

The DeepCool PM750D power supply unit offers comprehensive circuit protection. This includes Over Power Protection (OPP), Over Voltage Protection (OVP), Short Circuit Protection (SCP), Over Temperature Protection (OTP), Over Current Protection (OCP), and Under Voltage Protection (UVP). These features provide peace of mind by safeguarding your power source.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

DeepCool PM750D Specifications

  • Color

    Black

  • Type

    ATX12V V2.4

  • Connectors

    1x 20+4-Pin ATX Motherboard
    2x 4+4-Pin EPS CPU
    3x 6+2-Pin PCIe
    6x 15-Pin SATA
    3x 4-Pin Peripheral / Molex

  • 80PLUS Certifications

    GOLD

  • Fan Size

    120mm

  • Total Wattage

    750W

  • Fan Bearing

    Hypro Bearing

  • Topology

    Active PFC + Full Bridge SRC LLC + DC to DC

  • Capacitors

    Japanese Bulk Capacitor

  • Power Good Signal

    100-150ms

  • Hold Up Time

    >=16ms(75% Load)

  • Efficiency

    >=90% Under Typical Load(50% Loading)

  • Protection

    OPP/OVP/SCP/OTP/OCP/UVP

  • Operation Temperature

    32 to 104 Degree F (0-40 Degree C)

  • Regulatory

    TUV/cTUVus/CCC/CE/FCC/UKCA/EAC/BIS/RCM/CAN ICES-003(B)/NMB-003(B)

  • Erp Regulation

    ErP(2014)

  • MTBF

    100,000 Hours

  • Dimensions (W x L x H)

    5.9 x 5.5 x 3.4" (150 x 140 x 86mm)

  • UPC Code

    6933412709541

About DeepCool PM750D

For those seeking a reliable and high-performance power solution, the DeepCool PM750D 750W 80+ Gold Certified Non-Modular ATX Power Supply Unit is an excellent choice. This stylish black unit is engineered for efficiency, boasting an 80 PLUS Gold certification that guarantees a minimum efficiency of 90% under typical loads. This means you can count on consistent, environmentally friendly power delivery with minimal waste.

The PM750D is more than just efficient; it's also designed for superior performance. Its full-bridge LLC topology with DC-DC conversion and Japanese bulk capacitors ensure solid power performance with minimal signal noise. This durable power supply unit is built to meet modern design standards, offering consistent voltage stability and compliance with Intel PSU guidelines that support instant-on power from sleep or standby modes.

The 120mm silent fan incorporated into the PM750D comes with a temperature control function, ensuring optimal performance while maintaining low noise levels. This power supply unit is capable of supporting the latest high-end graphics cards and motherboards, thanks to its three independent PCIe outputs and two EPS connectors. It delivers continuous high-quality power, making it ideal for gaming excellence and other demanding systems.

The PM750D is compliant with the 2014 ErP regulations on energy savings and the IEC 62368-1 safety standards, ensuring efficiency and safety throughout its operation. Additionally, it offers comprehensive circuit protection, including OPP/OVP/SCP/OTP/OCP/UVP, providing peace of mind as it powers your electronic devices.

In conclusion, the DeepCool PM750D 750W 80+ Gold Certified Non-Modular ATX Power Supply Unit is a reliable, efficient, and high-performance power solution designed to meet the needs of modern, power-hungry devices.

DeepCool PM750D Features

  • 80 PLUS Gold certified - Up to 87-90% efficient (20-100% Loading)
  • Full-Bridge LLC Topology
  • 120mm silent fan has temperature control function to keep low noise
  • Compliant with Intel PSU guidelines

Key Features

  • 80 PLUS Gold Certified for energy-efficient, environmentally friendly power delivery
  • High-performance design with full-bridge LLC topology and DC-DC conversion
  • Silent 120mm fan with temperature control for optimal performance and low noise
  • Three independent PCIe outputs and two EPS connectors for high-end graphics cards and motherboards
  • Compliant with 2014 ErP regulations and IEC 62368-1 safety standards for efficiency and safety
  • Comprehensive circuit protection including OPP/OVP/SCP/OTP/OCP/UVP for peace of mind

What's in the box:

  • DeepCool PM750D 750W 80+ Gold Certified Non-Modular ATX Power Supply Unit (Black)
  • 20+4-Pin x1 Main Power Connector Cable
  • 4+4-Pin x2 CPU Cable
  • 3x 6+2-Pin x1 PCI-E Cable
  • 2x SATA 3 Cable
  • 4-Pin x3 Peripheral Cable
  • DeepCool 5 Year Limited Warranty
