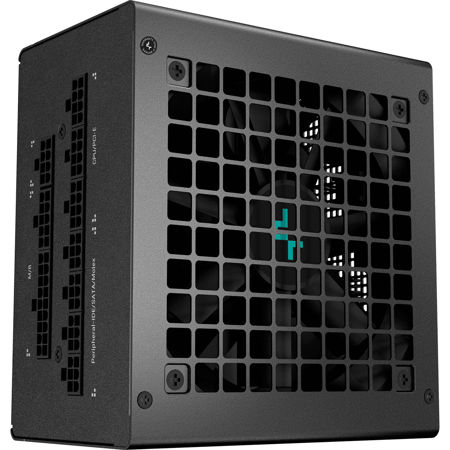

DeepCool PQ850M 850W 80+ Gold Certified Fully Modular ATX Power Supply Unit, Black

SKU: DCRPQ85MF0US

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

DeepCool PQ850M Specifications

  • Color

    Black

  • Type

    ATX12V V2.4

  • Connectors

    1x 20+4-Pin ATX Motherboard
    2x 4+4-Pin EPS CPU
    3x 6+2-Pin PCIe
    8x 15-Pin SATA
    2x 6-Pin SATA / Peripheral
    3x 4-Pin Peripheral / Molex

  • Total Wattage

    850W

  • 80PLUS Certifications

    GOLD

  • Fan Size

    120mm

  • Fan Bearing

    FDB

  • Topology

    Active PFC + Full Bridge SRC LLC + DC to DC

  • Capacitors

    Full Japan Electrolytic Capacitors

  • Power Good Signal

    100-500ms

  • Hold Up Time

    >=16ms (90% load)

  • Efficiency

    >=90% Under Typical Load(50% Loading)

  • Protection

    OPP/OVP/SCP/OTP/OCP/UVP

  • Operation Temperature

    32 to 122 Degree F (0 - 50 Degree C) (derating from 100 % to 80 % from 40 Degree C to 50 Degree C)

  • Regulatory

    CCC/CE/FCC/TUV-SUD/cTUVus/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA

  • Erp Regulation

    ErP 2013

  • MTBF

    100,000 Hours

  • Dimensions (W x L x H)

    5.9 x 5.5 x 3.4" (150 x 140 x 86mm)

  • UPC Code

    6933412701958

About DeepCool PQ850M

Experience the pinnacle of power supply engineering with the DeepCool PQ850M 850W 80+ Gold Certified Fully Modular ATX Power Supply Unit. Designed for enthusiasts and professionals alike, this PSU is the cornerstone of high-performance PC systems, offering unparalleled efficiency and stability.

Crafted for Excellence: The PQ850M is a testament to DeepCool's unwavering commitment to superior quality and continuous innovation. This power supply unit is engineered to exceed the rigorous demands of today's cutting-edge computer hardware, ensuring that your system is powered by a reliable and robust foundation.

Go for Gold: Achieve exceptional energy efficiency with the 80+ Gold certification, a prestigious accolade that guarantees the PQ850M operates at a minimum of 90% efficiency at 50% load. This not only contributes to a greener environment by reducing energy consumption but also minimizes heat output and operational noise, making it an eco-friendly and user-friendly choice.

Fully Modular Design: Embrace the flexibility and convenience of a fully modular cable system. The PQ850M allows you to use only the cables you need, resulting in a cleaner build with improved airflow and aesthetics. This level of customization is ideal for builders seeking a tailored and streamlined setup.

Silent Operation: The PQ850M is equipped with a meticulously calibrated silent fan curve, striking the perfect balance between effective cooling and whisper-quiet operation. The Fluid Dynamic Bearing (FDB) fan, renowned for its low noise and extended lifespan, further enhances this silent profile. With an additional fan stop feature for low-temperature conditions and a rear fan control button for minimum speed settings, this PSU adapts to your acoustic preferences without compromising cooling performance.

Durability and Precision: Constructed with top-tier components, the PQ850M ensures a pristine power output quality. The modular board's direct connection to the circuit platform replaces traditional cables, providing added structural integrity and reducing electrical noise for a more stable and clean power delivery.

Stylish and Sleek: Encased in a sleek, black chassis, the PQ850M not only performs exceptionally but also adds a touch of elegance to your system's appearance. Its durable build is matched by a design that complements any high-end PC build.

In summary, the DeepCool PQ850M 850W 80+ Gold Certified Fully Modular ATX Power Supply Unit is the epitome of reliable, high-performance, efficient, durable, and stylish power delivery. It is the ideal choice for users who demand the best for their computers, servers, and other electronic devices requiring a stable and efficient power supply.

DeepCool PQ850M Features

  • Ultra-quiet operation with silent fan modes
  • PQ-M Series achieves 90% efficiency at 50% system loads
  • Optimized thermal performance
  • Longer lasting lifespan

Key Features

  • High-performance 850W ATX Power Supply Unit, ideal for powering high-end PC systems
  • 80+ Gold Certified for superior energy efficiency and reduced operational noise
  • Fully modular design for customizable cable management and improved airflow
  • Silent operation with Fluid Dynamic Bearing (FDB) fan and adjustable fan controls
  • Durable construction with direct circuit platform connection for clean power output
  • Sleek, black design that adds a stylish touch to any computer setup

What's in the box:

  • DeepCool PQ850M 850W 80+ Gold Certified Fully Modular ATX Power Supply Unit (Black)
  • 20+4-Pin x1 Main Power Connector Cable
  • 2x 4+4-Pin x2 CPU Cable
  • 3x 6+2-Pin x1 PCI-E Cable
  • 2x SATA x4 Cable
  • SATA x 2+4-Pin x2 Peripheral Cable
  • 4-Pin x3 Peripheral Cable
  • DeepCool 10 Year Limited Warranty
