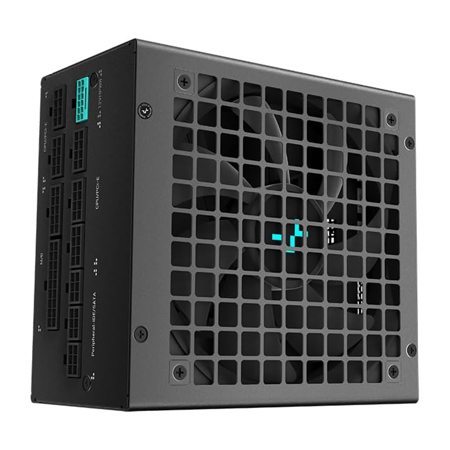

DeepCool PX850G 850W 80+ Gold Certified Fully Modular ATX 3.0 Power Supply Unit, Black

SKU: DCRPX850FCBS

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the ATX 3.0 standard that the DeepCool PX850G meets?

ATX 3.0 is the latest standard for power supply units. It ensures compatibility with a wide range of components and provides stable and reliable power.

What does the 80 PLUS GOLD and CYBENETICS GOLD certification mean?

These certifications indicate that the DeepCool PX850G power supply unit operates with high efficiency under typical load conditions, making it a power-saving choice for your PC.

What is the benefit of the semi-fanless operation in the DeepCool PX850G?

The semi-fanless operation allows the 135mm FDB fan to dynamically adjust from its zero RPM state once the system load hits a certain threshold. This ensures optimal cooling and quiet operation.

What safeguards does the DeepCool PX850G power supply unit offer?

The DeepCool PX850G includes comprehensive safeguards like Over Power Protection (OPP), Over Voltage Protection (OVP), Short Circuit Protection (SCP), Over Temperature Protection (OTP), Over Current Protection (OCP), and Under Voltage Protection (UVP) to protect your power supply unit and PC components from potential damage.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

DeepCool PX850G Specifications

  • Type

    ATX12V V3.0

  • Total Connectors

    1x 20+4-Pin ATX Motherboard
    2x 4+4-Pin EPS CPU
    3x 6+2-Pin PCIe
    4x 4-Pin Peripheral / Molex
    8x 6-Pin SATA / Peripheral
    1x 16-Pin PCIe (12VHPWR)

  • Total Wattage

    850W

  • Efficiency certification

    80Plus GOLD/Cybenetics_GOLD

  • Fan Size

    135mm

  • Fan Bearing

    FDB (Fluid Dynamic Bearing)

  • Topology

    Active PFC + Half Bridge SRC LLC + DC to DC

  • Capacitors

    Full Japan Electrolytic Capacitors

  • Power Good Signal

    100-150ms

  • Hold Up Time

    >=16ms

  • Efficiency

    >=90% Under Typical Load(50% Loading)

  • Protection

    OPP/OVP/SCP/OTP/OCP/UVP

  • Operation Temperature

    0 - 40 Degree C

  • Regulatory

    CE/FCC/CCC/TUV-RH/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA/BIS

  • Erp Regulation

    ErP 2014

  • Environment Protection

    WEEE/RoHS/Triman

  • MTBF

    100,000 Hours

  • Dimensions (W x L x H)

    5.90 x 6.29 x 3.38" (150 x 160 x 86mm)

  • UPC Code

    6933412716747

About DeepCool PX850G

Make your PC's performance soar with the DeepCool PX850G 850W 80+ Gold Certified Fully Modular ATX 3.0 Power Supply Unit. This cutting-edge power supply unit (PSU) is designed to meet the latest ATX 3.0 standard, ensuring compatibility with a wide range of components.

The PX850G is equipped with a dedicated 12VHPWR, 2 EPS, and 3 PCI-e ports, providing stable and reliable power to your PC's components. It's engineered to handle power spikes effortlessly, offering three times the total GPU and twice the total system power for 0.1 ms. This ensures your PC operates smoothly, whether you're using legacy hardware or the latest next-generation components.

This power supply unit is 80 PLUS GOLD and CYBENETICS GOLD certified, a testament to its high efficiency under typical load conditions. The PX850G is built with full Japanese 105C capacitors, known for their superior quality and reliability. This robust build allows the PSU to operate at altitudes up to 5000 meters above sea level without compromising its performance.

The DeepCool PX850G features a dual main capacitor topology, ensuring a hold-up time of >= 16ms under full load. This contributes to the unit's reliable stability, even under demanding conditions.

For power-hungry GPUs, the PX850G is equipped with the new PCI-e Gen 5.0 12VHPWR cable, providing up to 600W of power. This ensures your graphics card gets the power it needs to deliver top-notch performance.

The PX850G also offers the flexibility of semi-fanless operation. In hybrid mode, the 135mm FDB fan dynamically adjusts from its zero RPM state once the system load hits a certain threshold. This ensures optimal cooling and quiet operation.

For peace of mind, the DeepCool PX850G comes with a comprehensive set of safeguards, including Over Power Protection (OPP), Over Voltage Protection (OVP), Short Circuit Protection (SCP), Over Temperature Protection (OTP), Over Current Protection (OCP), and Under Voltage Protection (UVP). These features ensure your power supply unit and PC components are protected from potential damage.

In conclusion, the DeepCool PX850G 850W 80+ Gold Certified Fully Modular ATX 3.0 Power Supply Unit is a reliable, efficient, and versatile solution for powering your PC.

DeepCool PX850G Features

  • Newly designed power supply that meets the latest ATX 3.0 standard
  • 80 PLUS GOLD and CYBENETICS GOLD certified
  • PX850G can keep the hold-up time to >= 16ms under full load
  • Equipped with the new PCI-e Gen 5.0 12VHPWR cable, the PX-G provides up to 600W for power hungry GPUS

Key Features

  • 850W power supply unit designed to meet the latest ATX 3.0 standard
  • Equipped with dedicated 12VHPWR, 2 EPS, and 3 PCI-e ports for stable power
  • 80 PLUS GOLD and CYBENETICS GOLD certified for high efficiency under typical load
  • Features full Japanese 105C capacitors for reliable and solid power
  • Offers semi-fanless operation with a 135mm FDB fan for optimal cooling
  • Includes comprehensive safeguards like OPP, OVP, SCP, OTP, OCP, and UVP for component protection

What's in the box:

  • DeepCool PX850G 850W 80+ Gold Certified Fully Modular ATX 3.0 Power Supply Unit (Black)
  • 20+4-Pin x1 Main Power Connector Cable
  • 2x 4+4-Pin x1 CPU Cable
  • 3x 6+2-Pin x1 PCI-E Cable
  • 2x SATA x4 Cable
  • 16-Pin x1 12VHPWR Cable
  • 4-Pin x4 Peripheral Cable
  • DeepCool 10 Year Limited Warranty
