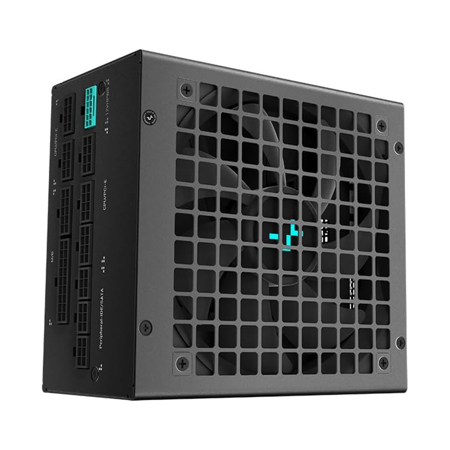

DeepCool PX1000G 1000W 80+ Gold Certified Fully Modular ATX 3.0 Power Supply Unit, Black

SKU: DCRPXAGFCBUS

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What does the 80+ Gold certification mean for the DeepCool PX1000G power supply unit?

The 80+ Gold certification indicates that the DeepCool PX1000G power supply unit is highly energy efficient. This means it wastes less power in the form of excess heat, saving energy and reducing environmental impact.

What does 'fully modular' mean in the context of this power supply unit?

A fully modular power supply unit, like the DeepCool PX1000G, allows you to customize the cables and connectors according to your needs. This provides more flexibility and convenience, as you only need to connect the cables you will use, improving airflow and cleanliness inside your PC case.

What is the purpose of the 135mm FDB fan in the DeepCool PX1000G power supply unit?

The 135mm FDB fan in the DeepCool PX1000G power supply unit is designed to provide optimal cooling. It operates in a semi-fanless mode, dynamically adjusting from a zero RPM state once the system load hits a certain threshold.

What safeguards are included in the DeepCool PX1000G power supply unit?

The DeepCool PX1000G power supply unit includes comprehensive safeguards such as Over Power Protection (OPP), Over Voltage Protection (OVP), Short Circuit Protection (SCP), Over Temperature Protection (OTP), Over Current Protection (OCP), and Under Voltage Protection (UVP) to ensure safe operation.

Can the DeepCool PX1000G power supply unit be used for high-end gaming systems?

Yes, the DeepCool PX1000G power supply unit is capable of providing stable power to high-end gaming systems. It is equipped with a PCI-e Gen 5.0 12VHPWR cable that can provide up to 600W for power-hungry GPUs.

Shopper : Why Did You Choose This?Justin R : found from PC parts Picker

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

DeepCool PX1000G Specifications

  • Type

    ATX12V V3.0

  • Total Connectors

    1x 20+4-Pin ATX Motherboard
    2x 4+4-Pin EPS CPU
    3x 6+2-Pin PCIe
    4x 4-Pin Peripheral / Molex
    8x 6-Pin SATA / Peripheral
    1x 16-Pin PCIe (12VHPWR)

  • Total Wattage

    1000W

  • Efficiency certification

    80Plus GOLD/Cybenetics_Platinum

  • Fan Size

    135mm

  • Fan Bearing

    FDB (Fluid Dynamic Bearing)

  • Topology

    Active PFC + Half Bridge SRC LLC + DC to DC

  • Capacitors

    Full Japan Electrolytic Capacitors

  • Power Good Signal

    100-150ms

  • Hold Up Time

    >=16ms

  • Efficiency

    >=90% Under Typical Load(50% Loading)

  • Protection

    OPP/OVP/SCP/OTP/OCP/UVP

  • Operation Temperature

    0 - 40 Degree C

  • Regulatory

    CE/FCC/CCC/TUV-RH/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA/BIS

  • Erp Regulation

    ErP 2014

  • Environment Protection

    WEEE/RoHS/Triman

  • MTBF

    100,000 Hours

  • Dimensions (W x L x H)

    5.90 x 6.29 x 3.38" (150 x 160 x 86mm)

About DeepCool PX1000G

Bring reliable and high-performance power to your electronic devices with the DeepCool PX1000G 1000W 80+ Gold Certified Fully Modular ATX 3.0 Power Supply Unit. Designed to meet the latest ATX 3.0 standard, this efficient and durable power supply unit is equipped with a dedicated 12VHPWR, 2 EPS, and 3 PCI-e ports, ensuring stable power delivery to a wide range of components.

Experience the power of past, present, and future with the PX1000G's ability to provide three times the total GPU and twice the total system power for 0.1 ms, effectively eliminating power spikes. This stylish black power supply unit is designed to provide stable and consistent power for both legacy and next-generation PCs, making it a future-proof choice for your power needs.

The PX1000G is 80 PLUS GOLD and CYBENETICS PLATINUM certified, ensuring high efficiency under typical load conditions. This not only makes it an energy-efficient choice but also an environmentally friendly one.

Constructed with premium quality Japanese 105C capacitors, this power supply unit guarantees solid and reliable power. It's built to operate at altitudes up to 5000 meters above sea level, demonstrating its robust and durable nature.

The PX1000G features a dual main capacitor topology, maintaining a hold-up time of >= 16ms under full load for reliable stability. It's also equipped with the new PCI-e Gen 5.0 12VHPWR cable, providing up to 600W for power-hungry GPUs.

Switch to semi-fanless operation with the PX1000G's hybrid mode. The 135mm FDB fan dynamically adjusts from its zero RPM state once the system load hits a certain threshold, ensuring optimal cooling and performance.

For peace of mind, the PX1000G includes comprehensive safeguards such as OPP, OVP, SCP, OTP, OCP, and UVP. Trust in the DeepCool PX1000G 1000W 80+ Gold Certified Fully Modular ATX 3.0 Power Supply Unit for your power needs, a perfect blend of efficiency, performance, and reliability.

DeepCool PX1000G Features

  • Newly designed power supply that meets the latest ATX 3.0 standard
  • 80 PLUS GOLD and CYBENETICS PLATINUM certified
  • PX1000G can keep the hold-up time to >= 16ms under full load
  • Equipped with the new PCI-e Gen 5.0 12VHPWR cable, the PX-G provides up to 600W for power hungry GPUS

Key Features

  • High-performance 1000W power supply unit, ideal for powering a wide range of electronic devices
  • Premium quality construction with Japanese 105C capacitors for reliable and stable power
  • Features semi-fanless operation with a dynamic 135mm FDB fan for optimal cooling
  • Comprehensive safeguards including OPP, OVP, SCP, OTP, OCP, and UVP for ultimate peace of mind

What's in the box:

  • DeepCool PX1000G 1000W 80+ Gold Certified Fully Modular ATX 3.0 Power Supply Unit (Black)
  • 20+4-Pin x1 Main Power Connector Cable
  • 2x 4+4-Pin x1 CPU Cable
  • 3x 6+2-Pin x1 PCI-E Cable
  • 2x SATA x4 Cable
  • 16-Pin x1 12VHPWR Cable
  • 4-Pin x4 Peripheral Cable
  • DeepCool 10 Year Limited Warranty
