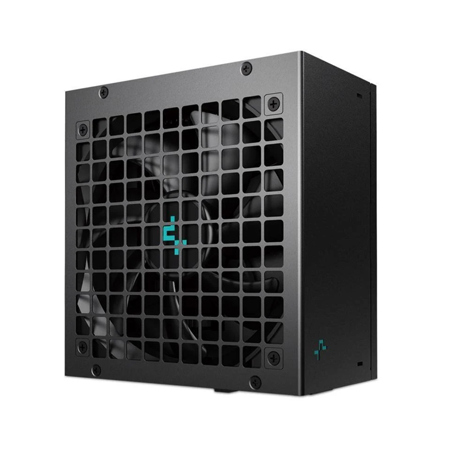

DeepCool PX1200G 1200W 80+ Gold Certified Fully Modular ATX 3.0 Power Supply Unit, Black

SKU: DCRPXCGF0BUS

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

DeepCool PX1200G Specifications

  • Type

    ATX12V V3.0

  • Total Connectors

    1x 20+4-Pin ATX Motherboard
    2x 4+4-Pin EPS CPU
    3x 6+2-Pin PCIe
    4x 4-Pin Peripheral / Molex
    8x 6-Pin SATA / Peripheral
    1x 16-Pin PCIe (12VHPWR)

  • Total Wattage

    1200W

  • Efficiency certification

    80Plus GOLD/Cybenetics_Platinum

  • Fan Size

    135mm

  • Fan Bearing

    FDB (Fluid Dynamic Bearing)

  • Topology

    Active PFC + Half Bridge SRC LLC + DC to DC

  • Capacitors

    Full Japan Electrolytic Capacitors

  • Power Good Signal

    100-150ms

  • Hold Up Time

    >=16ms

  • Efficiency

    >=90% Under Typical Load(50% Loading)

  • Protection

    OPP/OVP/SCP/OTP/OCP/UVP

  • Operation Temperature

    0 - 40 Degree C

  • Regulatory

    CE/FCC/CCC/TUV-RH/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA/BIS

  • Erp Regulation

    ErP 2014

  • Environment Protection

    WEEE/RoHS/Triman

  • MTBF

    100,000 Hours

  • Dimensions (W x L x H)

    5.90 x 6.29 x 3.38" (150 x 160 x 86mm)

  • UPC Code

    6933412716907

About DeepCool PX1200G

The DeepCool PX1200G is a newly designed power supply that meets the latest ATX 3.0 standard. With a dedicated 12VHPWR, 2 EPS, and 3 PCI-e ports, the PX1200G provides stable power for a wide range of components.

Past, Present, and Future
With the ability to provide three times the total GPU and twice the total system power for 0.1 ms, power spikes will never be an issue. The PX1200G will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.

The Glory of Gold ATX 3.0 Compliance Product
80 PLUS GOLD and CYBENETICS PLATINUM certified to ensure high efficiency under typical load conditions.

Premium Quality
Solid and reliable power is provided through the use of full Japanese 105C capacitors. Due to the high quality of the PSU build, the PX1200G will operate at altitudes up to 5000 meters above sea level.

Reliable Stability
Through the use of a dual main capacitor topology, the PX1200G can keep the hold-up time to >= 16ms under full load.

PCI-E 5.0 Power Perfected
Equipped with the new PCI-e Gen 5.0 12VHPWR cable, the PX-G provides up to 600W for power hungry GPUS.

Static to Dynamic
The PX1200G comes equipped with the option to switch into semi-fanless operation. In hybrid mode, the 135mm FDB fan will dynamically adjust out of its zero RPM state once the system load hits a certain threshold.

Peace of Mind
The PX1200G includes a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, and UVP.

DeepCool PX1200G Features

  • Newly designed power supply that meets the latest ATX 3.0 standard
  • 80 PLUS GOLD and CYBENETICS PLATINUM certified
  • PX1200G can keep the hold-up time to >= 16ms under full load
  • Equipped with the new PCI-e Gen 5.0 12VHPWR cable, the PX-G provides up to 600W for power hungry GPUS

Key Features

  • Newly designed power supply that meets the latest ATX 3.0 standard
  • 80 PLUS GOLD and CYBENETICS PLATINUM certified
  • PX1200G can keep the hold-up time to >= 16ms under full load
  • Equipped with PCI-e Gen 5.0 12VHPWR cable, the PX-G provides up to 600W for power hungry GPUS

What's in the box:

  • DeepCool PX1200G 1200W 80+ Gold Certified Fully Modular ATX 3.0 Power Supply Unit (Black)
  • 20+4-Pin x1 Main Power Connector Cable
  • 2x 4+4-Pin x1 CPU Cable
  • 3x 6+2-Pin x1 PCI-E Cable
  • 2x SATA x4 Cable
  • 16-Pin x1 12VHPWR Cable
  • 4-Pin x4 Peripheral Cable
  • DeepCool 10 Year Limited Warranty
