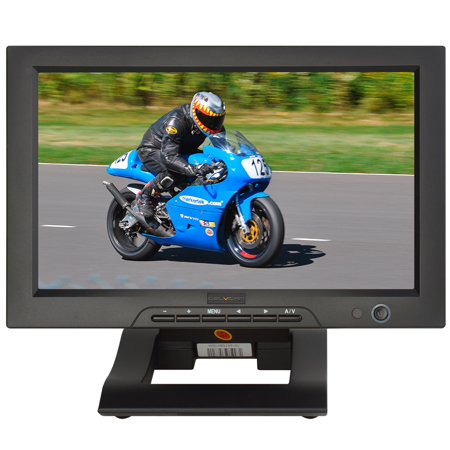

Delvcam SDI10-16X9 10" 3G-SDI/HDMI Widescreen LCD Monitor with SDI Loop Out
See all Delvcam items

Delvcam SDI10-16X9 10" 3G-SDI/HDMI Widescreen LCD Monitor with SDI Loop Out, 1024x600 Resolution

SKU: DCSDI1016X9
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Delvcam SDI10-16X9 Specifications

  • Panel Size

    10.1" TFT LCD (16:9)

  • Resolution

    1024x600, supports up to 1920x1080

  • Brightness

    250cd/m2

  • Contrast

    500:1

  • Viewing Angle (H/V)

    140deg. / 110deg.

  • Input Voltage

    DC 12V (XLR DC Connection)

  • Input Signal

    SDI, HDMI, YPbPr, AV1/AV2

  • SDI/HDMI/YPbPr Mode

    480i/p, 576i/p, 720p, 1080i (50/60), 1080p (50/60)

  • Color System

    PAL /NTSC

  • Current

    500mA (under 800x600-60Hz)

  • Standby Current

    50mA Max

  • Power Consumption

    6W Max

  • Audio Output

    250mW

  • Speaker

    1x (back)

  • Ear Phone Jack

    1x 3.5mm jack

  • Mount

    75mm Standard VESA

  • Dimensions (L x W x D)

    10.1 x 6.7 x 1.45" / 25.65 x 17.02 x 3.68cm

  • Weight

    2.5lbs / 1.13kg

About Delvcam SDI10-16X9

Designed for professional monitoring at a lower cost, the Delvcam DELV-SDI10-16x9 is a high resolution 10" SDI monitor that's perfect for DP's and other field users. It offers complete flexibility with 3G-SDI, HDMI and YPbPr component video input options.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Delvcam SDI10-16X9 10 " 3G-SDI/HDMI Widescreen LCD Monitor with SDI Loop Out
  • Delvcam 90 Day Parts and Labor Warranty
