Delvcam DELV-WFORM-7 7" 3G-SDI/HDMI IPS LED Monitor, V-Mount Battery Plate
See all Delvcam items

Delvcam DELV-WFORM-7 7" Camera-Top 3G-SDI/HDMI IPS LED Monitor with V-Mount Battery Plate and Video Waveform, 1280x800

SKU: DCWFRM7SDIVM
(1)

This item is no longer available.

Recommended Items

undefined undefined: Picture 1 regular

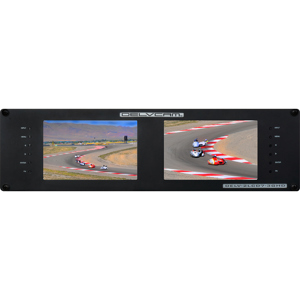

Delvcam Dual 7" Broadcast 3GHD/SD Multiformat IPS LED Rackmount Video Monitor
$930.95
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2016-09-05T09:07:23

Rated 4 out of 5

Great Deal For Price

Use this with my Mark ii and Mark iii. I found that using the canon battery instead of the sony batteries work best. The sony batteries seem to cut out and delay signal to monitor. Plates are included. There is a slight delay in signal when you hit record. Image quality is clean, however I use this product only for framing and focus, Histograms are nice to have.

SHIPPING A.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Delvcam DELV-WFORM-7 Specifications

  • Display Type

    7" IPS LCD
    LED backlit

  • Resolution

    1280x800, supports up to 1920x1080

  • Aspect Ratio

    16:09

  • Brightness

    400 cd/sq. m

  • Contrast Ratio

    800:1

  • Viewing Angle (H/V)

    178 deg. / 178 deg.

  • Input

    1x 3G-SDI
    1x HDMI
    3x YPbPr (BNC)
    1x Video
    2x Audio (L/R)

  • Output

    1x 3G-SDI
    1x HDMI

  • Audio

    1x Built-in speaker
    1x 3.5mm headphone jack

  • Mounting Thread

    1/4"-20

  • Current

    900 mA

  • Input Voltage

    DC 7-24V(XLR)

  • Battery Plate

    V-mount

  • Power Consumption

    11W

  • Operating Temperature

    -4 to 140 deg. F / -20 to 60 deg. C

  • Storage Temperature

    -22 to 158 deg. F / -30 to 70 deg. C

  • Dimensions (L x W x H)

    Monitor: 7.5 x 6.0 x 1.2" / 19.05 x 15.24 x 3.05cm
    Monitor with Sunhood: 7.5 x 6.0 x 5.6" / 19.05 x 15.24 x 14.22cm

  • Weight

    Monitor Only: 1.68lbs / 0.76kg
    With Sunhood: 2.07lbs / 0.94kg
    With Carrying Case: 4.76lbs / 2.16kg

About Delvcam DELV-WFORM-7

DELV-WFORM-7 is a 7 inch 16:9 metal framed LED field monitor with 3G-SDI, HDMI, YPbPr (via BNC), Composite video and collapsible sun hood. Optimized for full HD Camcorders. Providing advanced camera auxiliary functions. Color/RGB Histogram, Waveform, Vector Scope, Audio Level Meter, Peaking, False Color, Histogram & Exposure. Delvcam field monitors are great at displaying accurate images, DELV-WFORM-7 makes shooting and recording even easier with its functionality.

Delvcam DELV-WFORM-7 Features

  • POP-UP shortcut menu. 3G-SDI, HDMI and component and composite, via BNC Connectors
  • Foldable sunhood and smart screen protector helps prevent screen scratches and saves space in camera bags
  • HDMI video output - no splitters needed
  • LED-backlit display panel features higher physical resolution and higher levels of detail and image accuracy
  • 800:1 contrast ratio produces colors that are vivid, rich and importantly - accurate
  • 4 programmable function buttons for shortcut operations, according to different needs
  • Stunning 178 degrees viewing angle both vertically and horizontally, you can get the same vivid picture from wherever you are standing!

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Request a Callback

Chat one-on-one with an expert

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • HDMI video output - no splitters needed
  • 800:1 contrast ratio produces vived, accurate colors

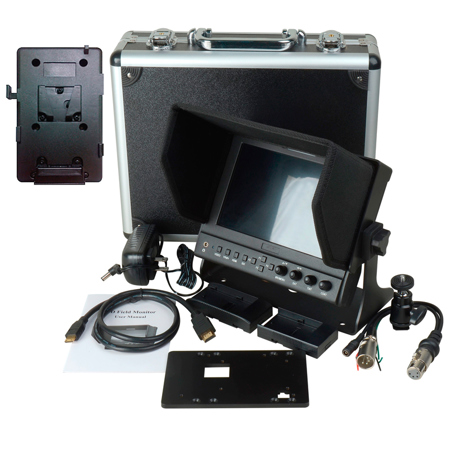

What's in the box:

  • Delvcam DELV-WFORM-7 7 " Camera-Top 3G-SDI/HDMI IPS LED Monitor
  • DELV-BPVM V-Mount Battery Plate
  • NP-F970 Type Battery Plate
  • LP-E6 Type Battery Plate
  • Battery Plate Adapter Bracket
  • HDMI Cable
  • Power and Tally Cable
  • DC Adapter
  • Desktop Yoke Stand
  • Sun Hood
  • Carrying Case
  • Delvcam 90 Day Parts and Labor Warranty
