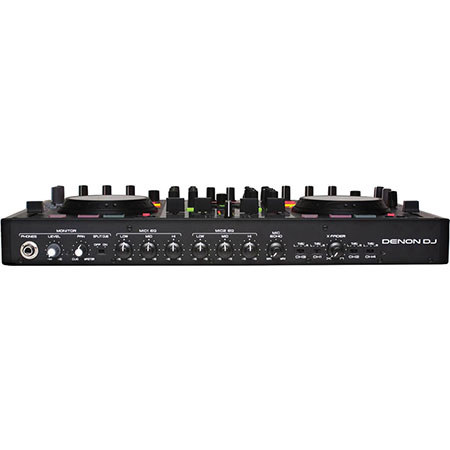

Denon MC6000MK2 Professional Digital Mixer and Controller, 20Hz-20kHz Frequency Response, MASTER Balanced & Unbalanced/BOOTH/Headphone/USB Audio Output

SKU: DDJMC6000MK2

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Denon MC6000MK2 Professional Digital Mixer and Controller Specifications

  • PHONO Inputs

    2 Stereo - Unbalanced RCA terminal

  • PHONO Inputs: Input impedance

    50 kohms

  • PHONO Inputs: Level

    -40 dBV(10 mV)

  • PHONO Inputs: Signal to Noise ratio

    Over 82 db

  • LINE 1, 2 Inputs

    2 Stereo - Unbalanced RCA terminal

  • LINE 1, 2 Inputs: Input impedance

    10 kohms

  • LINE 1, 2 Inputs: Level

    0 dBV

  • LINE 1, 2 Inputs: Signal to Noise ratio

    Over 84 dB

  • LINE 3, 4 Inputs

    2 Stereo - Unbalanced RCA terminal

  • LINE 3, 4 Inputs: Input impedance

    10 kohms

  • LINE 3, 4 Inputs: Level

    0 dBV

  • LINE 3, 4 Inputs: Signal to Noise ratio

    82 dB or later

  • LINE 3, 4 Inputs: Equalizer (CH)

    3 Band

  • Channel EQ Adjustment Range

    HI (High Range): -Infinity, -90 dB -to 10 dB
    MID (Medium Range): -Infinity, -90 dB to 10 dB
    LOW (Low Range): -Infinity, -90 dB to 6 dB

  • MIC Inputs

    2 Monaural

  • MIC 1

    Combo jack
    (terminal for balanced XLR and balanced 41643 inch TRS)
    (1: ground, 2: hot, 3: cold, chip: hot, ring: cold, sleeve: ground)

  • MIC 2

    Balanced 41643 inch TRS terminal

  • MIC Inputs: Input impedance

    5 kohms

  • MIC Inputs: Level

    -60 dBu to -16 dBu

  • Equalizer (MIC)

    3 Band

  • Adjustment Range

    HI (High Range): -15 to 15 dB
    MID (Medium Range): -15 to 15 dB
    LOW (Low Range): -15 to +15dB

  • USB Audio Inputs

    2 Stereo (4 Monaural) 16 bit, Fs: 44.1 kHz USB B

  • MASTER Output: Balanced

    Stereo, balanced XLR terminal
    (1: Ground, 2: Hot, 3: Cold)

  • MASTER Output: DA converter

    24 bit

  • MASTER Output: Balanced Load impedance

    Over 600 ohms

  • MASTER Output: Balanced Level

    + 4 dBu (Max + 24 dBu)
    When RL=100 kohms

  • MASTER Output: Frequency response

    20 Hz - 20 kHz (+/-1 dB)

  • MASTER Output: THD

    Less than 0.0005

  • MASTER Output: Crosstalk

    Less than -90 dB (1 kHz)

  • MASTER Output: Unbalanced

    Stereo RCA terminal

  • MASTER Output: Unbalanced Load impedance

    100 kohms

  • MASTER Output: Unbalanced Level

    0 dBu (Max + 20dBu)

  • BOOTH Output

    Stereo balanced 41643 inch TRS terminal

  • BOOTH Output: Load impedance

    Over 600 ohms

  • BOOTH Output: Level

    + 4 dBu (Max + 24 dBu)
    When RL=100 kohms

  • Headphone Output

    Stereo

  • Headphone Output: Load impedance

    40 ohms

  • Headphone Output: Level

    100 mW

  • USB Audio Output

    2 Stereo (4 Monaural) 16 bit, 44.1 kHz USB B

  • USB MIDI I/O

    IN: 1ch, OUT: 1ch MIDI 1.0, MIDI Clock USB B

  • CH/MASTER Meter

    PPM 7 Point LED -20 - +10 dB, Peak

  • CH Fader

    45 mm Slim Type Fader

  • Cross Fader

    45 mm Fader

  • Power voltage

    DC12V (the unit)

  • AC adapter input

    AC 120 V, 60 Hz

  • AC adapter output

    DC 12V 3A

  • Power consumption

    24 W

  • Operating temperature

    +5 to +35 deg.C (41 to 95deg.F)

  • Operating humidity

    25 % - 85 %

  • Storage temperature

    -20 to 60 deg.C (-4 to 76deg.F)

  • Dimensions (W x D x H)

    18.1 x 10 x 2.82" / 459.74 x 254 x 71.63mm

  • Weight

    9.48lbs / 4.3kg

  • UPC Code

    883795003025

About Denon MC6000MK2 Professional Digital Mixer and Controller

The Denon MC6000MK2 is next generation, flagship professional DJ controller and digital mixer. Created to be the definitive tool for contemporary club and mobile DJ's, the slim line, table-top steel chassis unit combines a 4 channel/8 source real-time matrix operational digital mixer with a 24-bit, class-leading digital and analog audio interface. This Mark 2 incarnation operates out of the box with the bundled Serato DJ Intro (upgradable to Serato DJ) and is fully MIDI compliant to work with other software solutions via supplied or created mappings.

This enables dual-deck functionality, opening up the creative possibilities of 4 deck mixing, with the unit's top panel featuring all important transport, pitch, EQ, loop, hot-cue/sample, navigation and FX controls - ergonomically positioned to ensure optimal, error free live performance. DJ's can now also take advantage of the world renowned video mixing features of the optional Serato Video plug-in, allowing them to programmed, mix, add transition FX and scratch video just as they would with audio. Operated as a fully functional DJ software controller or as a stand-alone digital mixer, this mixture accommodates a multitude of connectivity options to suit a DJ's preferred workflow. Table top CD and Vinyl decks, plus auxiliary input sources can easily be integrated, with USB audio input routing adding even more flexibility.

The logical, illuminated control interface gives DJ's the confidence that all faders, dials and buttons are exactly where they need to be - freeing them to be totally focused on their creative performance. The unit's top panel ensures maximum ease and efficiency when controlling Serato Intro, allowing access of such 'on-trend' DJ performance modes as 'Roll', 'Sensor' and 'Slip' Instant screen view preferences like Serato's 'Panel', 'View', 'Area' and 'List' can also be selected with individual buttons and in addition, with the MK2 units, now four, independent deck layer keys, fast accurate deck/track selection is assured. For recording and playback, this mixture features a Line 3/4 Thru to PC Mode, for connection to both Mac and PC hardware. Additional control features are added to this new and improved unit, bringing Beats Parameter knob (dedicated for controlling beat attributes), FX Tap Button (to add BPM data), FX Mode Change and now 8 Assign keys for fluid and comprehensive effects control.

This also offers dual balanced mic inputs (with independent echo FX and EQ). Uncompromising professional balanced and non-balanced audio outs ensure source sound quality is world class, whether the DJ is playing a live radio gig, small house-party or a large festival stage. Being a 100%, fully MIDI compliant controller, it is unlimited in its ability to partner alternative DJ software solutions, natively supported by Serato DJ (full version), V Virtual DJ and Mixvibes Cross. Denon DJ supplied mappings ensure compatibility with Native Instruments Traktor software.

Denon MC6000MK2 Professional Digital Mixer and Controller Features

  • 4 channel/8 source real-time matrix mixer
  • Comprehensive I/O to easily connect to other audio sources
  • Stunning 24-bit high resolution audio engine
  • Dual-deck functionality for 4 deck mixing
  • Natively supported by Serato DJ (full version), Virtual DJ and Mixvibes Cross
  • Denon DJ mappings for Native Instruments Traktor software
  • High resolution 105mm Touch-Sensitive Jog Wheel
  • Smooth 100mm long Pitch Slider with 14-bit resolution
  • Powerful, intuitive control layout for all functions
  • 8 Assign keys for fluid and comprehensive effects control
  • Dual balanced mic inputs with independent FX and EQ
  • MIDI compliant for compatibility with wide range of DJ software
  • Line 41702 Thru to PC mode for set playback/recording
  • High quality steel chassis and professional components

Key Features

  • Smooth 100mm long Pitch Slider
  • Dual balanced mic inputs

What's in the box:

  • Denon MC6000MK2 Professional Digital Mixer and Controller
  • Power Cord
  • AC Adaptor
  • USB Cable
  • MC6000MK2 Resource CD-ROM Disc
  • Denon 1 Year Limited Warranty
