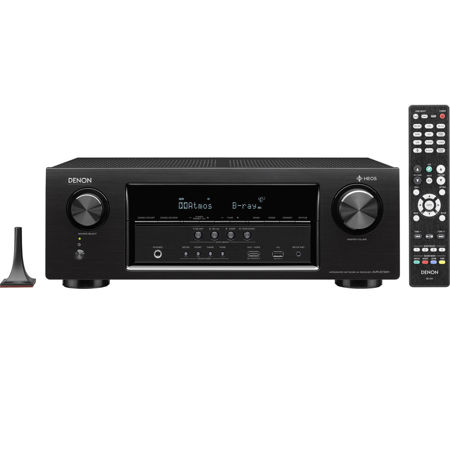

Denon AVR-S730H 7.2-Channel Network A/V Receiver with Built-In Wi-Fi and Bluetooth

SKU: DEAVRS730H

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Denon AVR-S730H Specifications

Main Unit

Main Unit

Jump to...
  • Channels

    7.2

  • Power Output

    75 W at 8 Ohms, 20 Hz to 20 kHz, 0.08% THD per channel, 2-channels driven
    110 W at 6 Ohms, 1 kHz, 0.7% THD per channel, 2-channels driven
    165 W at 6 Ohms, 1 kHz, 10% THD, 1-channel driven

  • Speaker Impedance

    4 to 16 Ohms

  • Input Sensitivity

    Analog: 200 mV

  • Level & Impedance

    Video I/O: 1 Vp-p, 75 Ohms

  • Frequency Response

    Audio: 10 Hz to 100 kHz, +1, -3 dB (Direct mode)
    Video: 5 Hz to 10 MHz, 0, -3 dB

  • Signal to Noise Ratio

    98 dB (IHF-A weighted, Direct mode)

  • Audio Decoding

    Dolby: Dolby Atmos, Dolby TrueHD, Dolby Surround
    DTS: DTS:X, DTS Neural:X

  • Files Supported

    DSD (2.8/5.6 MHz), FLAC (192/24), ALAC (192/24), and WAV (192/24)

  • Reception Frequencies

    FM: 87.5 to 107.9 MHz
    AM: 520 to 1710 kHz

  • Sensitivity

    FM: 1.2Mu V (12.8 dBf) effective
    AM: 18Mu V effective
    Mono FM, at 50 dB: 2.8Mu V (20.2 dBf)

  • Signal to Noise Ratio

    Mono FM: 70 dB (IHF-A weighted, Direct mode)
    Stereo FM: 67 dB (IHF-A weighted, Direct mode)

  • Distortion

    Mono FM: 0.7% at 1 kHz
    Stereo FM: 1.0% at 1 kHz

  • Pass-Through

    3D, 4K, CEC, ARC

  • HDCP Compliant

    2.2

Connectivity

Jump to...
  • Wi-Fi

    Yes, dual-band (2.4 / 5 GHz)
    IEEE 802.11a/b/g/n

  • Wi-Fi Security

    WEP 64-bit, WEP 128-bit
    WPA/WPA2-PSK (AES)
    WPA-WPA2-PSK (TKIP)

  • Bluetooth

    Version 3.0 + EDR
    FHSS (Frequency-Hopping Spread Spectrum) modulation scheme

  • Bluetooth Transmitter Power

    Class 1

  • Bluetooth Range

    Approximately 32.8' (10 m) with line-of-sight

  • Bluetooth Frequency

    2.4 GHz

  • Bluetooth Profile Support

    A2DP 1.2, AVRCP 1.5

  • A2DP

    Transmission Range: 20 Hz to 20 kHz

  • Bluetooth Codecs

    SBC

  • Networking

    AirPlay, Internet Radio (TuneIn), Pandora, Spotify Connect, SiriusXM

  • Inputs

    6 x HDMI (1 front)
    2 x composite video
    2 x stereo RCA
    2 x optical TOSLINK
    1 x digital coaxial

  • Outputs

    1 x HDMI
    1 x composite video
    2 x subwoofer pre-out
    1 x 1/4" (6.35 mm) headphone

  • Other Ports

    1 x USB (front) with iPod digital direct
    1 x setup mic
    1 x AM antenna
    1 x FM antenna

  • Speaker Connectors

    7 x binding post pairs

General

Jump to...
  • Power Requirements

    120 VAC, 60 Hz

  • Power Consumption

    Active: 400 W
    No Sound, ECO On: 29 W
    No Sound, ECO Off: 39 W
    Standby: 0.1 W
    CEC Standby: 0.5 W
    Network Standby: 2.7 W

  • Dimensions (WxHxD)

    17.1 x 6 x 13.3" (43.43 x 15.24 x 33.78cm) with antennas horizontal
    17.1 x 8.5 x 13.3" (43.43 x 21.59 x 33.78cm) with antennas vertical

  • Weight

    18.8 lbs (8.53kg)

  • UPC Code

    883795004183

About Denon AVR-S730H

The AVR-S730H represents the most affordable seven channel 3D Audio AV Receiver with renowned original Denon sound. With HEOS wireless technology built-in, you can stream and control all your local or online music effortlessly from anywhere in your home with the comfortable HEOS App. Create a stunning home theater experience with the built-in Dolby Atmos and DTS:X 3D surround sound decoders and all the latest video technologies including Dolby Vision, HDR (High Dynamic Range) and HDCP 2.2. The ultimate in future-proofness.

Powerful 7 channel Discrete Amplifier with Eco Mode
Featuring high current discrete power output devices on all channels, the AVR-S730H delivers high power and is rated at a maximum of 165 watts per channel. There's also an Auto Eco mode that adjusts the maximum power available according to the volume level as well as an on-screen Eco meter that lets you see the power consumption reduction in real time. For compatibility with the widest range of loudspeakers the AVR-S730H is equipped with low impedance drive capability that provides operational stability with 4 ohm speakers.

Dolby Atmos
Feel every dimension in Dolby Atmos. Dolby Atmos transports you into the story with moving audio that flows all around you with breathtaking realism. Enjoy a 5.1 surround sound speaker system and 2 additional overhead speakers or 2 Dolby Atmos elevation speakers for the ultimate home theater experience - including Dolby Surround up-mixer for legacy content.

DTS:X
DTS:X immersive audio places sound where it would occur naturally in space, creating a lifelike, multi-dimensional audio experience in the home. The improved immersion and heightened realism draw you into the world of your favorite movies. The included spatial remapping engine, DTS Neural:X, gives your movie, game and music collections a new lease on life! DTS:X brings the theater home.

HEOS Wireless Multi-Room Music Streaming, Controlled by Free HEOS App
Our HEOS technology enables the AVR-S730H to become part of the HEOS wireless multi-room system, allowing you to enjoy your favorite music anywhere - and everywhere - around your home. Share music stored on your home network, Internet radio or streaming services with HEOS wireless speakers or even other HEOS-capable receivers, throughout the house.

And it's all controlled by the free HEOS app, installed on as many smartphones and tablets as you like! The app gives you instant multi-room audio control, meaning you can command music in every room from any device: play different music from different sources in every room, group several rooms together and play the same song, perfectly synchronized, in party mode!

Wide Array of Music Streaming Services
The HEOS app puts multiple streaming services in the palm of your hand, ready to play on your AVR or any devices on your HEOS network! Enjoy music from Pandora, Spotify, TuneIn Internet radio, Amazon Prime Music, iHeart Radio, Sirius XM, Sound Cloud, Tidal, Rhapsody or Deezer or use the HEOS app to stream tunes or whole albums from your phone, USB stick or computers and NAS drives on your home network. Whatever you want to hear, access it directly from the HEOS app, complete with support for favorites and playlist functions.

Advanced HDMI Video Section
Featuring 6 HDMI inputs, including 1 conveniently located on the front panel, the AVR-S730H incorporates an advanced video section that features all you need for the ultimate home theater experience: Full 4K Ultra HD, HDCP 2.2, HDR (High Dynamic Range), BT.2020, Wide Color Gamut and 4:4:4 Pure Color sub-sampling. It is even ready for Dolby Vision and HLG (Hybrid Log Gamma; via future firmware update). Dolby Vision transforms the viewing experiences with astonishing brightness, contrast and color.

High Resolution Audio / Front USB Port
Enjoy superb audio fidelity with your favorite high resolution audio tracks. The AVR-S730H features high resolution audio decoding with multiple lossless file types including ALAC, FLAC and WAV at up to 24-bit/196-kHz along with compatibility for 2.8/5.6-MHz DSD files (DSD is the audio coding format of SACD). Play them from memory devices via the front panel USB or from network sources - the AVR-S730H will also play lossy file types such as MP3 and WMA.

Built-in Bluetooth, Wi-Fi and AirPlay Capability
Featuring Bluetooth and dual band Wi-Fi wireless connectivity, the AVR-S730H is equipped with an advanced dual diversity antenna RF transceiver system for robust and error-free streaming, even in congested environments. Connect to the internet through your home Wi-Fi network (or with a hard-wired connection via the RJ-45 Ethernet LAN port) and enjoy all the music options the HEOS technology offers, including thousands of internet radio stations around the world. With AirPlay you can enjoy listening to your favorite tracks wirelessly from your favorite iOS device including the iPod touch, iPhone and iPad.

Denon 2016 AVR Remote
With the free "Denon 2016 AVR Remote" for iOS, Android and Kindle Fire, available from the Apple app store, Google Play or the Amazon app store, you can control the receiver's operation, as well as accessing its set-up menu, from a smartphone or tablet. The app also gives you quick access to the receiver's status display, option menus, Denon Blu-ray player control and an online owner's manual for your convenience. Inside the app, you can switch instantly to the HEOS App to access an incredible level of control over your music contents and streaming services, blast full HEOS wireless multi-room control.

Audyssey Room Correction
Every listening room has its own characteristics and acoustical problems. That's why we equipped the AVR-S730H with the advanced Audyssey MultEQ automatic room acoustic correction system. Via the supplied measuring microphone and mic stand, Audyssey MultEQ measures all the speakers in your home theater during setup, including the subwoofer and then generates multiple high precision DSP room acoustic correction filters which together provide smoothest and most natural tonal balance, regardless of the brand or model of the various speakers.

Audyssey Dynamic Volume smooths out annoying jumps in volume (such as TV commercials), letting you listen at lower levels and still enjoy clear dialogue, music and sound effects. Audyssey Dynamic EQ provides precision tonal tailoring for full range clarity at any listening level.

Audyssey MultEQ Editor App
The latest Denon audio video products use Audyssey MultEQ for simple, accurate set-up and calibration of your system to the room in which it's used. But now you can go further with the Audyssey MultEQ Editor app, going "under the hood" to view and adjust settings for detailed tuning - allowing you to customize the sound more precisely to the specific problems in your room and tailor the sound to your personal preferences. With this comprehensive app, you can harness the power of Audyssey MultEQ to take total control of the way your home cinema sounds.

This app will allow you to
• View the speaker detection results, to check correct installation
• View before and after results of the Audyssey calibration, making it easy to identify room problems
• Edit the Audyssey target curve for each channel pair to suit your tastes
• Adjust the EQ frequency adjustment range for each channel pair
• Switch between 2 high frequency roll off target curves
• Enable/Disable midrange compensation to make the vocal region brighter or smoother
• Save and load calibration results.

Easy to Setup
For maximum ease of setup, the AVR features a horizontal row of color coded premium loudspeaker connectors and it comes with a set of color coded speaker cable labels that help ensure correct speaker cable hookup the very first time. With our exclusive Setup Assistant along with the Quick Start Guide, you can connect and configure your home theater system quickly and easily. The Setup Assistant features clear on-screen graphics and text that quickly and easily guide you through the setup process, optimizing critical system settings for the best possible sound quality.

Easy to Use
The AVR's front panel features 4 Quick Select function buttons so you can quickly choose from the most popular sources and the system remembers your preferred audio settings for each one. The ergonomic remote control also features dedicated Quick Select buttons. And when you connect the AVR to your Smart TV you have the option of controlling the AVR via the TV's remote control which lets you select an input, adjust the volume and choose the surround sound mode.

Smart TV Connectivity
When you connect the AVR-S730H to your Smart TV you have the option of controlling the AVR-S730H via the HDTV's remote control which lets you select an input, adjust the volume and choose the surround sound mode.

Multi-Room Listening
You can configure the AVR-S730H for a 7 channel home theater surround system or you can choose to have a 5 channel surround system in the main room with 2 of the amplifier channels dedicated to drive separate stereo speakers in another room. Enjoy a surround sound movie in the home theater room while others can enjoy stereo sound from a different source in a second room at the same time.

What's in the box:

  • Denon AVR-S730H 7.2-Channel Network A/V Receiver with Built-In Wi-Fi and Bluetooth
  • Remote Control
  • 2x AAA Batteries
  • AM Loop Antenna
  • FM Indoor Antenna
  • Sound Calibration Microphone
  • Sound Calibration Microphone Stand
  • Quick Start Guide
  • Safety Instructions
  • Cable Labels
  • Denon 2 Year Limited Warranty
