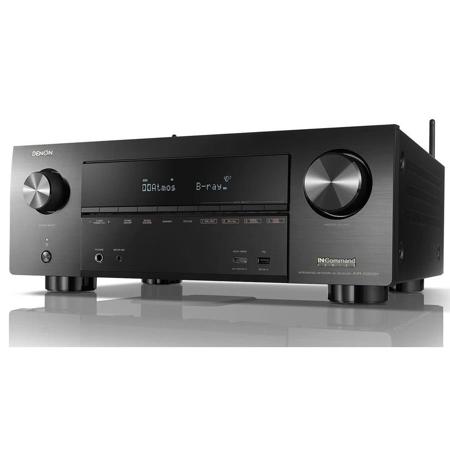

Denon AVR-X3600H 9.2-Channel 4K Network A/V Receiver, 3D Audio, Black
See all Denon items

Denon AVR-X3600H 9.2-Channel 4K Network A/V Receiver with 3D Audio, Black

SKU: DEAVRX3600HB

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : isnt it 9.2?ANDREW R : Yes, I believe that the 7.2 specified in the description is in error
Shopper : Why Did You Choose This?CLIVE D : Great reviews.

Reviews about this item

Review Summary

2020-07-12T20:00:00

Rated 1 out of 5

Junk

This is my SECOND receiver where the hdmi out port just stopped working. Denon replaced the first one and I plugged the hdmi cable in and it worked right off the bat. I went to turn it on and it said firmware update, but I noticed there was no onscreen menu. All I could think of is NOT AGAIN...Seriously? I had the first one less than 7 months before it blew out and now this happened AGAIN. Whatever company they are using to put in these hdmi boards, they are defective and this product should be recalled. 1200 bucks down the drain.

Really A.

2020-05-25T20:00:00

Rated 5 out of 5

Superb Receiver ! !

Great product My previous Receiver which served me well was a Harmon Kardon. That finally died after 13 years. Stepping up to this receiver has been a treat tons of options and abilities. Currently set up for 7.2.4 and deciding what external Amp to pick up to drive the remaining two channels.. Will probably use it on my front left and right. Everything has worked perfectly with no issues what so ever. (be sure to try out your system with a actual Blu-Ray Disc for some uncompressed Dolby Atmos to really flex your system its like night and day the robustness of the sound compared to the compressed audio stream from netflix, prime and competitors).

dorvald

2020-04-20T20:00:00

Rated 3 out of 5

Audysssey MultEQ 32 not working properly

I cannot get my reciever to go through more than 1 roun dof audio testing before it won't go any further. Have ot shut off receiver. Not expecting this. It's my 4th Denon over the years.

dougc11

2020-03-30T20:00:00

Rated 2 out of 5

Issues with Dolby Atmos on the Xbox one X in Denon

-I’m not getting Dolby Atmos on games that has Atmos tracks AND the Dolby Atmos software on my XBOX ONE X...but 4K blu-ray disks with Atmos track plays in Atmos with no problems on my XBOX. -I called XBOX support, but they couldn’t help. -All my setting on XBOX are correct. -I have the Dolby app. (Uninstalled it and reinstalled it multiple times.) -Atmos also works fine on my APPLE TV 4K and OPPO 203 when played using my Denon X3600H....but not my XBOX Please help, as I have contacted Microsoft, and Dolby, and they blamed Denon.

WillT

2020-03-10T20:00:00

Rated 5 out of 5

I love this receiver, but....

...I upgraded specifically for the Bluetooth connection that allows you to connect wireless headphones/earbuds and listen to the TV/Music/Etc without blasting away everyone else in the house. I was able to connect my Bose QC35 and my B+O H9i headphones as well as my B+O E8Motion earbuds. But I can only get a signal out of the Bose. Nothing comes through on the B+O's. And what I do get on the Bose are volume-limited, so you can't really crank it up the way you'd like. I know this functionality was added to the AVR-X3600H after initial production, so perhaps there's a software update in the works that'll fix this. Is that the case? Or is there something else I should know?

MarkDG

2020-02-27T19:00:00

Rated 5 out of 5

Excellent Receiver - Running 7.2.4

I bought this receiver as a Christmas present for me. It was time to re-vamp my home theatre system which was setup before HDMI using 7.1 analog inputs. This receiver has taken me right to the front of the line with my theatre, and the sound is incredible. The Audyssey sound setup did a super job to start, with a couple of minor personal preferences to tune it up. I did have the problem people have noted with the xbox one, and did need to roll back the firmware BUT! This is not the fault of Denon, it is either the Dolby application for xbox, or the xbox itself not being as up to date for sound processing as the receiver. Once I did that, perfection. The front speakers are running on a separate amplifier, and integrate perfectly with all other speakers, the sound flows smoothly in the room from speaker to speaker - no abrupt changes or dropped ranges of sound. For those who have not moved to a 4K projector, it is good to note the receiver easily takes in a 4K blu-ray to gain all the Atmos sound, but will output an extremely sharp 1080p picture. This has bought me a little move time before I need to update that too. All my old movies are new again, and now I actively hunt down media with Atmos. My sons play games on the system too, and for Atmos enabled games it is just WOW - I just sit, watch and listen sometimes. Loving my home theatre again thank to the Denon receiver!

135i G.

2020-02-13T19:00:00

Rated 2 out of 5

Works great minus one major issue

Fix your firmware! Current firmware won't allow Xbox s and x series to run Atmos just multichannel only! Original firmware works fine and Atmos works so I had to do a network reset to go back to original firmware .

Drew 1.

2020-02-10T19:00:00

Rated 5 out of 5

The X3600H: An excellent product!

I have had the X3600H for about 6 weeks now and I am really impressed with the picture quality and the quality of the audio. My overall goal was to upgrade my entire home theater setup. New speakers and a new AVR. The driving force was to implement height channels. I’m getting content from “the company a mouse built.” The new streaming service from mouse will support Dolby Atmos height channels. I found an action sequence a movie that took place on a rainy night. There were shots, explosions, breaking glass from second and third story rooms. There were two people using katana blades fighting on the street and the director put the camera in between the combatants. The sound engineers had put the rain falling downward, as the explosions went off bricks and glass cane falling to the ground. As the katana fighters would swing their blades it would make that shimmering sound just above your head. When a blade was blocked it would make that distinctive sound. Then men, women and children could be heard crying and screaming from the rooms above. In this case Dolby Atmos puts you in the middle of the action. It places you inside the movie experience. The Denon allows you to experience this type of immersion at a reasonable price. In my case the power is more than adequate but if it ever became a problem one can always add an external amp. I’m driving a 5.1 for surround sound and 4 height, Atmos, channels - a total of 9 speakers with the X3600H. I have a locally powered subwoofer running on a dedicated wireless connection. I may add an additional subwoofer sometime in the future to better balance the bass experience in the room. As a point, this driving force on a second subwoofer is not a deficiency of the AVR, rather it is a problem with the room. I would definitely buy the X3600H again, I have no second thoughts. I would, and have recommend it to my friends.

WatchManUSA

2020-02-08T19:00:00

Rated 4 out of 5

Great receiver

Love it - but not sure how to engage 5.1 when in HEOS - only the front and speaker channels are providing music. All channels engage with Netflix movies but not HEOS - why not? Also, every time I engage HEOS on my TV screen it wants me to retype my log in - frustrating - how can I resolve these two?

Dominick

2020-02-05T19:00:00

Rated 5 out of 5

Powerful sound. Easily powers large speakers

I upgraded to the ARV-X3600H. The last receiver (onkyo) I had was billed as network ready, but the experience was not stellar. This was fairly easy to get going, and I love the power from it. Easily powers my 5.2.4 setup.

Dana

2020-01-29T19:00:00

Rated 2 out of 5

Atmos issues with Xbox One X

Looks like there are Atmos issues with the Xbox one X and this Denon receiver. The receiver shows multi channel. Nothing else. Some forums are saying down grade the firmware. That isn't the right answer.

Harry77389

2019-12-28T19:00:00

Rated 5 out of 5

Had many amps over the years. This is the best.

I was upgrading from a very nice Yamaha but it lacked hdcp 2 for 4K HDR. Also wanted ATMOS. I was in no way disappointed! This thing is amazing. And it actually has an 11.2 channel preamp so going full 11 channels only requires an external amp. And you can assign that to your front speakers. The Audessy x32 room correction is superb. Can’t say enough good things about this amp including a web server so you can change all the settings on the amp from a browser. Not well publicized but what a cool feature!

Egmonster

Denon AVRX3600H Specifications

Amplifier

Amplifier

Jump to...

  • Channels

    9.2
    11.2 with Additional Amplifier

  • Output Power

    105 W per Channel @ 8 Ohms, 20 Hz to 20 kHz, 0.08% THD
    135 W per Channel @ 6 Ohms, 1 kHz, 0.7% THD

  • Object-Based Audio Support

    Dolby Atmos, Dolby Atmos Height Virtualization, DTS:X, DTS Virtual:X

  • Output Impedance

    4 to 16 Ohms

Video

Jump to...

  • Pass-Through

    4K, HDR10, HLG, Dolby Vision, ALLM

  • HDCP Version

    2.3

Connectivity

Jump to...

  • Tuner

    AM / FM

  • Wireless Connectivity

    Bluetooth, Wi-Fi, Apple AirPlay 2

  • Inputs

    8x HDMI (1 Front)
    2x Optical TOSLINK
    2x RCA Digital Coaxial
    2x 3RCA Component Video
    3x RCA Composite Video
    6x Stereo RCA Audio (1 Phono with Ground Screw)

  • Outputs

    3x HDMI
    1x 3RCA Component Video
    2x Subwoofer Pre-Out
    1x 11-Channel RCA Pre-Out
    1x Zone 2 Stereo RCA Pre-Out
    1x 1/4" / 6.35 mm Headphone (Front)

  • Other Ports

    1x USB (Front)
    1x 1/8" / 3.5 mm Setup Microphone Input (Front)
    1x FM Antenna
    1x AM Antenna
    1x RJ45 Ethernet LAN
    1x 1/8" / 3.5 mm IR Remote In
    1x 1/8" / 3.5 mm IR Remote Out
    1x 1/8" / 3.5 mm 12 VDC Trigger Out
    1x DE-9 RS-232C
    2x Bluetooth / Wi-Fi Antenna Terminals

  • Speaker Connectors

    11x Color-Coded Binding Post Pairs

Physical

Jump to...

  • Operating Temperature

    41 to 95 Degree F (5 to 35 Degree C)

  • Power Requirements

    120 VAC, 60 Hz

  • Power Consumption (Active)

    660 W

  • Power Consumption (Standby)

    CEC Standby: 0.5 W
    No Networking: 0.1 W

  • Dimensions (W x H x D)

    17.09 x 9.33 x 15.39" (434 x 237 x 391mm) with Antennas Up
    17.09 x 6.58 x 15.39" (434 x 167 x 391mm) with Antennas Down

  • Weight

    26.68 lb (12.1kg)

Other

Jump to...

  • UPC Code

    883795004855

About Denon AVRX3600H

FEATURED REVIEWS

Superb Receiver ! !

By dorvald

Great product My previous Receiver which served me well was a Harmon Kardon. That finally died after 13 years. Stepping up to this receiver has been a treat tons of options and abilities. Currently set up for 7.2.4 and deciding what external Amp to pick up to drive the remaining two channels.. Will probably use it on my front left and right. Everything has worked perfectly with no issues what so ever. (be sure to try out your system with a actual Blu-Ray Disc for some uncompressed Dolby A...

View full Review

I love this receiver, but....

By MarkDG

...I upgraded specifically for the Bluetooth connection that allows you to connect wireless headphones/earbuds and listen to the TV/Music/Etc without blasting away everyone else in the house. I was able to connect my Bose QC35 and my B+O H9i headphones as well as my B+O E8Motion earbuds. But I can only get a signal out of the Bose. Nothing comes through on the B+O's. And what I do get on the Bose are volume-limited, so you can't really crank it up the way you'd like. I know this function...

View full Review

Immerse yourself in high-power home theater with the Denon AVR-X3600H. With 105W per channel (8 ohms, 20Hz-20kHz, THD .08%, 2 ch driven), the performance-tuned Denon amplifier delivers an amazing 3D audio experience with support for Dolby Atmos, DTS:X, DTS Virtual:X, Dolby Atmos Height Virtualization Technology and new IMAX Enhanced. Supports the latest 4K video technologies - including Dolby Vision, HDR10, and HLG as well as 4K video upscaling and ALLM - to ensure your TV or projector powers the ultimate in picture brightness, contrast and clarity.

The 8 HDMI inputs and 3 outputs with eARC and full HDCP 2.3 support on all ports are compatible with the latest HD and Ultra HD TVs, Blu-ray players and game consoles. The front-panel USB offers convenient audio playback of MP3 and Hi-Res audio formats (WAV, FLAC, ALAC and DSD 2.8/5.6MHz files). Stream popular music services like Spotify, Pandora, Tidal, Deezer and more wirelessly via Bluetooth, Apple AirPlay 2 and Wi-Fi with HEOS Built-in. Works with Amazon Alexa, Google Assistant and Apple Siri for effortless voice control. The powerful DSP is capable of 11.2 channel processing, allowing you to extend the system with an additional power amplifier.

By visually guiding you through each step in the setup process, the award-winning Denon Setup Assistant ensures you get set up right the first time. Every home theater is different - that's why Denon uses the premium MultEQ XT32 room calibration technology from Audyssey that automatically measures and optimizes your AV receiver to provide a truly immersive 3D audio experience custom-tailored to your unique listening environment.

Features

9.2 channel AV receiver with 105W per channel and 11.2 channels of processing (preamp)
Nine powerful amplifiers tuned to provide the classic and dynamic Denon sound experience

IMAX Enhanced Technology
Delivers a true IMAX theater experience at home

Supports Dolby Atmos, Dolby Atmos Height Virtualization Technology, DTS:X and DTS Virtual:X
Enjoy an immersive, three-dimensional audio experience up to 7.2.4 with an additional 2ch amplifier

Amazon Alexa, Google Assistant and Apple Siri voice control
Use your voice to control the AVR-X3600H and wireless music services hands-free

8 HDMI inputs with full HDCP 2.3 support, 3 HDMI outputs
Connect up to eight media devices and output to two displays (ex. TV or projector in the living room and another device in the multi-zone)

Enhanced Audio Return Channel (eARC)
Supports the latest 3D audio formats such as Dolby Atmos and DTS:X from your TV audio signal via HDMI

4K/60 Hz, Dolby Vision, HDR10, HLG, 4:4:4 color resolution and BT.2020
Provides the greatest video quality with exceptional brightness, contrast and color

Award-winning Denon Setup Assistant and graphical user interface
Easy and intuitive out-of-box setup experience

"ihiji Invision" and "Domotz Pro" remote system monitoring and management technology
Lets custom integrators monitor and troubleshoot remotely, drastically reducing downtime

Supports Spotify, Pandora, TuneIn, Deezer and more
Wirelessly stream and enjoy the most popular music services

HEOS Built-in wireless multi-room music streaming technology
Listen from any room for a connected, whole-home audio experience

Built-in Wi-Fi with 2.4GHz/5GHz dual band support, plus built-in Bluetooth
Stable wireless network connectivity even in congested environments

High-resolution DSD (2.8/5.6MHz), FLAC, ALAC and WAV support
High-resolution audio streaming for Hi-Fi enthusiasts

Audyssey MultEQ XT32, Dynamic Volume and Dynamic EQ, LFC and Sub EQ HT
Automatically optimizes audio for your unique listening environment, including subwoofer equalization

Game Mode
Supports Auto Low Latency Mode (ALLM) for lag-free gaming (requires supported 4K display and game console)

12 V Trigger output
Connect a device such as a cooling fan or projector and operate on standby power

Powerful 9-channel amplifier with advanced home cinema specs
Featuring discrete high-current amplifiers on all channels, the AVR-X3600H delivers high-power performance at 105W per channel (8 ohms, 20Hz-20kHz, THD .08%, 2 ch driven). The AVR-X3600H supports three-dimensional sound formats Dolby Atmos, Dolby Atmos Height Virtualization Technology, DTS:X, DTS Virtual:X and the all new IMAX Enhanced. The advanced HDMI section features HDCP 2.3 support and advanced video processing with 4K scaling for HDMI sources, plus a 12V trigger output to connect an external device.

Blockbusting 3d-sound
Immerse yourself in multi-dimensional audio with Dolby Atmos, DTS:X, Dolby Atmos Height Virtualization, DTS Virtual:X and IMAX Enhanced.

Imax enhanced technology
Get the most premium at-home entertainment experience with IMAX Enhanced - the latest technology from DTS that sets a new standard for home theater imaging, sound, scale and clarity. Watch clearer pictures and brighter images. Feel immersive, heart-pounding audio and experience premium content digitally remastered by IMAX.

Geared up for 4k ultra HD
Enjoy your favorite movies, shows and games with the best picture quality available.

Advanced HDMI video section with eARC
The AVR-X3600H features 8 HDMI inputs and 3 outputs that support 4K Ultra HD 60Hz video, 4:4:4 Pure Color sub sampling, Dolby Vision, High Dynamic Range (HDR10), Hybrid Log-Gamma (HLG), eARC, 3D and BT.2020 pass-through support for exceptional color, clarity and contrast.

eARC (Enhanced Audio Return Channel) supports the transmission of immersive audio from your TV with a single HDMI cable for the simplest setup.

Easy setup experience
The included AVR-X3600H Quick Start Guide provides simple, clear instructions for how to get started. Once you connect your TV to the AVR-X3600H via HDMI, the exclusive Denon Setup Assistant appears on your TV screen to walk you through setup, step-by-step. A row of color-coded speaker connections is laid out horizontally, making organizing and connecting speaker wires fast and easy.

Smart tv connectivity
Control the Denon AVR-X3600H with your TV remote via the HDMI CEC functionality associated with your TV. The Smart Menu home screen provides you quick access to source and surround mode selections, the AV receiver setup menu and four Quick Selects.

Advanced sound processing
For optimum fidelity and the widest dynamic range with lowest distortion, the Denon AVR-X3600H features advanced reference-class 32-bit AKM AK4458/VN D/A converters on all channels. Enjoy consistent high-fidelity and precise channel matching across all channels for the ultimate listening experience.

DSP power processing
Incredible power for your music and movie needs. The AVR-X3600H includes an advanced DSP (Digital Sound Processor) chip for tremendous power processing. With four 300MHz DSP cores that are capable of processing over one billion computations per second, the AVR-X3600H supports the latest video, sound and processing needs.

Works with Latest Voice Assistants
Enjoy effortless voice control and total flexibility from the leading voice services. Using a smart speaker or your phone, speak commands with Amazon Alexa, Google Assistant, Apple Siri and high-end smart home automation, Josh.ai. Ask to play your favorite music, turn the volume up, skip to the next track, switch inputs and more. Switch between voice services or pick a favorite to use - the choice is yours. Functionality varies by voice agent.

Works with Amazon Alexa
Control the AVR-X3600H hands-free with Amazon Alexa and your voice. Adjust the volume, skip to the next track, switch inputs for your different media players and more - "Just Ask." Download the free HEOS Home Entertainment Skill to enable Amazon Alexa voice commands for your AVR-X2600H, HEOS devices and other select Denon products. Requires Alexa app and Amazon Echo, Dot or equivalent.

HEOS built-in for wireless music streaming
Stream your favorite music from anywhere and everywhere around your home with HEOS Built-in technology. Enjoy high quality music from a wide range of streaming services including Spotify, TuneIn, Pandora, Amazon Prime Music, iHeartRadio, SiriusXM, Soundcloud, Tidal, Napster, Deezer or local music sources. Control it all seamlessly with the free HEOS app.

Play your music anywhere with HEOS speakers
With the HEOS multi-room function, the Denon AVR-X3600H can connect with any other product with HEOS Built-in, like HEOS speakers, to play music throughout your entire home. Play the same song in every room or select a different song for each connected room - the choice is yours.

Remote Monitoring Capability
In today's custom install environment, it's critical for integrators to provide quick, reliable assistance and service to their clients, even after the install is complete. To support this effort, the Denon IN-Command Series AVR-X3600H AV receiver features "ihiji Invision" and "Domotz Pro" remote system monitoring and management technology. These programs allow custom integrators to monitor the status of connected products and troubleshoot remotely from the office or on the go, radically reducing the time it takes to address the issue.

Denon AVRX3600H Features

  • 9.2 channel AV receiver with 105W per channel and 11.2 channels of processing (preamp)
  • IMAX Enhanced Technology
  • Supports Dolby Atmos, Dolby Atmos Height Virtualization Technology, DTS:X and DTS Virtual:X
  • Amazon Alexa, Google Assistant and Apple Siri voice control
  • 8 HDMI inputs with full HDCP 2.3 support, 3 HDMI outputs
  • Enhanced Audio Return Channel (eARC)
  • 4K/60 Hz, Dolby Vision, HDR10, HLG, 4:4:4 color resolution and BT.2020
  • Award-winning Denon Setup Assistant and graphical user interface
  • "ihiji Invision" and "Domotz Pro" remote system monitoring and management technology
  • Supports Spotify, Pandora, TuneIn, Deezer and more
  • HEOS Built-in wireless multi-room music streaming technology
  • Built-in Wi-Fi with 2.4GHz/5GHz dual band support, plus built-in Bluetooth
  • High-resolution DSD (2.8/5.6MHz), FLAC, ALAC and WAV support
  • Audyssey MultEQ XT32, Dynamic Volume and Dynamic EQ, LFC and Sub EQ HT
  • Game Mode
  • 12 V Trigger output

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 9.2 channel AV receiver with 105W per channel and 11.2 channels of processing (preamp)
  • IMAX Enhanced Technology
  • Supports Dolby Atmos, Dolby Atmos Height Virtualization Technology, DTS:X and DTS Virtual:X
  • Amazon Alexa, Google Assistant and Apple Siri voice control
  • 8 HDMI inputs with full HDCP 2.3 support, 3 HDMI outputs
  • Enhanced Audio Return Channel (eARC)

What's in the box:

  • AVR-X3600H 9.2-Channel 4K Network A/V Receiver with 3D Audio
  • Remote Control
  • Power Cord
  • Denon 3 Year Limited Warranty
