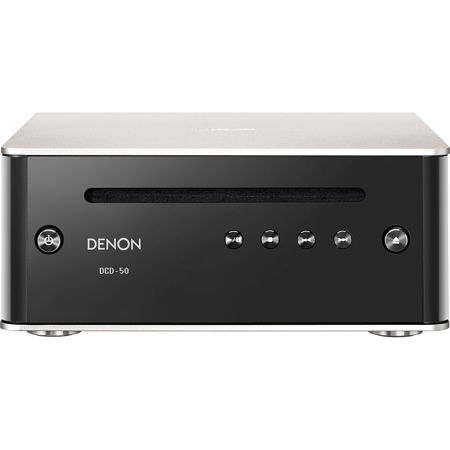

Denon Design Series DCD-50 Compact Hi-Fi CD Player, Premium Silver

SKU: DEDCD50SP

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Denon DCD-50 Specifications

  • Compatible Discs

    Audio CDs
    CD-R and CD-RW with MP3 and WAV audio tracks

  • Channels

    2-channel stereo

  • Signal Type

    16-bit linear PCM

  • Sampling Frequency

    44.1kHz

  • Laser

    AlGaAs

  • Optical Wave Length

    780 nm

  • D to A Converters

    32-bit / 192kHz converter with analog output (RCA)

  • Frequency Range

    2Hz to 20kHz

  • Frequency Response

    20 to 20kHz (+/-1%)

  • Dynamic Range

    100dB

  • Signal-to-Noise Ratio

    105dB

  • THD + N

    0.004% (1kHz)

  • Channel Separation

    100dB

  • Wow & Flutter

    Crystal accuracy

  • Outputs

    1x stereo RCA
    1x coaxial

  • Output Connectors

    Digital Coaxial Output: 0.5 V p-p / 75Ohms

  • Output Level

    Signal Type: 2 Vrms stereo

  • Remote Control

    Yes, included

  • Power Supply

    120 VAC, 60Hz

  • Power Consumption

    10W
    Standby Mode: <0.4W or less

  • Operating Temperature

    5 to 35 deg. C (41 to 95 deg. F)

  • Operating Humidity

    5 to 90% (non-condensing)

  • Dimensions

    7.9 x 3.5 x 9.5" (20.07 x 8.89 x 24.13cm)

  • Weight

    5.5 lbs (2.49kg)

  • UPC Code

    883795004121

About Denon DCD-50

Introducing the new Denon Design Series. Real Hi-Fi for today's lifestyles. The ideal companion to our PMA-50 full digital stereo amplifier, the DCD-50 features a high quality disc drive that plays music CDs as well as data discs with MP3 and WMA tracks. Styled identically to the PMA-50, the DCD-50 features an elegant compact chassis that can be operated when placed horizontally or vertically. The Clear View OLED display features automatic display orientation that detects if the DCD-50 is placed vertically or horizontally and adjusts the display accordingly.

The convenient slot loading mechanism dispenses with the usual disc tray and allows for vertical and horizontal placement. For optimum audio quality with the PMA-50, the DCD-50 is equipped with a coaxial digital audio output - for an easy setup the required digital audio coax cable is included. For connection to other audio components, the DCD-50 incorporates a high resolution 32-bit/192-kHz D/A conversion system and stereo analog outputs.

Perfect Match with PMA-50
Featuring the same high quality styling and finish, the DCD-50 is the perfect partner for the PMA-50 digital integrated amplifier. The compact chassis features deluxe finishes including soft aluminum matte with bright silver tone accents and glossy and matte black surfaces.

Vertical or Horizontal Placement
When desktop or shelf space is at a premium, the DCD-50 can be vertically positioned alongside or above the PMA-50. The 4 feet are easily removable by hand and the chassis side features caps covering 4 screw holes. Simply remove the existing caps and screw in the feet. Then, put the supplied 4 silver caps into the original bottom screw holes and you're all set.

Selectable Auto Play
If you prefer, you can easily configure via the remote control the DCD-50 to wakeup from standby and start immediate playback when you insert a disc. Once configured, the DCD-50 will retain your preferred mode until you decide to change it.

Clear View OLED Display with Dimmer
The OLED display shows the CD's total tracks and total time, as well as the track number and track time and the song title, artist name and album name (depending on the disc), along with icons for random mode, repeat 1 and repeat all modes and a folder icon for data discs. The display automatically rotates to match the installation orientation. The dimmer function features 3 levels of display brightness, adjustable via the remote control. When paired with the PMA-50, you can adjust the display brightness of both units at the same time.

High Resolution D/A Conversion
For connection to other audio components that do not have a digital coaxial input, the DCD-50 features a high quality D/A conversion block with 32-bit/192-kHz D/A converter that delivers wide dynamic range, along with extremely low noise and distortion.

Automatic Standby Option
You also have the ability to activate the Auto Standby function, which will automatically put the DCD-50 in standby mode after 30 minutes of inactivity, saving energy and the environment.

Versatile Disc Playback
The DCD-50 plays music CDs and can also play data CDs, including CD-R and CD-RW discs with MP3 and WAV audio tracks.

Ergonomic Remote Control
The supplied remote control features an ergonomically-designed layout that includes a cursor keypad, number keypad and dedicated function buttons such as random, repeat, info and program. You can control both DCD-50 and PMA-50 with a supplied single remote.

High Quality
• A new style of CD player with Denon's trademark quality, containing a high-precision 32-bit D/A converter
• The D/A converter is a key element of sound quality, so this product contains our 32bit/192kHz D/A converter, renowned for its high degree of precision, to bring you the best sound quality possible
• This unit can be combined with our high-quality PMA-50 Class D integrated amplifier to achieve a high degree of reproducibility even for extremely weak signals
• Our high-quality PMA-50 Class D integrated amplifier contains Advanced AL32 Processing, Denon's unique analog waveform reproduction technology. Use it with this unit to get the most out of our exceptional sound quality that is both sensitive and powerful to a degree that belies the size of the enclosure

High Performance
• This new design is the optimal match for our PMA-50 integrated amplifier
• Supports vertical installation
• This unit can be placed either vertically or horizontally
• The orientation of the display changes automatically to match the orientation in which this unit is placed
• The operating mechanism of the CD slot allows smooth and steady opening and closing whether this unit is placed vertically or horizontally
• Supports MP3 and WMA file playback
• This unit can play back MP3 and WMA files recorded on CD-R and CD-RW discs
• The high-visibility organic EL display can show information such as the track name and artist name when playing back MP3s and WMAs
• The auto standby function reduces power consumption
• This unit comes with a system remote control that can also operate the PMA-50

What's in the box:

  • Denon Design Series DCD-50 Compact Hi-Fi CD Player
  • Remote Control with Battery
  • Power Cord
  • Coaxial Digital Cable
  • 4x Silver Caps
  • Quick Start Guide
  • CD-ROM (Owner's Manual)
  • Safety Instructions
  • Denon 1 Year Limited Warranty
