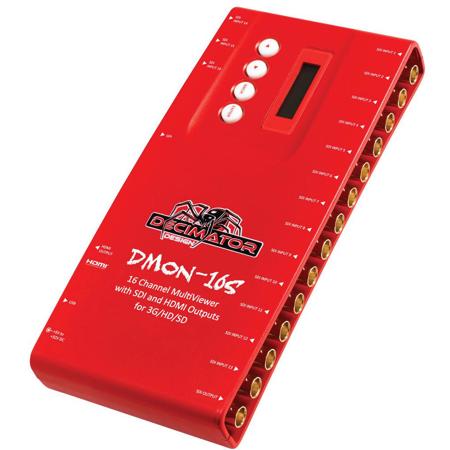

Decimator DMON-16S 16-Channel Multi-Viewer with SDI & HDMI Outputs for 3G/HD/SD and Custom Layouts

SKU: DEDD16S MFR: DD-16S
Earn VIP Reward Points

Key Features

  • Seamlessly monitor 16 channels with this multi-viewer, featuring SDI and HDMI outputs.
  • Enjoy custom layouts and easy setup for your unique video monitoring needs.
  • Experience reliable connection with 3G/HD/SD-SDI inputs and embedded audio support.
  • Ensure high resolution video output with HDMI, supporting up to 1080p at 60Hz.
  • Benefit from wide compatibility, suitable for various broadcast and production setups.
  • Get good value with this multi-viewer, offering professional features at an accessible price.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$119.99

4 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Decimator DMON-16S Specifications

  • SDI Input & Output Formats

    3G (SMPTE 424M at 2.97 Gbps and 2.967 Gbps):
    1080p at 60/59.94/50 Hz

    HD (SMPTE 292M/274M/296M at 1.485 Gbps and 1.435 Gbps)
    1080p/psf at 30/29.97/25/24/23.98 Hz
    1080i at 60/59.94/50 Hz
    720p at 60/59.94/50/30/29.97/25/24/23.98 Hz

    SD (SMPTE 259M at 270 Mbps)
    525i at 59.94 Hz
    625i at 50 Hz

  • HDMI Output Formats

    1080p at 60/59.94/50/30/29.97/25/24/23.98 Hz
    1080i at 60/59.94/50 Hz
    720p at 60/59.94/50/30/29.97/25 Hz
    525i at 59.94 Hz
    625i at 50 Hz

  • Inputs

    16x 3G/HD/SD-SDI on BNC (embedded audio support)
    Input Equalization > 100M using Belden 1694A
    USB for control and updates

  • Outputs

    HDMI Type-A
    1x SDI (3G/HD/SD)-SDI

  • LED Indicators

    Power, Signal Lock and Rate

  • Power

    +5V to +32V DC
    Positive Centre Pin

  • LCD / Button Menu Options

    HDMI output type
    Output Select
    Multi-Viewer Output Format
    Multi-Viewer Number of Windows
    Multi-Viewer Layout
    Multi-Viewer Audio Source
    Multi-Viewer Reference
    Full Screen is Scaled
    Input Routing
    GPI mode
    Setup

  • Dimensions

    8.7 x 4.1 x 1.2" / 220 x 103.7 x 29.5mm

  • UPC Code

    5060417390144

About Decimator DMON-16S

After a comprehensive upgrade, the DMON-16S 16-Channel Multi-Viewer now boasts of an array of features designed to enhance your viewing experience. This device is a cost-effective, miniature (3G/HD/SD)-SDI 1 to 16 Multi-Viewer and 16 to 1 input multiplexer, offering unparalleled flexibility and convenience.

The DMON-16S allows for custom layouts, with a variety of standard layouts available to suit your needs. Each of the 16 windows comes with a 16-character UMD overlay, with individual enables, custom positioning, and size adjustments. This ensures that each window can be tailored to your specific requirements.

Audio is a key component of any viewing experience, and the DMON-16S doesn't disappoint. It features an 8-channel audio metering overlay per window, with individual enables, custom positioning, and size adjustments. This ensures that your audio is always perfectly balanced and in sync with your visuals.

The device also includes Safe Action and Safe Title overlays per window, with individual enables and adjustments. This, coupled with the Centre Cross overlay per window with individual enable, ensures that your visuals are always perfectly framed and in focus.

The DMON-16S also features a unique Audio ID overlay and tally system. Tallies can be applied to either Tally Boxes (Default), Outside Safe Action Area, or Border, with up to 4 Tallies per window. This makes it easy to keep track of your inputs and outputs at a glance.

Switching between inputs is a breeze with the DMON-16S, thanks to its fast switching capability and Full-Screen scaling. The device also offers a selectable output format in both Full-Screen and Multi-Viewer mode, ensuring that your output always matches your input.

The DMON-16S also features low latency buffering for each input, allowing for non-synchronous inputs. This, combined with its linked (3G/HD/SD)-SDI and HDMI outputs, and 16 x (3G/HD/SD)-SDI inputs with auto detection (supporting 26 formats in total), ensures that your visuals are always crisp and clear, regardless of the source.

Each window on the DMON-16S is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously. This, along with variable aspect ratios per window, ensures that your visuals are always perfectly tailored to your needs.

The DMON-16S also features a Pass-Through mode, where the selected input is passed through to both the (3G/HD/SD)-SDI and HDMI outputs. This ensures that your visuals are always perfectly matched, regardless of the source.

The DMON-16S is a truly portable converter, incorporating Decimator's new easy-to-use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches, or having to carry around a computer to change a simple setting.

The device also features 32 GPI on a 37-pin D-SUB for Tallies and Remote Switching, RS422/485 on a 37-pin D-SUB for Dynamic UMD and Tallies using TSL protocol, and a USB port for control and firmware updates. All of this is housed in a robust aluminium box, with a metal thread locking DC power socket, ensuring that your DMON-16S is always safe and secure.

Decimator DMON-16S Features

  • Compact yet powerful 16-Channel Multi-Viewer with SDI & HDMI outputs for 3G/HD/SD formats
  • Customizable layouts with individual UMD overlays and 8-channel audio metering per window
  • Advanced tally system with up to 4 Tallies per window for easy tracking
  • Fast switching between inputs with Full-Screen scaling and selectable output format
  • Independent windows support any 3G/HD/SD format at any frame rate for simultaneous display
  • Robust aluminium casing with easy-to-use LCD and button control system, plus USB port for updates

Key Features

  • Seamlessly monitor 16 channels with this multi-viewer, featuring SDI and HDMI outputs.
  • Enjoy custom layouts and easy setup for your unique video monitoring needs.
  • Experience reliable connection with 3G/HD/SD-SDI inputs and embedded audio support.
  • Ensure high resolution video output with HDMI, supporting up to 1080p at 60Hz.
  • Benefit from wide compatibility, suitable for various broadcast and production setups.
  • Get good value with this multi-viewer, offering professional features at an accessible price.

What's in the box:

  • Decimator DMON-16S 16-Channel Multi-Viewer with SDI & HDMI Outputs
  • Power Supply
  • HDMI Cable
  • USB Cable
  • Decimator 3 Year Limited Warranty
