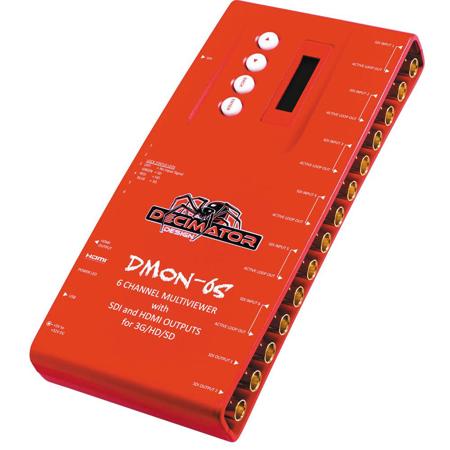

Decimator DMON-6S 6 Channel Multi-Viewer with SDI and HDMI Output for 3G/HD/SD & Custom Layout

SKU: DEDD6S MFR: DD-6S
Earn VIP Reward Points

Key Features

  • Seamlessly monitor with this Decimator multi-viewer, featuring 6 SDI inputs and HDMI output.
  • Enjoy custom layouts on this video switcher for optimal multi-source monitoring and control.
  • This 3G/HD/SD-SDI multi-viewer supports resolutions up to 1080p at 60Hz for crystal-clear video.
  • Simplify your workflow using this video distribution unit with dynamic tallies via GPI/RS422/485.
  • Get reliable connection with robust aluminum build and metal thread locking DC power socket.
  • Update firmware easily via USB on this affordable video switcher for long-term use and value.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$69.99

3 Year

$94.99

4 Year

$119.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?CHARLIES M : Because its what I needDAVON B : crew needGRAHAM M : It offers me the ability to send a single and multiple sources to many monitors

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Decimator DMON-6S Specifications

  • SDI Input & Output format: 3G

    SMPTE 424M at 2.97 and 2.967Gb/s: 1080p at 60/59.94/50Hz

  • SDI Input & Output format: HD

    SMPTE 292M/274M/296M at 1.485 and 1.435Gb/s:
    1080i at 60/59.94/50Hz
    1080p/psf at 30/29.97/25/24/23.98Hz
    720p at 60/59.94/50/30/29.97/25/24/23.98Hz

  • SDI Input & Output format: SD

    SMPTE 259M at 270Mb/s:
    625i50
    525i59.94

  • HDMI Output format

    1080p at 60/59.94/50Hz
    1080i at 60/59.94/50Hz
    1080p at 30/29.97/25/24/23.98Hz
    720p at 60/59.94/50/30/29.97/25625i50 / 525i59.94

  • LED Status

    Power
    6x Signal lock and rate

  • Power

    +5V to +32V DC
    Positive Centre Pin

  • LCD / Button menu Options

    HDMI output type
    Output Select
    Multi-Viewer Output Format
    Multi-Viewer Number of Windows
    Multi-Viewer Layout
    Multi-Viewer Audio Source
    Multi-Viewer Reference
    Full Screen is Scaled
    Input Routing
    GPI mode
    Setup

  • Inputs

    6x (3G/HD/SD)-SDI
    Input Equalization > 100M using Belden 1694A
    USB for control and updates

  • Outputs

    6x SDI (3G/HD/SD)-SDI Active Loop-throughs
    2x SDI (3G/HD/SD)-SDI
    HDMI Type A

  • Dimensions

    8.66 x 4.08 x 1.16" / 220 x 103.7 x 29.5mm

  • UPC Code

    5060417390083

About Decimator DMON-6S

Overcome your video display challenges with the Decimator DMON-6S 6 Channel Multi-Viewer, a high-quality and reliable solution for multi-screen viewing. This innovative device is not just a simple converter; it's a durable, user-friendly system that supports both SDI and HDMI outputs for 3G/HD/SD, offering unparalleled flexibility and compatibility.

The DMON-6S is designed with an easy-to-use LCD and button control system, eliminating the need for complex LED/button controls or dip switches. This feature allows you to effortlessly access and utilize its impressive capabilities without the need for a computer to change settings.

This multi-viewer is capable of displaying up to 8 different video sources on a single screen, making it an ideal choice for various applications. Whether you're managing security feeds, overseeing control rooms, or coordinating live events, the DMON-6S provides a seamless viewing experience.

With its support for a variety of input and output interfaces, including 3G HD-SDI, BNC, HDMI, and SDI, the DMON-6S stands out for its wide-ranging compatibility. This means you can connect it with a broad spectrum of video sources and displays, offering you more flexibility in routing multiple video sources to different displays.

In a nutshell, the Decimator DMON-6S 6 Channel Multi-Viewer is a robust and versatile tool that enhances your video display capabilities, making it an essential addition to your electronics arsenal.

Decimator DMON-6S Features

  • Low cost miniature (3G/HD/SD)-SDI 1 to 6 channel Multi-Viewer or 6 to 1 input multiplexer 6 x (3G/HD/SD)-SDI active loop copies of each input
  • Custom Layouts with various standard layouts
  • Fast switching between inputs using Full-Screen scaling
  • Selectable output format in both Full-Screen and Multi-Viewer mode
  • Low latency buffering for each input allowing non-synchronous inputs
  • Linked (3G/HD/SD)-SDI and HDMI outputs
  • 6x (3G/HD/SD)-SDI inputs with auto detection (6 Formats supported in total)
  • Each quadrant is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
  • Variable aspect ratios per quadrant
  • Pass-Through mode allowing any of the 6 inputs to be selected for output
  • In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI and HDMI outputs

Key Features

  • Seamlessly monitor with this Decimator multi-viewer, featuring 6 SDI inputs and HDMI output.
  • Enjoy custom layouts on this video switcher for optimal multi-source monitoring and control.
  • This 3G/HD/SD-SDI multi-viewer supports resolutions up to 1080p at 60Hz for crystal-clear video.
  • Simplify your workflow using this video distribution unit with dynamic tallies via GPI/RS422/485.
  • Get reliable connection with robust aluminum build and metal thread locking DC power socket.
  • Update firmware easily via USB on this affordable video switcher for long-term use and value.

What's in the box:

  • Decimator DMON-6S 6 Channel Multi-Viewer with SDI and HDMI Output
  • 32 GPI on 37-pin DSUB for Dynamic Tallies
  • RS422/485 on 37-pin DSUB for Dynamic Tallies
  • USB Port for Control and Firmware Updates
  • Robust Aluminum Box
  • Metal Thread Locking DC Power Socket
  • Power Supply
  • HDMI Cable
  • USB Cable
  • Decimator 3 Year Limited Warranty
