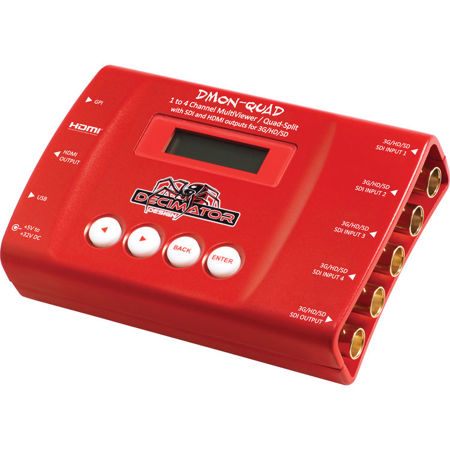

Decimator DMON-QUAD 4-Channel 3G/HD/SD-SDI Quad Split Multi-Viewer with HDMI Outputs

SKU: DEDDDMONQUAD MFR: DD-DMON-QUAD
Earn VIP Reward Points

Key Features

  • Get crystal-clear video with this multi-viewer, supporting up to 1080p high resolution.
  • Enjoy low latency switching between four 3G/HD/SD-SDI inputs for seamless live streams.
  • Easy setup with included HDMI and USB cables; get your video switcher running in minutes!
  • Reliable connection ensures stable quad split multi-viewing for professional monitoring setups.
  • Wide compatibility: Supports various formats, including 1080p, 1080i, 720p, NTSC, and PAL.
  • Excellent value: A cost-effective solution for multi-camera monitoring with HDMI outputs.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$69.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?NICHOLAS C : I have used these previously and were great

Reviews about this item

Review Summary

2021-12-08T08:27:21

Rated 5 out of 5

Best Scaler Conversion Adapter out there.

These devices are so CLUTCH. They get me out of so many crazy difficult scenarios that pop up during a virtual/live/hybrid event. Lastly, love not having dipswitches! Signal Conversion, multi view, all of the above. Fantastic options at a great price.

Stephen V.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Decimator DMON-QUAD Specifications

  • Inputs

    4x BNC, SD/HD/3G-SDI
    1 x USB Mini-B, control and updates
    1x RJ-45, UMD and Tallies via RS-422/485

  • Outputs

    1x SD/HD/3G-SDI
    1 x HDMI

  • Resolution Support

    SDI:
    1080p 23.98/24/29.97/30/50/59.94/60
    1080PsF 23.98/24/29.97/30
    1080i 50/59.94/60
    720p 23.98/24/29.97/30/50/59.94/60
    NTSC
    PAL

    HDMI:
    1080p 23.98/24/29.97/30/50/59.94/60
    1080PsF 23.98/24/29.97/30
    1080i 50/59.94/60
    720p 23.98/24/29.97/30/50/59.94/60
    NTSC
    PAL

  • Power

    Input: 5-32 VDC, locking coaxial (center positive)

  • Dimensions

    3.1 x 4.8 x 1.2" (7.87 x 12.19 x 3.05cm)

  • UPC Code

    5060417390182

About Decimator DMON-QUAD

FEATURED REVIEWS

Best Scaler Conversion Adapter out there.

By Stephen V.

These devices are so CLUTCH. They get me out of so many crazy difficult scenarios that pop up during a virtual/live/hybrid event. Lastly, love not having dipswitches! Signal Conversion, multi view, all of the above. Fantastic options at a great price.

Find the ultimate solution for professional video monitoring with the DMON-QUAD 4-Channel 3G/HD/SD-SDI Quad Split Multi-Viewer. This high-performance device supports 3G-SDI level A and B on all inputs and outputs, offering seamless conversion capabilities between the two. Ideal for live events, broadcast monitoring, and post-production, the DMON-QUAD is a versatile and cost-effective multi-viewer that simplifies the management of multiple video sources.

Experience the flexibility of custom layouts, with a variety of standard configurations to choose from, ensuring that you can tailor your video wall to meet the specific needs of any project. Each of the four windows features a 16-character UMD (Under Monitor Display) overlay, which can be individually enabled and positioned, allowing for clear identification of each feed. Additionally, the 8-channel audio metering overlay per window provides precise audio level monitoring, with customizable positioning and sizing to fit your workflow.

Enhance your video monitoring with features such as horizontal and vertical image flipping per window, ensuring that your content is always displayed correctly. The audio ID overlay and tally system enhance communication within production teams, with the option to display tallies in boxes or as a border highlight, supporting up to four tallies per window.

Switching between inputs is swift and efficient, thanks to the full-screen scaling option, which allows for quick changes without compromising on quality. The selectable output format in both full-screen and multi-viewer modes ensures compatibility with a wide range of display devices.

The DMON-QUAD boasts low latency buffering for each input, accommodating non-synchronous sources without any hiccups. With linked 3G/HD/SD-SDI and HDMI outputs, you can be assured of consistent signal integrity across both digital interfaces. The device automatically detects the format of the four SDI inputs, supporting a total of 26 different formats, and allows for simultaneous display of different 3G/HD/SD formats and frame rates.

Variable aspect ratios for each window provide additional control over how your content is presented, while the pass-through mode enables direct transmission of the selected input through both SDI and HDMI outputs.

Designed with portability and ease of use in mind, the DMON-QUAD features an intuitive LCD and button control system, eliminating the need for complex LED/button configurations, dip switches, or external computers for simple setting adjustments.

This robust unit is housed in a durable aluminum box and includes a metal thread locking DC power socket for secure power connection. Connectivity options are expanded with GPI on an RJ-45 connector for tallies and remote switching, RS422/485 on an RJ-45 connector for dynamic UMD and tallies, and a USB port for control and firmware updates. The package comes complete with a power supply, HDMI cable, and USB cable, ensuring that you have everything you need to get started right out of the box.

Elevate your video production setup with the DMON-QUAD 4-Channel 3G/HD/SD-SDI Quad Split Multi-Viewer, the professional's choice for reliable and flexible video monitoring.

Decimator DMON-QUAD Features

  • High-performance 4-channel 3G/HD/SD-SDI Quad Split Multi-Viewer with HDMI outputs
  • Supports 3G-SDI level A and B on all inputs and outputs for seamless conversion
  • Customizable layout options with 16-character UMD and 8-channel audio metering overlays
  • Features horizontal and vertical image flipping, audio ID overlay, and versatile tally system
  • Low latency buffering for each input and simultaneous display of different formats and frame rates
  • Robust and portable design with intuitive LCD and button control system, plus comprehensive connectivity options

Key Features

  • Get crystal-clear video with this multi-viewer, supporting up to 1080p high resolution.
  • Enjoy low latency switching between four 3G/HD/SD-SDI inputs for seamless live streams.
  • Easy setup with included HDMI and USB cables; get your video switcher running in minutes!
  • Reliable connection ensures stable quad split multi-viewing for professional monitoring setups.
  • Wide compatibility: Supports various formats, including 1080p, 1080i, 720p, NTSC, and PAL.
  • Excellent value: A cost-effective solution for multi-camera monitoring with HDMI outputs.

What's in the box:

  • Decimator DMON-QUAD 4-Channel 3G/HD/SD-SDI Quad Split Multi-Viewer with HDMI Outputs
  • Power Supply
  • HDMI Cable
  • USB Cable
  • Decimator 3 Year Warranty
