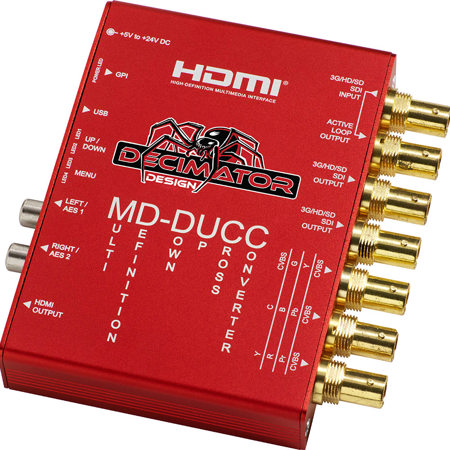

Decimator MD-DUCC Multi-Definiton Down Up Cross Converter SDI to SDI, HDMI and Analogue Video with 2x AES/EBU and 2x Analogue Audio Outputs

SKU: DEDDDUCC MFR: DD-DUCC
Earn VIP Reward Points

Key Features

  • Seamlessly convert SDI to SDI, HDMI, and analog video with this versatile format converter.
  • Achieve high-quality video output with real-time down/up/cross conversion capabilities.
  • Enjoy stable connections & easy setup for professional video format conversion tasks.
  • Utilize multiple outputs, including HDMI and SDI, for flexible video routing options.
  • Get precise audio control with AES/EBU and analog outputs for superior sound quality.
  • Affordable video solution: perfect for broadcast, live events, and studio environments.
See More Product Details
Special Order?Estimated to Ship: 08/10/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$34.99

2 Year

$59.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Decimator MD-DUCC Specifications

  • Video Formats

    3G:SMPTE 424M at 2.97 and 2.967Gb/s
    1080p at 60/59.94/50Hz

    HD:SMPTE 292M/274M/296M at 1.485 and 1.435Gb/s
    1080i at 60/59.94/50Hz
    1080p/psf at 30/29.97/25/24/23.98Hz
    720p at 60/59.94/50/30/29.97/25/24/23.98Hz
    SD:SMPTE 259M at 270Mb/s
    625i50
    525i59.94

  • Inputs

    (3G/HD/SD)-SDI 10-bit
    Conditional Maximum Equalization cable length of 400M for SDI, 200M for HD-SDI and 100M 3G-SDI using Belden 1694A

  • Led Status

    Power
    Signal Lock

  • Power

    5V to +24V DC, 5 Watts
    Positive Centre Pin

  • Controls

    HDMI format type
    Analogue Video format type
    Output format
    Aspect conversion type for HD to HD, HD to SD, SD to HD and SD to SD conversions
    On-Screen Overlays Enables
    Basic Audio Meter control
    Basic Graticule Enables

  • Outputs

    HDMI
    1x (3G/HD/SD)-SDI Active Loop-Through
    2x (3G/HD/SD)-SDI 10-bit Outputs
    (3 x CVBS) / (Y, Pb, Pr) / (G, B, R) / (CVBS, Y & C)
    AES 1 / Unbalanced Analogue Audio - Left
    AES 2 / Unbalanced Analogue Audio - Right

  • Dimensions

    90 x 123 x 23mm / 3.54 x 4.84 x 0.90"

  • UPC Code

    5060417390045

About Decimator MD-DUCC

While the Decimator MD-DUCC Multi-Definition Down Up Cross Converter SDI to SDI may seem like a mouthful, its functionality is straightforward and indispensable for broadcast professionals. This high-quality, durable device is an all-in-one solution, eliminating the need for multiple converters. It effortlessly accepts any SDI format and allows you to select your desired output format, be it SDI, HDMI, or analogue.

This innovative converter is not just efficient but also versatile, offering 2x AES/EBU and 2x Analogue Audio Outputs. It's a reliable tool that can handle a wide range of video and audio signals, making it a go-to choice for a variety of applications.

Control of the MD-DUCC is user-friendly, with options to manage settings via a Windows app using USB or directly on the unit using the dip switch. The product package includes a Locking DC Power Supply, HDMI Cable, and Mounting Bracket, ensuring you have everything you need for seamless operation.

Crafted by Decimator, a trusted name in the professional video and audio industry, this converter is designed to meet the demanding needs of professionals, promising performance that is as robust as it is reliable. Trust in the Decimator MD-DUCC Multi-Definition Down Up Cross Converter SDI to SDI for your video and audio conversion needs.

Decimator MD-DUCC Features

  • Auto detection of 3G, HD or SD (26 formats total)
  • True Down Up Cross conversion (select the required output format, no matter what the input format is)
  • Complete 16:9, 14:9 and 4:3 aspect ratio conversion
  • Selectable analogue video output
  • 2x 10-bit outputs with audio automatically delayed or passed
  • 2x RCA connectors to output de-embedded audio
  • Professional motion-adaptive de-interlacing
  • Full 16 Channel audio metering
  • Graticule Generator/Text Overlays
  • Active Loop Through Output
  • GPI on RJ-45 for Tallies

Key Features

  • Seamlessly convert SDI to SDI, HDMI, and analog video with this versatile format converter.
  • Achieve high-quality video output with real-time down/up/cross conversion capabilities.
  • Enjoy stable connections & easy setup for professional video format conversion tasks.
  • Utilize multiple outputs, including HDMI and SDI, for flexible video routing options.
  • Get precise audio control with AES/EBU and analog outputs for superior sound quality.
  • Affordable video solution: perfect for broadcast, live events, and studio environments.

What's in the box:

  • Decimator MD-DUCC Multi-Definiton Down Up Cross Converter SDI to SDI
  • Locking DC Power Supply
  • HDMI Cable & Mounting Bracket
  • Decimator 1 Year Warranty
