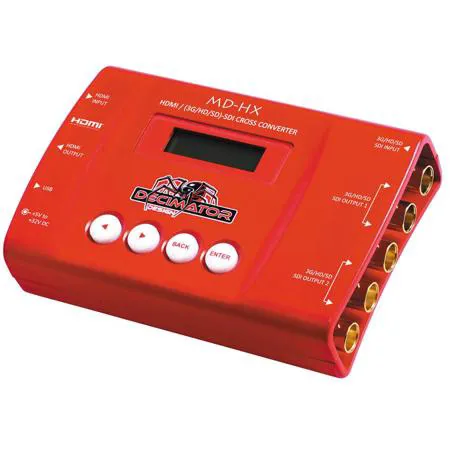

Decimator MD-HX HDMI & SDI Cross Converter with Scaling & Frame Rate Conversion
Decimator MD-HX: Picture 1 thumbnail
Decimator MD-HX: Picture 2 thumbnail
Decimator MD-HX: Picture 3 thumbnail
See all Decimator items
Top Rated Gear

Decimator MD-HX HDMI and SDI Cross Converter with Scaling & Frame Rate Conversion

SKU: DEDDHX MFR: DD-HX
(15)2 questions, 1 answer
$325.00
OR
$55/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Seamlessly convert HDMI to SDI and vice versa with this versatile cross converter.
  • Achieve high-quality video scaling and frame rate conversion for optimal viewing.
  • Enjoy stable connection for live streaming and broadcasting with SDI/HDMI inputs.
  • This format converter supports multiple resolutions, ensuring compatibility.
  • Use real-time conversion for on-the-fly adjustments during live productions.
  • Get professional-grade video conversion without breaking the bank; affordable price.
See More Product Details
FREE 2-Day Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$69.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : what is the country of origin?
Shopper : is this the same as the model "md-hx"?ANDREW R : We don't appear to offer an "MD-HX", there is no way for us to compare.
Shopper : Why Did You Choose This?ALEX M : Direct replacement to Blackmagic UDC.TY S : it was the only place that had the quantity i needed and could arrive in time for my project.COREY C : Needed for a projectMICHAEL E : Perfect for all conversions. It always ends up saving the day!AL M : I need it for Video conversion recommended by a vendor.Chaitanya g : av productionAlex K : Decimator's are the most reliable.MICHAEL C : Amazingly ReliableDAWNCHERE W : Reliable signal converter. I also like the scaling feature on these and with multiple SDI outs it also works as a DA.THOMAS N : Reverse image for teleprompter useMICHAEL L : live events for long SDI runsAaron W : It's somewhat of a tool that I use for work.MICHAEL P : I use this to send a 1080i signal to a big screen while recording my show in 1080p.Roberto E : a friend recommendationGABRIEL Z : for rentalANA C : WorkingPAUL I : currently it's the only device I know that can do a mirror on a hdmi stream so that we can do live lightboard sessions.CHRIS H : To Down Up Convert and output multiple signal types with scaling.PARKVIEW P : I use one currently, and I need another one.STEPHANIE S : Needed to convert a Cannon R5 camera with black magic systemMari W : Need moreMARK F : ATEM Production Studio 4k 1/ME has no scalers :-(John W : Immediate need at work. Please email copy of invoiceLOUIS K : Great company. Does everything it says and works every time.DANIEL F : To add to my video production/streaming toolkit.ZEB M : Referred by consultant at Nates mediaIAN P : Works every time, all time.

Reviews about this item

Review Summary

2024-09-11T04:54:57

Rated 5 out of 5

Very functional peace

This product works great. I don't have to worry about what source size and refresh rate. Am I sending in because the decimator will scale it to what I need to send out an amplify the signal.

FINANCIAL S.

2022-04-08T11:09:00

Rated 5 out of 5

Great scaler

Decimator continues to put out great quality products.

Parkview P.

2022-03-07T07:13:56

Rated 5 out of 5

Works great

Works exactly as described! Great device at a great price!

JEFFREY S.

2021-05-13T08:39:43

Rated 5 out of 5

Great product, good price

Terrific range of conversion options, easy to use, reasonably priced for the functionality offered.

HAL H.

2021-04-11T09:15:46

Rated 5 out of 5

As it is

Is pretty straight forward device. Works excellent.

KYDENNIS S.

2020-09-30T10:42:29

Rated 5 out of 5

Best Scaler/Converter on the Market

Not much this little box cannot do. We have three of them and they always come in handy.

CHRIS S.

2019-02-27T10:23:49

Rated 5 out of 5

Excellent product

Excellent product does everything as advertised we were so excited that we don’t have to spend so much money on a new camera this little box that the job thank you

Vesley O.

2018-08-28T09:04:14

Rated 4 out of 5

Good value for ins and outs works with my Tricaster mini SDI

Solid build and I like the power connector is secure. The manual is non existent so it took a few trips through the menu to configure my desired ins and outs. I am using this to connect an HDMI camera to the Tricaster mini SDI. It works well for my needs.

MONIQUE V.

2018-05-03T08:40:34

Rated 5 out of 5

Solid Unit

It seems built like a tank, solid, heavy, with a notable heat sink. Easy to use as well, with plenty of options.

Christopher C.

2018-02-21T11:19:16

Rated 5 out of 5

Worked flawlessly

Installed the unit and with very little adjustment it converted the signal to our satisfaction

ACCOUNTS P.

2018-01-30T12:25:57

Rated 5 out of 5

Great Bidirectional Converter

Finding this to be a great device to us to use while capturing from different lap tops to an atomos to ensure the input to the atomos remains a fixed input type, size and frame rate!

Tim C.

2017-08-08T18:39:59

Rated 5 out of 5

Problem solver. Plain and simple.

Brilliant design. Well built. USB control makes it even easier.

Allen D.

2017-02-26T04:11:54

Rated 5 out of 5

Must have in your workbox!

The Decimator MD-HX Cross Converter is a Swiss Army knife. A must have in all professional situations to solve a myriad of signal issues. Highly recommended.

Jason M.

2016-10-27T11:53:04

Rated 5 out of 5

A swiss Army Knife video device

I think the title says it all, a swiss army knife for video device! Use it for many different configurations . it can trans-code and scale in two directions at the same time. A show saver and real work horse!

Gregg M.

2016-02-17T10:21:14

Rated 5 out of 5

great product

wonderfull job! bi directional , easy to use, better than only une conversor of BMD

juan a.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Decimator MD-HX Specifications

  • SDI format: 3G

    SMPTE 424M at 2.97 and 2.967Gb/s: 1080p at 60/59.94/50Hz

  • SDI format: HD

    SMPTE 292M/274M/296M at 1.485 and 1.435Gb/s:
    1080i at 60/59.94/50Hz
    1080p/psf at 30/29.97/25/24/23.98Hz
    720p at 60/59.94/50/30/29.97/25/24/23.98Hz

  • SDI format: SD

    SMPTE 259M at 270Mb/s:
    625i50
    525i59.94

  • Inputs

    HDMI
    (3G/HD/SD)-SDI 10-bit

  • Power

    +5V to +32V DC
    Positive Centre Pin

  • Outputs

    HDMI
    (3G/HD/SD)-SDI Active Loop-Through
    2x (3G/HD/SD)-SDI 10-bit Outputs

  • LCD / Button menu Options

    SDI output source from HDMI IN, SDI IN, Scaler
    SDI output 1 is loop
    HDMI output type and source from HDMI IN, SDI IN, Scaler
    Scaler source, reference, format and Aspect Controls
    Audio pair routing for HDMI and SDI output
    LCD backlight off time
    Back to Status time

  • Modes

    HDMI to SDI while simultaneously converting SDI to HDMI
    HDMI to HDMI while simultaneously converting SDI to SDI
    HDMI to SDI and HDMI
    SDI to SDI and HDMI

  • Dimensions

    3.13 x 4.84 x 1.16" / 79.5 x 123 x 29.5mm

  • UPC Code

    5060417390007

About Decimator MD-HX

FEATURED REVIEWS

Very functional peace

By FINANCIAL S.

This product works great. I don't have to worry about what source size and refresh rate. Am I sending in because the decimator will scale it to what I need to send out an amplify the signal.

Great scaler

By Parkview P.

Decimator continues to put out great quality products.

When it comes to high-quality, reliable video signal conversion, the Decimator MD-HX HDMI and SDI Cross Converter with Scaling & Frame Rate Conversion stands out as an innovative solution. This durable, user-friendly device is a compact powerhouse, designed to effortlessly convert 3G HD-SDI, HDMI, and SDI signals, making it an essential tool for professionals in the video industry.

The Decimator MD-HX is more than just a converter. It's a versatile tool equipped with an intuitive LCD and button control system, eliminating the need for a computer or complex switch adjustments to access its comprehensive features. This innovative design makes it easier than ever to manage your signal conversion needs on the go.

This converter offers an impressive 14 conversion modes, providing flexibility and adaptability to suit a wide range of scenarios. Whether you need SDI In to HDMI and SDI Out, HDMI In to SDI Out and Scaled SDI In to HDMI Out, or any of the other numerous combinations, this device has you covered.

The Decimator MD-HX HDMI and SDI Cross Converter is not just a product, it's a solution to a myriad of signal issues, as attested by its high ratings and positive customer reviews. Choose the Decimator MD-HX for a seamless, efficient, and reliable video signal conversion experience.

Decimator MD-HX Features

  • Combines several converters for the price of one (e.g. SDI to HDMI, HDMI to SDI, Down Up Cross Converter, etc.)
  • Robust Aluminum Case with easy to use LCD and button control system.
  • 4 x (3G/HD/SD)-SDI outputs, that allow it to be used as a 1 to 4 distribution amplifier. Output pair 1 can either be a copy of the SDI input (default) or the same as pair 2
  • Audio pairs in the SDI and HDMI outputs can be rearranged as required
  • Includes the same Down Up Cross Converter from the multi-award winning DD-DUCC, allowing either the HDMI or SDI input to be scaled and/or frame rate converted to the required standard

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Seamlessly convert HDMI to SDI and vice versa with this versatile cross converter.
  • Achieve high-quality video scaling and frame rate conversion for optimal viewing.
  • Enjoy stable connection for live streaming and broadcasting with SDI/HDMI inputs.
  • This format converter supports multiple resolutions, ensuring compatibility.
  • Use real-time conversion for on-the-fly adjustments during live productions.
  • Get professional-grade video conversion without breaking the bank; affordable price.

What's in the box:

  • Decimator MD-HX HDMI & SDI Cross Converter with Scaling & Frame Rate Conversion
  • Power Supply
  • HDMI Cable
  • USB Cable
  • Decimator 3 Year Limited Warranty
