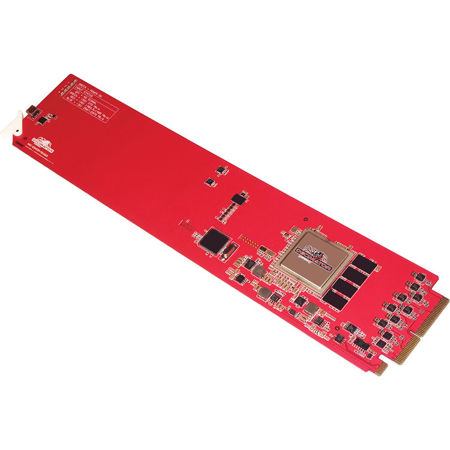

Decimator MC-DMON-QUAD 4-Channel 3G-SDI Multiviewer for OpenGear Platforms

After extensive research and development, we present the MC-DMON-QUAD 4-Channel 3G-SDI Multiviewer for OpenGear Platforms. This advanced device offers a 1 to 4 channel (3G/HD/SD)-SDI MultiViewer with customizable layouts, providing a versatile solution for your video processing needs.

The MC-DMON-QUAD supports both 3G level A and B on its inputs and output, facilitating seamless conversion between these levels. This feature-rich multiviewer is a cost-effective solution that can function as a 1 to 4 MultiViewer or a 4 to 1 input multiplexer, offering flexibility in various broadcasting scenarios.

One of the standout features of this device is its 16-character UMD overlay per window. This feature comes with individual enables, custom positioning, and size adjustments, providing a high level of customization. Additionally, it offers an 8-channel audio metering overlay per window, again with individual enables, custom positioning, and size adjustments. This ensures precise audio monitoring for optimal output.

The MC-DMON-QUAD also includes an audio ID overlay and a 3-pin connector on the DR1-10B1G rear module. This allows for dynamic UMD and tallies via RS422/485, using the industry-standard TSL protocol. Tallies can be applied to either tally boxes (default) or borders, with tally boxes supporting up to 4 tallies per window.

This multiviewer is designed for quick switching between inputs using full-screen scaling and offers a selectable output format in both full-screen MultiViewer mode. It also features low latency buffering for each input, allowing non-synchronous inputs for smooth, uninterrupted viewing.

The MC-DMON-QUAD comes with 4x (3G/HD/SD)-SDI inputs with auto-detection, supporting a total of 29 formats. Each quadrant operates independently, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously. This feature ensures maximum compatibility and flexibility in a variety of broadcasting environments.

In the Pass-Through mode, the selected input is passed through to both the (3G/HD/SD)-SDI outputs, ensuring seamless transmission. The device also includes a USB Mini B port for control and firmware updates, ensuring your multiviewer stays up-to-date with the latest advancements.

Finally, the MC-DMON-QUAD supports the openGear DashBoard for control, providing a user-friendly interface for easy operation. Please note, the DR1-10B1G rear module, which features 10 BNC connectors and a 3-pin connector for RS422/485, is sold separately.

In conclusion, the MC-DMON-QUAD 4-Channel 3G-SDI Multiviewer for OpenGear Platforms is a comprehensive solution for all your video processing and broadcasting needs.
