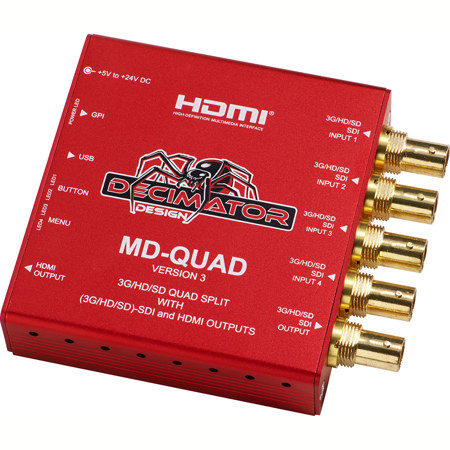

Decimator MD-QUAD (3G/HD/SD)SDI Quad Split with (3G/HD/SD)-SDI and HDMI Outputs
SKU: DEDDMDQUAD MFR: DD-MD-QUAD
Earn VIP Reward PointsKey Features
- Seamlessly monitor up to four SDI sources with the Decimator MD-QUAD's quad split feature.
- Enjoy high resolution output via HDMI, perfect for broadcast and professional video setups.
- Get low latency performance with this video switcher, ensuring real-time monitoring accuracy.
- Benefit from wide compatibility; supports 3G/HD/SD-SDI formats for versatile use cases.
- Easy setup with included accessories like power supply, HDMI, and USB cables for quick use.
- Rely on a stable SDI connection for dependable video feeds during critical productions.
Special Order?Estimated to Ship: 09/10/2025
Free Shipping
See Options
1
Protect your gear with Adorama Protect.* Learn more
2 Year
$89.99
3 Year
$109.99
4 Year
$139.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About Decimator MD-QUAD
The Decimator MD-QUAD (3G/HD/SD)SDI Quad Split with (3G/HD/SD)-SDI and HDMI Outputs is a low cost, miniature SDI Quad-Splitter with SDI and HDMI Outputs. With four independent SDI inputs, you can now monitor your camera feeds without the hassle of ensuring all inputs are the same SDI standard. Decimator MD-QUAD (3G/HD/SD)SDI Quad Split with (3G/HD/SD)-SDI and HDMI Outputs.
Decimator MD-QUAD Features
- Low cost miniature (3G/HD/SD)-SDI 4 to 1 Quad Split Multiviewer or 4 to 1 input multiplexer
- Selectable output format in Quad-Split mode
- Low latency buffering for each input allowing non-synchronous inputs
- Linked (3G/HD/SD)-SDI and HDMI outputs
- 4 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
- 8-Channel Audio metering for each quadrant
- The first two audio groups individually selectable
- Vertical or Horizontal Bars
- AES/EBU, VU, Extended VU, BBC, EBU, DIN and NORDIC Scales
- Bar & Float, Bar only or Float only (Float is not available for MQS serials)
- Transparency adjustment
- Separate Bar and Float Ballistics control
- Adjustable Reference level
- Red, Yellow and Green Range adjustment
- Bar thickness adjustment
- Margin adjustment
- Each quadrant is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
- Variable aspect ratios per quadrant
- All 4 inputs can be displayed simultaneously on a single output
- On-Screen 20 character IDs (UMDs) for each input
- An extensive selection of user controllable functions via an easy to use rotary encoder for menu selection
- LEDs and a push button can then be used for status and control
- USB port for control and updates
- GPI on RJ-45 for remote switching and Locking DC Power Socket
