2020-08-17T20:00:00

Rated 4 out of 5

Ceiling mounted for Atmos

I held off for a while on an Atmos setup. I finally gave in and chose the DI 8R (2 pair) after reading recommendations on a forum. Installation is very easy. Sound quality is very good for surround (Atmos) setup. Power handling is great (separate power amp each pair). They also do an excellent job using DTS-X and Auro 3D modes blending very well with my speakers; ST-L, Mythos Ten, Mythos Gem XL (F Height, Side and Rear).

Maddmaster

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Definitive Technology Disappearing DI Specifications

  • Color

    White

  • Driver Complement

    1x 1" (2.54cm) d (Round) Pivoting Dome Tweeter - Tweeter
    1x 6.5" (16.51cm) d (Round) BDSS Bass/Mid - Mid/Woofer

  • Shape

    Round

  • Speaker Inputs

    1x Pair of Heavy Duty, Spring Loaded - na

  • Total Frequency Response

    26 Hz - 30,000Hz

  • Nominal Impedance

    8 ohms

  • Max Sensitivity (1 watt @ 1 meter)

    90 dB

  • Type

    A/V Receiver Crossover Setting

  • A/V Receiver Crossover Settings

    Small (60Hz)

  • Depth

    3.63" (9.22cm)

  • Diameter

    7.25" (18.42cm)
    Grille: 8.31" (21.11cm)

  • Weight

    3.8 lbs (1.72kg)

  • UPC Code

    093207063763

About Definitive Technology Disappearing DI

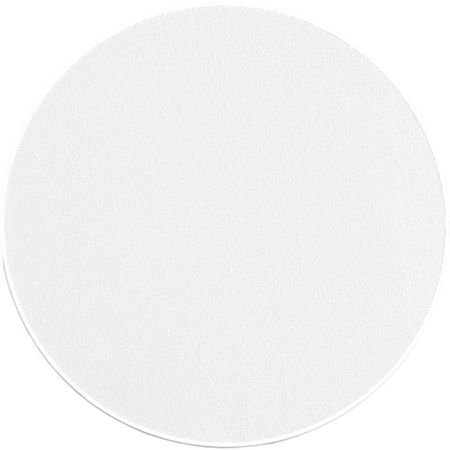

DI 6.5R 6.5" In-Wall/In-Ceiling Speaker - Discrete Speakers, Dramatic Sound
The DI 6.5R punches far beyond its 8.31" hidden flange grille, delivering the dynamics of much larger speakers. Bursting with patented driver technology, a pivotable tweeter, and clever acoustic innovations, the DI 6.5R delivers a full, rich audio experience while remaining virtually invisible.

• Room-filling Fidelity: 6.5" BDSS Woofer
• Clear, Clean, and Detailed: Pure Aluminum Dome Tweeter
• Tailored to Your Space: Environmental EQ & Pivotable Tweeter

Our Best Freestanding Speaker Technologies

Invisible Audio, Astonishing Performance
The culmination of decades of engineering, DI Series Loudspeakers deliver sensational sound quality while virtually disappearing into walls and ceilings with our hidden flange design. Treat yourself to dynamic bass, smooth midrange, and sparkling treble with little impact on your decor.

Environmental EQ fine-tunes the highs for any space
Adjust the Environmental EQ switch to customize tweeter output for your listening environment. Engage the [+] setting to boost treble in sound-absorbing rooms, or the [-] setting to reduce treble in lively rooms. Leave in the Center position for rooms with average reflectivity.

Pivoting Tweeter for controlled directivity
The ultralight, rigid construction of DI Series aluminum dome tweeters enables them to play significantly higher frequencies than we can hear, enabling optimum linearity within the range of human hearing. The DI 6.5R features a pivotable tweeter for clean, sparkling, distortion-free highs, with dispersion customizable to your space.

Exclusive BDSS Technology midrange/bass woofer
For more bass in less space while keeping midrange detailed and responsive, the DI 6.5R 6.5" mid/bass woofer leverages our exclusive Balanced Double Surround System (BDSS) driver technology. The double butyl rubber surrounds produce a much greater cone excursion than other comparably sized drivers. And the DI 6.5R's rigid PolyStone basket provides a sturdy launching pad for the powerful excursion.

With BDSS drivers, you'll enjoy superior midrange/bass dynamics and detail in packages sized for stealth.

Acoustic Wizardry for the details that make the difference
The DI 6.5R features a sophisticated adjustable crossover network with custom, high-precision components for superior sonic purity.

Surrounding the BDSS driver is a specially-contoured AeroRing that precisely distributes natural, well-balanced sound by minimizing diffraction.

The Axially-Aligned configuration of the tweeter with the woofer provides broader sound dispersion and more natural balance.

Disappearing Design

Installs Easily and Reliably
Whether new or existing construction, walls or ceilings, residential or commercial, DI Series speakers offer simple, stealthy installations. Our engineers have extensive custom installation experience, and have felt your pain when working with hastily-engineered products. From pivoting lock arms to paintable grilles and frames to sure-grip magnetic grille fasteners, DI Series speakers are installer-friendly to the extreme.

All the Stealth none of the complexity
Hidden flange architecture is fantastic for decor, because the nearly border-free design virtually disappears into walls and ceilings. What isnt fantastic is the typical installation complexity. However, DI Series hidden flange designs are as easy to install as traditional flanged flush-mount speakers, and dont require custom Sheetrock or spackle skills to get their practically invisible look.

Paintable Magnetic Grille for the final custom touch
All DI Series speaker grilles and grille frames are paintable, with easy step-by-step instructions. Once you have your perfect look, powerful neodymium magnets attach the grilles to the speakers for a secure, tool-free finish.

New Construction installations made easy
For new construction projects, streamline your DI Series speaker installations with the optional Pre-Construction Rough-in Brackets. Easily attach the bracket to studs or joists before the drywall goes up, using your choice of nails, drywall screws, or construction staples (not included). Adjustable arms allow for unusual stud or joist locations.

A Disappearing Act for every installation
Whatever the setting-residential or commercial, music room or home theater-DI Series has designed a disappearing act ready to entertain you. From round or square ceiling speakers, to in-wall speakers, to Bipolar surround speakers, to in-wall subwoofers, DI Series is ready to rock a venue of any size-invisibly. Mix and match as you please, confident that you'll always enjoy Definitive Technology's legendary speaker voicing.

Definitive Technology Disappearing DI Features

  • Simple conventional installation - no spackle work required
  • Latest generation BDSS drivers
  • Pivoting Pure Aluminum dome tweeters
  • Axially Aligned design ensures broad, balanced coverage area
  • Sure-grip magnetic grille fasteners
  • Adjustable high-definition crossover
  • Optional fire-rated enclosures
  • Cast PolyStone baskets for rigidity without "ringing"

Key Features

  • Simple conventional installation - no spackle work required
  • Latest generation BDSS drivers
  • Pivoting Pure Aluminum dome tweeters
  • Axially Aligned design ensures broad, balanced coverage area
  • Sure-grip magnetic grille fasteners
  • Adjustable high-definition crossover

What's in the box:

  • Definitive Technology Disappearing Series DI 6.5R Round 6.5" 2-Way In-Ceiling/In-Wall Speaker (White)
  • Wall Mounting Template
  • Paintable Magnetic Grille
  • Definitive Technology 5 Year Limited Warranty
