Denon DN-106S Specifications

  • LF Driver

    6.5 inch (159mm) long-excursion woofer

  • HF Driver

    3/4 inch (20mm) wide dispersion tweeter

  • Frequency Response

    57 Hz - 20 kHz

  • Driver Power

    60 W (RMS) and 120 W (Peak)

  • Sensitivity

    90dB (1W/1m)

  • Power Tappings

    70V
    60 W
    30 W
    15 W
    7.5 W
    Impedance 16 Ohms
    100V
    60 W
    30 W
    15 W
    Impedance 16 Ohms

  • Cutout Hole Diameter

    8.75" / 22.23cm

  • In-Ceiling Clearance Height

    6.82" / 17.32cm

  • UPC Code

    694318018675

About Denon DN-106S

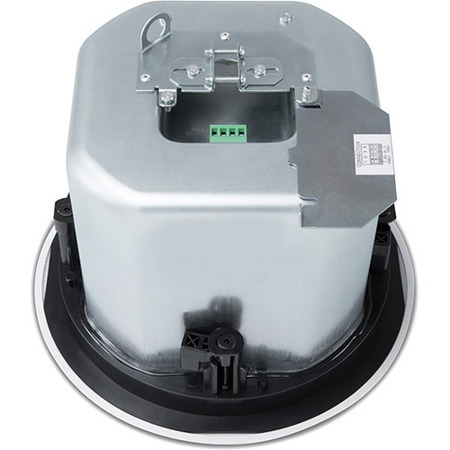

Denon Professional's range of ceiling loudspeaker is designed to deliver exceptionally accurate, articulate sound while easily meeting commercial requirements for fire-resistance and suitability for multiple unit installation. It features a metal "can" rear enclosure, which provides a fire barrier behind the speaker to meet commercial fire codes. It also serves as the woofer's enclosure to optimize its bass tuning and low frequency response. The speaker has 70/100-volt transformers to facilitate multiple unit installations without the impedance and level-matching concerns of paralleled transformer less speakers.

There are three different size models with 4-inch, 6-1/2 inch and 8-inch woofers. All three utilize high quality drive units in tuned reflex enclosures and precision electronic crossovers to deliver clean, detailed sound, perfect for music, public address applications and business/educational presentations, while meeting all safety and fire codes as required by commercial venues.

Denon DN-106S Features

  • 6.5" long-excursion woofers
  • 20mm wide dispersion dome tweeter
  • Driver Power: 60 W (RMS) 120 W (Peak)
  • 70/100V transformers for multi-unit installations
  • Metal rear enclosures meet commercial fire codes
  • Frequency response: 57-20kHz
  • Mounting Bracket Included

What's in the box:

  • Denon DN-106S 6.5 " Commercial-Grade Ceiling Loudspeaker
  • Mounting Bracket
  • Speaker Grill
  • 4x Screws
  • 4x Washers
  • 4-Pin Euroblock Connector
  • User Guide
  • Safety Manual
  • Denon Warranty
