Review Summary
2 channels stereo
10 - 20,000Hz
+/- 1.0dB recording
+/- 0.8dB playback
> 90dB recording (10 - 20,000 Hz, A-weighted)
95dB playback (10 - 20,000 Hz, A-weighted)
> 90dB recording (1kHz, 0dB, A-weighted)
95dB playback (10 - 20,000 Hz, A-weighted)
> 80dB recording (10 - 20,000 Hz, A-weighted)
90dB playback (10 - 20,000 Hz, A-weighted)
Less than 0.001% (below measurable limits)
< 0.008% recording
< 0.006% playback
< 0.01% (1kHz, 0dB, A-weighted)
RCA (unbalanced)
Nominal level: -10dBV (at full scale: -16dB)
Minimum input level: -19dBV or higher
Input impedance: 22kOhms, +/-10% unbalanced
XLR (balanced) +4dBu, RCA (unbalanced)
Nominal level: -10dBV +/- 2dBV
Maximum output level: 6dBV +/- 2dBV
Output impedance: 600Ohms +/- 10% unbalanced
Coaxial RCA (IEC-60958 Type II)
Optical Toslink (IEC-60958 Type II)
Stereo phone jack (1/4") 32Ohms load, 20mW or greater
44.1kHz CD-DA, Audio file
16-bit CD-DA, Audio file
MP3 V1.x - 2.4
File system: CD-DA (CD-TEXT), CD-ROM (ISO9660)
Disc: CD, CD-R, CD-R-DA, CD-RW, CD-RW-DA (high-speed CD-RW supported)
100-230 VAC
<20W
5 to 35 deg. C / 41 to 95 deg. F
25-85% non-condensing
19 x 13.66 x 3.46" / 482.60 x 346.96 x 87.88mm
9.5lbs / 4.31kg
694318019290

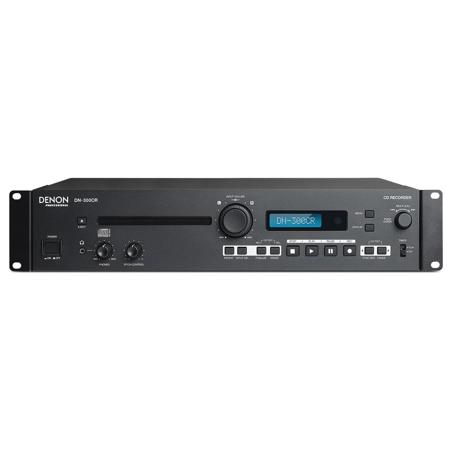

The DN-300CR is a professional, full-featured CD recorder providing the highest level of audio quality for broadcast, studio and entertainment applications. The Denon Professional DN-300CR combines top-flight audio performance, input/output flexibility, rack-mount utility and robust construction. It records on standard CD-R and CD-RW media and CD text is programmed and read from the front panel OLED display. Features specified by the installation market include slot-in transport, programmable auto-track increment, level-dependent sync recording and more.
Featuring Denon Professional's extensive experience in professional-level design and manufacturing, the DN-300CR's performance specifications tell a large part of the story: With a frequency response over the ultra-wide bandwidth of 10-20kHz +/-0.8dB playback and +/-1dB recording, a signal-to-noise ratio of >95dB playback and >90dB recording and channel separation of >90dB playback and >80dB recording, the DN-300CR's pure audio performance is beyond reproach - the very highest attainable audio performance that the present-day state of the art allows.
In addition, the DN-300CR has two digital outputs (coaxial RCA and optical Toslink) for hookup compatibility with virtually all associated equipment, plus it supports practically any CD format: CD, CD-R, CD-R-DA, CD-RW, CD-RW-DA (high-speed CD-RW supported).
