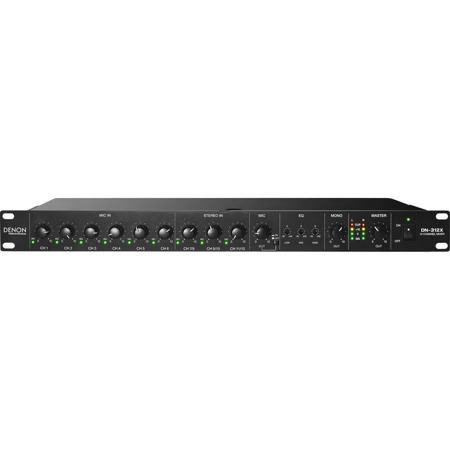

Denon DN-312X 12 Channel 1U Rack-Mounted Line Mixer with Mic Priority
See all Denon Pro items

Denon Pro Pro DN-312X 12 Channel 1U Rack-Mounted Line Mixer with Mic Priority

SKU: DEDN312X

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Allan K : because it has lots of inputs and different types, both mono and stereo. I trust Denon since I own a bunch of their products in my studio. Lots of controls and a 1RU design layout.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Denon Pro DN-312X Specifications

  • Microphone Input: Channels 1-6

    6 Balanced XLR Connectors:
    Frequency Response: 20 Hz - 22 kHz
    THD+N: < 0.03% at 1 kHz
    Sensitivity: -40 dBu
    Maximum Input: -19 dBu
    Signal-to-Noise Ratio: > 103 dB
    Phantom Power: 18-21 V, switch control
    Maximum Voltage Gain:
    60 dB (Mic Input to Line Out, Mic Out & Mono Out)
    50 dB (Mic Input to Rec Out)

  • Line Inputs: Channels 1-6

    6 Balanced XLR Connectors:
    Frequency Response: 20 Hz - 22 kHz
    THD+N: < 0.03% at 1 kHz
    Sensitivity: 0 dBu
    Maximum Input: +21 dBu
    Signal-to-Noise Ratio: > 103 dB
    Maximum Voltage Gain:
    20 dB (Mic Input to Line Out, Mic Out & Mono Out)
    10 dB (Mic Input to Rec Out)

  • Line Inputs: Channels 7/8-11/12

    Stereo Balanced RCA Connectors
    Frequency Response: 20 Hz - 22 kHz
    THD+N: < 0.03% at 1 kHz
    Sensitivity: +10 dBu
    Maximum Input: +21 dBu
    Signal-to-Noise Ratio: > 103 dB
    Maximum Voltage Gain:
    10 dB (Line Input to Line Out)
    0 dB (Line Input to Rec Out)
    4 dB (Line Input to Mono Out)

  • Impedance

    Mic/Line Input: 1.4 kOhms
    Line Input: > 10 kOhms
    All Outputs: 120 Ohms

  • Equalizer

    High: +15 dB at 12 kHz
    Mid: +12 dB at 2.5 kHz
    Low: +15 dB at 80 Hz

  • Crosstalk

    Adjacent Inputs:
    < -70 dB at 1 kHz (Channels 1-6)
    < -68 dB at 1 kHz (Channels 7/8-11/12)
    Input to Output:
    < -82 dB at 1 kHz

  • Main Mix

    Line Output: 0 dBu (+2 dBu), balanced
    Mic Output, Mono Output: 0 dBu (+2 dBu), unbalanced
    Maximum Output: +21 dBu balanced/unbalanced, 1/4" (6.35 mm) jacks
    Noise (Bus): < -83 dB at 20 Hz - 22 kHz

  • Power

    Connection: IEC
    Input Voltage: 100V~, 110-120V~, 50/60Hz; 220-240V~, 50/60Hz or DC24V

  • Dimensions (W x D x H)

    19.0 x 7.7 x 1.7" / 48.26 x 19.56 x 4.32cm

  • Weight

    6.4lbs / 2.90kg

  • UPC Code

    694318019399

About Denon Pro DN-312X

While maintaining a sleek and compact design, the Pro DN-312X 12 Channel 1U Rack-Mounted Line Mixer with Mic Priority is an ultra-slim, high-performance audio mixing solution. This 1U rack-mounted mixer boasts 12 channels, including 6 mic/line combination inputs, powered by HDHQ Denon-Marantz proprietary mic pre's, ensuring superior sound quality and clarity.

In addition to the mic/line inputs, the DN-312X features 6 additional line inputs, providing a wide range of connectivity options for various audio sources. The balanced XLR outputs offer professional-grade audio output, while the 1/4-inch (6.3mm) mono output provides the flexibility to connect the DN-312X to a remote mixer.

For recording purposes, this mixer is equipped with a pair of RCA stereo outputs, allowing seamless connection to a remote recording device. Monitoring the mic signals is made easy with the 1/4-inch (6.3mm) mic monitoring port.

The DN-312X stands out with its comprehensive control features. It provides individual level control for all inputs, ensuring precise sound mixing. Additionally, it offers level control for the mono output port and a master level control, providing total command over your audio output.

The 3-level equalizer allows for fine-tuning of the audio output, while the controlled priority for Mic/Line 1 ensures that important audio signals are always given precedence. The DN-312X can be powered from a standard AC or a 24V DC power source, offering flexibility for various setup environments.

In summary, the Pro DN-312X 12 Channel 1U Rack-Mounted Line Mixer with Mic Priority is a versatile, high-quality audio mixing solution, designed for professional audio applications.

Denon Pro DN-312X Features

  • 6 HDHQ Combination inputs with MIC, Phantom and Line selector switches
  • 6 mono (3 stereo) RCA Inputs
  • Mic monitor 1/4" output for private listening to all mic inputs
  • Balanced XLR line outputs
  • Mono 1/4" line output can be used to feed audio to external recording device
  • AC or 24V DC power inputs
  • Mic 1 Priority Control
  • Master and Individual level controls
  • 1U rack mountable

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Ultra-slim 1U rack-mounted design for space-saving professional audio setups
  • 12 channels with 6 HDHQ Denon-Marantz mic pre's for superior sound clarity
  • Balanced XLR outputs and additional 1/4-inch mono output for versatile connectivity
  • Dedicated RCA stereo outputs for effortless connection to recording devices
  • Individual and master level controls for precise audio mixing and output management
  • 3-level equalizer and priority control for Mic/Line 1 to tailor and prioritize sound signals

What's in the box:

  • Denon DN-312X 12 Channel Line Mixer with Priority
  • IEC Cable
  • User Gide
  • Safety Maunal
  • Denon 1-Year Limited Warranty
