Denon Pro DN-900R Network SD/USB Audio Recorder with Dante 2 x 2 Interface

SKU: DEDN900R

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Denon Pro DN-900R Specifications

Inputs
  • Mic/Line In

    2 XLR connectors

  • Line In

    2 RCA connectors

  • Digital In

    1 AES/EBU, 1 S/PDIF

  • Dante Digital In

    RJ-45 Connector

Balanced Analog In L/R

Jump to...
  • Type

    XLR (1: GND, 2: HOT, 3: COLD)

  • Line Setting Input Level

    + 4dbu

  • Maximum Input Level

    +24 dBu/+20 dBu/ +18 dBu

  • Input Impedance

    5 k Ohm
    20 k Ohm

  • Mic Setting Input Level

    -60 to 16 dBu

  • EIN

    Less than -127 dBu (Rs = 150 Ohm)

  • CMRR

    < 80 dB

Unbalanced Analog In L/R

Jump to...
  • Type

    RCA terminal

  • Input Level

    -10 dBV

  • Maximum Input Level

    +10 dBV/ +6 dBV/ 4 dBV

  • Input Impedance

    10 k Ohm

Unbalanced Digital In

Jump to...
  • Type

    RCA terminal

  • Input Impedance

    75 Ohm

  • Standard Input Level

    0.5 Vp - p

  • Format

    IEC-60958 (Coaxial)

Balanced Digital In

Jump to...
  • Type

    XLR (1: GND, 2: HOT, 3: COLD)

  • Input Impedance

    110 Ohm

  • Standard Input Level

    3.5 Vp - p

  • Format

    IEC-60958 (AES/EBU)

Dante Digital In

Jump to...
  • Type

    10/100 Ethernet RJ-45 connector

  • Format

    24 bit; 96, 48, 44.1 kHz sampling rates, uncompressed

Outputs

Jump to...
  • Balanced Analog Out L/R

    XLR

  • Unbalanced Out L/R

    RCA

  • Balanced Digital Out

    AES/EBU

  • Unbalanced Digital Out

    S/PDIF

  • Headphone Output

    1/4" / 6.35mm

  • Dante Digital Out

    RJ-45 connector

Balanced Analog Out L/R

Jump to...
  • Type

    XLR (1: GND, 2: HOT, 3: COLD)

  • Load Impedance

    over 600 Ohm

  • Output Level

    +4 dBu at 600 Ohm load

  • Maximum Output Level

    +24 dBu/ +20 dBu/ +18 dBV

Unbalanced Analog Out

Jump to...
  • Type

    RCA terminal

  • Load Impedance

    Over 10 k Ohm

  • Output Level

    -10 dBV

  • Maximum Output Level

    +10 dBV/ +6 dBV/ +4 dBV

Balanced Digital Out

Jump to...
  • Type

    XLR (1: GND, 2: HOT, 3: COLD)

  • Output Impedance

    110 Ohm

  • Standard Output Level

    3.0 Vp - p

  • Format

    IEC-60958 (AES/EBU)

Unbalanced Digital Out

Jump to...
  • Type

    RCA terminal

  • Output Impedance

    75 Ohm

  • Standard Output Level

    0.5 Vp - p

  • Format

    IEC-60958 (Coaxial)

Dante Digital Out

Jump to...
  • Type

    10/100 Ethernet RJ-45 connector

  • Format

    24 bit; 96, 48, 44.1 kHz sampling rates, uncompressed

Dante Network Audio

Jump to...
  • Latency

    Less than 1 ms (excluding auxiliary signal paths)

  • Sample Rate

    DN-900R uses SRC on its output to Dante to convert recorder sample rates to Dante Network sample rates

  • Sample Bit Depth

    24 bit

  • Compatible Media

    SD/USB memory/USB HDD

  • Headphone Out

    1/4" (6.35mm) 20 mW/32 Ohm

Storage

Jump to...
  • Maximum Storage Capacity

    Up to 2 TB

  • Maximum File Size

    2 GB

  • Maximum Number of Files

    2000 files (for 1 folder)

  • Maximum Number of Folders

    1000 folders

  • Maximum Number of Folder Hierarchies

    8 (under the root directory)

  • File System

    FAT16, FAT32, HFS+, exFAT

File Format

Jump to...
  • Compatible Media

    SD, SDHC, USB memory, USB HDD

  • Extension

    WAV, AIFF, AIF

  • Resolution

    16 bit, 24 bit

  • Sampling Frequency

    44.1k, 48k, 96k

Playable MP3 Format

Jump to...
  • Extension

    MP3

  • Bit Rate

    32 - 320 kbps, VBR

  • Sampling Frequency

    44.1k, 48k

Playable AAC Format

Jump to...
  • Extension

    M4A

  • Compression Method

    AAC-LC

  • Bit Rate

    64 - 320 kbps, VBR

  • Sampling Frequency

    44.1k, 48k

  • Number of Channels

    2 (stereo), 1 (mono)

  • Audio Frequency Characteristics

    Line / Mic (-16 dBu) (+0.5 dB / -1 dB)

  • S/N Ratio

    < 89 dB (A-weighted)

  • Total Harmonic Distortion

    Less than 0.01 %

  • Dynamic Range

    <106 dB (for 24 bit WAV playback)

  • Channel Separation

    > -90 dB

  • Variable Pitch Width

    -16 % to + 16 %

  • Variable Trim Adjustment Width

    +/- 2.0 db

  • Connection

    Standard IEC (switching power supply)

  • Input Voltage

    120V AC, 60Hz (US and Canada models) 230V AC 50/60 Hz (EU, UK, Asia/Pacific models)

  • Power Consumption

    30 W, 0.4 W (standby), 3.4W (network standby)

Environmental Conditions

Jump to...
  • Operating Temperature

    41 - 95 Degree F (5 - 35 Degree C)

  • Operating Humidity

    25 - 85 %, non-condensing

  • Storage Temperature

    -4 to 140 Degree F (-20 - 60 Degree C)

Physical

Jump to...
  • Dimensions (W x D x H)

    16.92 x 9.48 x 1.68" (430 x 241 x 43mm)

  • Weight

    5.7 lbs (2.6kg)

  • UPC Code

    694318024348

About Denon Pro DN-900R

Under the esteemed banner of Denon Professional, the DN-900R Network SD/USB Audio Recorder emerges as the pinnacle of recording innovation, tailored to satisfy the rigorous demands of top-tier AV installations. This professional-grade audio recorder is engineered with precision to deliver high-quality audio capture, bolstered by a suite of advanced network capabilities.

Crafted for durability and performance, the DN-900R is the quintessential choice for AV professionals seeking to transition from traditional recording methods to the robust reliability of solid-state technology. Its compact 1U rack-mountable design ensures a seamless fit into any professional setup, while the inclusion of a Dante 2 x 2 Interface streamlines integration with other Dante-enabled devices, offering a scalable audio networking solution that is both innovative and flexible.

The DN-900R's versatility is further exemplified by its dual SD card slots, each supporting up to 512GB of storage, alongside USB connectivity for a wide array of recording and playback options. Users can opt for 'dual' recording mode to simultaneously capture audio on both SD and USB media, or 'relay/cascade' mode for extended recording sessions, ensuring that no moment is missed.

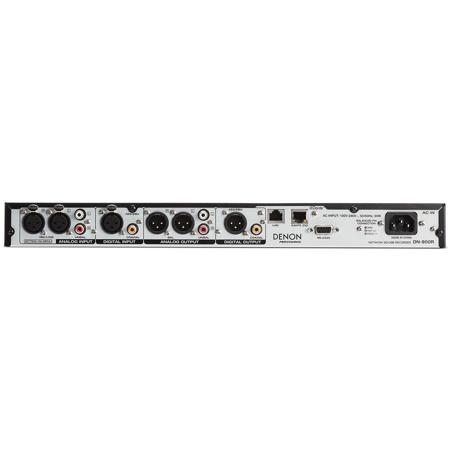

Connectivity is a cornerstone of the DN-900R, featuring balanced XLR and AES/EBU digital inputs and outputs for pristine audio quality, as well as unbalanced analog and SPDIF connections to accommodate a diverse range of audio sources. Whether recording from a microphone, line-level input, or integrating into a Dante networked audio system, this recorder is designed to adapt to the multifaceted needs of professional environments.

In summary, the DN-900R stands as a testament to Denon Professional's commitment to providing advanced, high-quality, and professional audio recording solutions. Its robust build, innovative features, and flexible connectivity make it an unparalleled asset for any AV installation seeking to elevate its recording capabilities to new heights.

Denon Pro DN-900R Features

  • Records to SD/SDHC and USB media in MP3 and WAV (up to 24-bit/96kHz)
  • Dual Record feature (records to two media options simultaneously for primary and backup recording)
  • Dante 2 x 2 network interface for recording and playback
  • Relay Record feature (continues recording to backup media when primary media is full)
  • File Archiving via FTP (automatic or timed) with 24/7 record feature
  • Web Remote for setup and control with password protection

Key Features

  • Professional-grade network SD/USB audio recorder with Dante 2 x 2 Interface
  • High-quality audio recording with advanced network capabilities for AV installations
  • Compact 1U rack-mountable design for seamless integration into professional setups
  • Dual SD card slots and USB connectivity for versatile recording and playback options
  • 'Dual' and 'relay/cascade' recording modes for simultaneous or extended recording sessions

What's in the box:

  • DN-900R Network SD/USB Audio Recorder with Dante 2 x 2 Interface
  • Denon Pro 2 Year Limited Warranty
