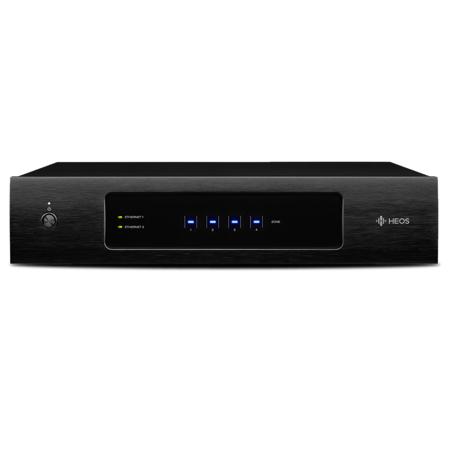

Denon HEOS Drive HS2 8-Channel 60W Class-D Networked Multi-Room Amplifier

Whole home multi-zone audio in a single chassis. Designed by custom integration specialists for custom integration professionals, HEOS Drive HS2 is a unique 4 zone whole home audio distribution system with 8 channels of Class D amplification, all in a 2RU single chassis that features both Dolby Digital and Dolby Digital+ decoding with stereo downmixing. Rated at 60 watts per channel into each of the 8 channels (20Hz-20kHz, .05% THD, 8 ohms, All Channels Driven), 1 or 2 stereo amp pairs can be bridged for single channel high power output (130 watts) and the HEOS Drive HS2 features low impedance drive capability (4 ohms).

• High Resolution Audio Support
• Designed by CI specialists for Custom Integration professionals
• Create 4 separate HEOS zones
• 8 Channels Class D amplification
• Four independent, amplified HEOS zones
• 8 Channel Class D digital amplification; 60 Watts/channel (20Hz-20kHz, 0.05% THD, 8 ohms, All Channels Driven); 4 ohms compatible; bridge mode (130 Watts/channel)
• Pre-amp outputs for each zone
• Amazon Alexa voice integration
• Third Party Control Compatible
• Four x 12V Trigger Outputs
• Two Fiber Optic, two Digital Coax and four Analog Inputs (Matrix switching)
• Four USB Inputs
• Selectable Stereo/Mixed Mono Output
• Selectable High Pass/Low Pass Filters
• Two Ethernet Inputs
• Rack Ears Included
• 2U (3.5") Rack Height (with feet removed)
• Multi Voltage Power Supply
• Dolby Digital Decoding (Downmix to 2.0 channel)
• 192/24 FLAC, ALAC, WAV, DSD 2.8MHz and 5.6MHz Playback
• Dual RJ-45 Ethernet LAN ports
• TV-Sound grouping allows you to enjoy TV sound throughout the HEOS Ecosystem

Each zone features a stereo pair of pre-amp outputs and each zone can be configured for stereo or mixed mono output. The matrix switching system features 2 optical digital inputs, 2 coaxial digital inputs and 4 analog stereo inputs, any of which can be assigned to any zone and every zone features a dedicated USB port for connection to an external USB drive. Equipped to handle virtually any combination of speaker configurations, HEOS Drive HS2 features built-in DSP high pass/low pass filters - set any output to full range, subwoofer or satellite speaker modes, with adjustable crossover points.

The speaker outputs feature 4-way binding posts that are compatible with banana plug terminations and there are 4 12V trigger outputs. The chassis features quiet fan cooling for long term stability and operational reliability. Dual RJ-45 Ethernet LAN ports are provided, for connection to the network and sharing the internet connection with other devices and HEOS Drive HS2 is 3rd party control compatible. HEOS Drive HS2 comes with removable feet and attachable rack ears, allowing rack or shelf placement. Once installed and connected, HEOS Drive HS2 setup and configuration is fast and easy via our HEOS app (iOS and Android).

Multi-Room Sound
Every room can have its own HEOS sound. Or, group multiple speakers to fill the house with the same song. Multi-room means multiple options.

Apps & Streaming Services
Cloud music, streaming music and your music library - all your favorite sources are supported by this amazing FREE app.

Amazing Sound Quality
It's no accident that HEOS speakers produce pristine sound. They are engineered by the experts at Denon, innovators in audio for more than 100 years.

Easy Setup
It's amazing how quickly you can start listening to your HEOS speakers. Place your speakers and you will be listening to music in minutes. It's really that simple.
