New Arrival

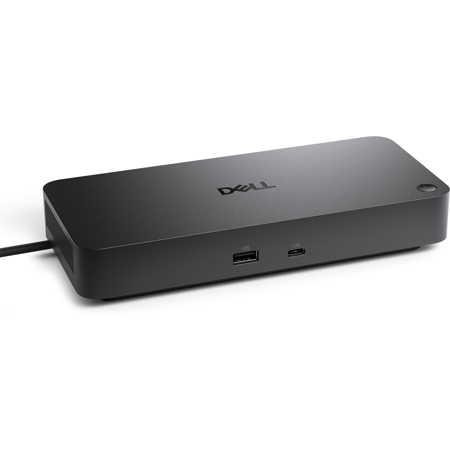

Dell WD25 Pro 100W 10-in-1 USB-C Docking Station

SKU: DELWD25 MFR: WD25
Earn VIP Reward Points

Key Features

  • Experience seamless multi-display support with 4x WQHD (3440 x 1440) @ 60Hz connectivity.
  • Power your Dell laptop with 100W USB Power Delivery, ensuring efficient charging.
  • Achieve rapid data transfer speeds with multiple USB-A and USB-C 3.2 Gen 2 ports.
  • Stay connected with a reliable 2.5GbE RJ45 Ethernet port for stable network access.
  • Enjoy broad compatibility, supporting Windows, Ubuntu, Red Hat, and ChromeOS devices.
  • Manage your workspace effortlessly with advanced features like PXE Boot and MAC address pass-through.
See More Product Details
New Item?Request assistance or get notified
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Dell WD25 Specifications

Technical

Technical

Jump to...
  • Connectivity Technology

    Wired

  • Number of Displays Supported

    4

  • Management Features

    Host PC Management:
    MAC address pass-through
    PXE Boot
    Dock Power Button Sync
    Wake-On-LAN
    WLAN to LAN switch
    Kernel Direct Memory Access (DMA) protection

    Dock Management Features:
    Host PC based firmware update
    Firmware update on disconnect
    Port Disablement

  • Device Supported

    Notebook

Video Resolution

Jump to...
  • DP1.4

    With Display Stream Compression:
    4x WQHD (3440 x 1440) @ 60Hz
    3x WQHD (3440 x 1440) @ 60Hz
    2x 5K (5120 x 2160) @ 60Hz
    1x 6K (6144 x 3456) @ 60Hz

    Without Display Stream Compression Up to:
    4x HD (1280x720) @ 60Hz
    3x FHD (1920x1080) @ 60Hz
    2x QHD (2560x1440) @ 60Hz
    1x 4K (3840 x 2160) @ 60Hz

Network & Communication

Jump to...
  • Ethernet Technology

    RJ45 Ethernet port, 2.5GbE

Interfaces/Ports

Jump to...
  • Interfaces

    Video interfaces:
    2x DP1.4
    1x HDMI 2.1
    1x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4

  • USB Power Delivery

    100W (Dell systems)
    96W (non-Dell systems)

  • USB Ports

    Data Only:
    4x USB-A 3.2 Gen 2 (10 Gbps)
    1x USB-C 3.2 Gen 2 (10 Gbps)

    Power:
    4x USB-A 3.2 Gen 2 (4.5W each)
    1x USB-C 3.2 Gen 2 (15W)
    1x USB-C Multi-function DisplayPort (7.5W)
    All deliver power with or without PC

Software

Jump to...
  • Operating System Supported

    Windows 10
    Windows 11
    Ubuntu
    Red Hat Enterprise Linux
    ChromeOS

  • Maximum Power Supply Wattage

    130W

Miscellaneous

Jump to...
  • Kensington Security Slot

    Yes

General

Jump to...
  • Country of Origin

    Vietnam

  • Dimensions (H x W x D)

    8.07 x 3.54 x 1.39" (20.5 x 8.99 x 3.53cm)

  • Weight

    1.21 lbs (548.85g) (Approx.)

  • UPC Code

    884116493662

About Dell WD25

Boost your productivity with the latest pro dock that offers up to 100W power delivery and a wide variety of connecting options.

Fuel your productivity
Gain the versatility to create your ideal workspace with a dock featuring 6 USB ports, support for 4 displays and driving up to 100W of power delivery to the latest Dell AI PCs for optimal productivity.

More manageable
Keep your dock up to date and work without interruption.

Improved manageability
Manage your dock from the Dell Device Management Console by utilizing Dell Display and Peripheral Manager installed on your PC.

Simplify firmware updates
Reduce IT complexity by deploying a single firmware file across workspaces. Minimize end-user disruption with silent firmware updates that are executed upon dock disconnection.

Work with confidence
Enhance your docking experience with universally compatible features including MAC Address Pass-Through and Power Button Sync, for a better docking experience across brands.

Connect your way
Configure your workspace to your liking with an ambidextrous USB-C cable that can be routed left or right.

Designed for sustainability
The Dell Pro Dock is built with at least 65% post-consumer recycled materials and packaged with 100% recycled or renewable packaging, and offering up to 72% power consumption reduction on standby mode.

Dell WD25 Features

  • Deliver up to 100W power with support for 4 displays
  • Connect easily with 6 USB ports and versatile options
  • Manage and update dock via Dell Device Management tools
  • Simplify IT with silent, seamless firmware updates
  • Enjoy universal compatibility with smart docking features

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience seamless multi-display support with 4x WQHD (3440 x 1440) @ 60Hz connectivity.
  • Power your Dell laptop with 100W USB Power Delivery, ensuring efficient charging.
  • Achieve rapid data transfer speeds with multiple USB-A and USB-C 3.2 Gen 2 ports.
  • Stay connected with a reliable 2.5GbE RJ45 Ethernet port for stable network access.
  • Enjoy broad compatibility, supporting Windows, Ubuntu, Red Hat, and ChromeOS devices.
  • Manage your workspace effortlessly with advanced features like PXE Boot and MAC address pass-through.

What's in the box:

  • Dell WD25 Pro 100W 10-in-1 USB-C Docking Station
  • Power Adapter
  • Power Cord
  • User Manual
  • Dell 3 Year Limited Warranty
