New Arrival

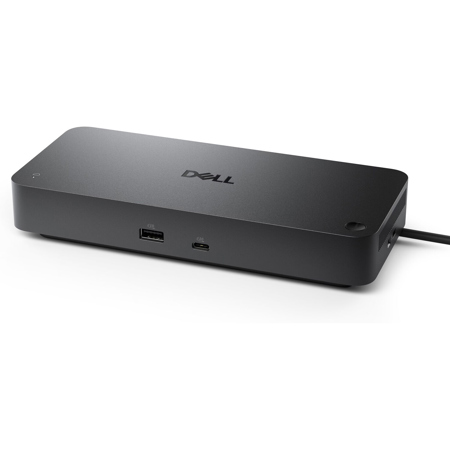

Dell SD25TB5 Pro 300W 12-Port USB-C Thunderbolt 5 Smart Dock

SKU: DELSD25TB5 MFR: SD25TB5
Earn VIP Reward Points

Key Features

  • Experience lightning-fast data transfer with Thunderbolt 5, perfect for large files.
  • Connect up to four displays for an expansive and productive workstation setup.
  • Power your devices efficiently with 300W Power Delivery, ensuring seamless workflow.
  • Enjoy versatile Connectivity with 12 ports, including USB-C and HDMI 2.1 for all peripherals.
  • Benefit from robust durability and a sleek design, ideal for any professional environment.
  • Achieve peak performance with 2.5 Gigabit Ethernet, ensuring reliable network speeds.
See More Product Details
New Item?Request assistance or get notified
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Dell SD25TB5 Pro Specifications

Technical

Technical

Jump to...
  • Connectivity Technology

    Wired

  • Device Supported

    Notebook

  • Cable Length

    32" (81.28cm)

  • Features

    Power Delivery Pass-through
    LED Power Indicator

  • Management Features

    WLAN to LAN Switch
    Port Disablement
    Dell Command Update (DCU)
    Intel AMT over Thunderbolt with select Intel vPro PCs
    MAC Address Pass-through
    Kernel Direct Memory Access (DMA) Protection
    PXE Boot
    Wake-on-LAN
    Dock Power Button Sync

  • Number of Displays Supported

    4

  • Screen Mode Supported

    QHD @ 60Hz
    WQHD @ 60Hz
    4K @ 60Hz
    5K @ 60Hz
    6K @ 60Hz
    8K @ 60Hz
    4K @ 120Hz

  • Supported Resolutions

    2560x1440
    3440x1440
    3840x2160
    5120x2160
    6144x3456
    7680x4320

  • Maximum Data Transfer Rate

    1.25 GB/s

  • Security Slot Type

    Noble Wedge Security Slot
    Kensington Security Slot

  • Power Delivery Details

    4x USB-A 3.2 Gen 2 (4.5W each)
    1x USB-C 3.2 Gen 2 (15W)
    1x USB-C Multi-function DisplayPort (7.5W)
    2x Thunderbolt 5 (15W each)
    All deliver power with or without PC

  • Power Delivery

    Up to 300W (Dell Systems)
    Up to 240W (non-Dell Systems)

  • Video Resolution Details

    4K - 120Hz (Triple Display)
    QHD - 60Hz (Quad Display)
    4K - 120Hz (Quad Display)
    WQHD - 60Hz (Triple Display)
    4K - 60Hz (Dual Display)
    5K - 60Hz (Single Display)
    4K - 60Hz (Quad Display)
    4K - 60Hz (Triple Display)
    8K - 60Hz (Single Display)
    6K - 60Hz (Dual Display)

Network & Communication

Jump to...
  • Ethernet Technology

    2.5 Gigabit Ethernet

Interfaces/Ports

Jump to...
  • Host Interface

    Video interfaces:
    2x DP2.1
    1x HDMI 2.1
    1x USB-C 3.2 Gen 2 Multi-function DisplayPort 2.1
    2x Thunderbolt 5

    USB Ports (Data Only):
    4x USB-A 3.2 Gen 2 (10 Gbps)
    1x USB-C 3.2 Gen 2 (10 Gbps)

  • Total Number of USB Ports

    6x

  • Number of USB 3.2 Gen 2 Type-A Ports

    4x

  • Number of USB Type-A Ports

    4x

  • Number of USB Type-C Ports

    2x

  • USB Type-C Detail

    1x USB-C 3.2 Gen 2 Multi-function DisplayPort 2.1, 1x USB-C 3.2 Gen 2 (10 Gbps)

  • Network (RJ-45)

    Yes

  • DisplayPort

    Yes, 2x 2.1

  • HDMI

    Yes, 1x 2.1

  • Thunderbolt Ports

    2x

Software

Jump to...
  • Operating System Supported

    ChromeOS 141
    Red Hat Enterprise Linux 9.7
    macOS
    Ubuntu 24.04
    Windows 11
    Windows 10

  • Maximum Power Supply Wattage

    330W

  • Power Source Type

    Power Adapter

Miscellaneous

Jump to...
  • Kensington Security Slot

    Yes

General

Jump to...
  • Color

    Black

  • Country of Origin

    China

  • Dimensions (H x W x D)

    8.07 x 3.54 x 1.39" (20.50 x 8.99 x 3.53cm)

  • Weight

    1.39 lbs (630.5g) (Approx.)

  • UPC Code

    884116493761

About Dell SD25TB5 Pro

Conquer intense workloads with versatile Thunderbolt 5 smart dock, delivering up to 300W of future-ready power and remote management capabilities.

Future-proof your productivity
Maximize your AI PC productivity on the industry's first, and most powerful, Thunderbolt 5 smart dock, built for seamless multitasking using Gen AI tools across up to four 4K 120Hz displays. Featuring extended power range, this smart dock delivers up to 300W of power over a single USB-C cable to meet the demands of the highest performance AI PCs. Modern ports ensure a wide range of peripheral connectivity.

More manageable and secure
Elevate the IT management experience by directly managing your smart docks from the Dell Device Management Console - no PC connection or software required.

Most manageable commercial dock
Reduce IT efforts by scheduling updates during off-hours, while ensuring fleetwide firmware compliance and eliminating end user interruptions.

Most secure smart dock
Keep users working confidently with enterprise-grade WPA-3 192-bit encryption for secure Wi-Fi communication. Safeguard your sensitive data with tamper-resistant, hardware-based encryption built into your Dell Pro Smart Dock.

Effortless maintenance
Remotely configure, deploy and update Dell Pro Smart Docks over Wi-Fi without the user connecting to a PC. Unlock out-of-band management on select Intel vPro PCs with Intel Active Management Technology (Intel AMT) over Thunderbolt from the connected dock.

Connect your way
Configure your workspace to your liking with an ambidextrous USB-C cable that can be routed left or right.

Designed for sustainability
The Dell Pro Thunderbolt 5 Smart Dock is built with at least 65% post-consumer recycled materials and packaged with 100% recycled or renewable packaging.

Dell SD25TB5 Pro Features

  • Thunderbolt 5 smart dock delivering up to 300W power via single USB-C cable
  • Supports up to four 4K 120Hz displays for high-performance multitasking
  • Remote management via Dell Device Management Console without PC connection
  • Wi-Fi based remote configuration, deployment and firmware updates
  • Tamper-resistant hardware encryption protects sensitive data

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience lightning-fast data transfer with Thunderbolt 5, perfect for large files.
  • Connect up to four displays for an expansive and productive workstation setup.
  • Power your devices efficiently with 300W Power Delivery, ensuring seamless workflow.
  • Enjoy versatile Connectivity with 12 ports, including USB-C and HDMI 2.1 for all peripherals.
  • Benefit from robust durability and a sleek design, ideal for any professional environment.
  • Achieve peak performance with 2.5 Gigabit Ethernet, ensuring reliable network speeds.

What's in the box:

  • Dell SD25TB5 Pro 300W 12-Port USB-C Thunderbolt 5 Smart Dock
  • Power Adapter
  • Power Cord
  • User Manual
  • Dell 3 Year Limited Warranty
