Denon AVR-3313CIP 7.2-Channel Integrated Network AV Receiver with Rack Mount Ears, 125 Watts x 7 Channels, 3D Pass-Through Technology

SKU: DENAVR3313CI

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Denon AVR-3313CIP Specifications

  • Power Output

    Front L/R:
    125W + 125W (8 ohms, 20 Hz - 20 kHz, THD 0.08%)
    165W + 165W (6 ohms, 1 kHz, THD 0.7%)
    Center:
    125W (8 ohms, 20 Hz - 20 kHz, THD 0.08%)
    165W (6 ohms, 1 kHz, THD 0.7%)
    Surround L/R:
    125W + 125W (8 ohms, 20 Hz - 20 kHz, THD 0.08%)
    165W + 165W (6 ohms, 1 kHz, THD 0.7%)
    Surround back L/R:
    125W + 125W (8 ohms, 20 Hz - 20 kHz, THD 0.08%)
    165W + 165W (6 ohms, 1 kHz, THD 0.7%)

  • Input Sensitivity

    200 mV / 47 kohms

  • Frequency Response

    10 Hz - 100 kHz - +1, -3 dB (DIRECT mode)

  • Signal to Noise Ratio

    102 dB (IHF-A weighted, DIRECT mode)

  • No. of Channels

    7.2

  • Dolby TrueHD

    Yes

  • Dolby Digital Plus

    Yes

  • Dolby Digital EX

    Yes, Matrix 6.1/Discrete 6.1

  • Dolby Pro Logic IIz

    Yes

  • DTS-HD Master Audio

    Yes

  • DTS-HD HR Audio

    Yes

  • DTS Neo:6

    Yes

  • DTS 96/24

    Yes

  • THX Surround EX

    No

  • THX Certified

    No

  • Speaker Selector

    Yes

  • Multi Room/Source

    Yes/Yes

  • AM/FM Tuner

    Yes

  • Tuning Frequency Range

    FM: 87.5 - 107.9 MHz
    AM: 530 - 1710 kHz

  • Remote Control

    Yes

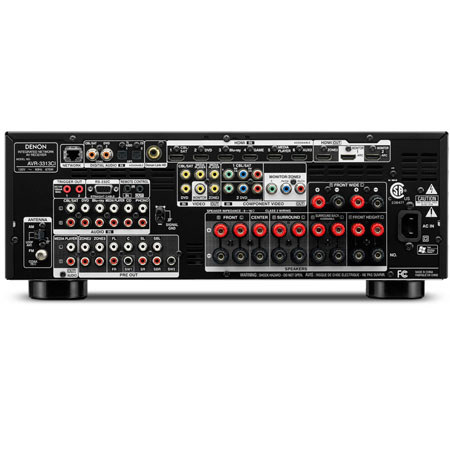

  • Inputs

    HDMI (front 1) x 7
    Component video x 2
    Composite video (front 1) x 4
    Analog audio (front 1) x 7 (Phono: 1)
    Digital optical audio x 2
    Digital coaxial audio x 2
    Denon Link HD x 1

  • Outputs

    HDMI (zone 2: 1) x 3
    Component video x 1
    Composite video (zone 2: 1) x 3
    Subwoofer preouts x 2
    Audio preout (media player) x 1
    Audio preout (zone 2, 3) x 2
    Audio preout (7 ch) x 1 set Phones x 1

  • Other Ports

    Ethernet x 1
    USB port x 1
    Setup mic jack x 1
    FM tuner antenna x 1
    AM tuner antenna x 1
    Remote control (in/out) x 1/x 1
    RC-232C x 1
    DC12V 150 mA max trigger out x 2

  • Video Input Conversion

    4K upscaling

  • Power Requirements

    120 VAC, 60 Hz

  • Power Consumption

    670W (standby 0.1W, CEC standby 0.5W)

  • Dimensions (WxHxD)

    17-3/32x6-37/64x6-37/64" (434x166x379 mm)

  • Weight

    26-1/2 lbs (12 kg)

  • UPC Code

    883795002042

About Denon AVR-3313CIP

Step up to a higher level of home entertainment with the Denon AVR-3313CIP 7.2-Channel Integrated Network AV Receiver with Rack Mount Ears. This network-ready AV receiver lets you enjoy your music collection, iTunes library, photos, movies and thousands of Internet Radio stations like Pandora. You'll be able to access all of your favorite digital media content and components homewide, while enveloping yourself in premium audio and video processing.

The AVR-3313CIP presents superb compatibility with 4K monitors and projectors, Blu-ray players, DVD players, game consoles and other entertainment devices while offering enhanced network capability and ease of use. Rounding out the features is built-in IP control for third-party controllers, allowing seamless integration to home automation.

Denon AVR-3313CIP Features

  • Dynamic Surround Sound & 3D Pass-Through: This receiver provides seven discrete 125 watt channels of equal power to deliver dynamic surround sound for all your entertainment sources. Two subwoofer outputs allow you to add even more bass for your media sources
  • 4K Upscaling: The AVR-3313CIP is capable of upscaling all video signals to 4K (3840 x 2160), which is roughly four times the picture quality of 1080p. Support for such an ultra-high resolution output offers compatibility for 4K monitors and video projectors
  • Network Functions: You can benefit from several networking functions: listen to Internet Radio and play music from files stored on your PC. This receiver supports services like Internet Radio, Pandora, flicker and subscription-based SiriusXM
  • Audyssey MultEQ XT: This technology creates an optimal acoustic profile for your home theater system based on unique characteristics of your listening environment. MultEQ utilizes high resolution equalization filters, allowing it to be effective even in large spaces or rooms with odd shapes
  • Audyssey DSX Technology: Audyssey DSX expands surround sound beyond 5.1 channels with more speakers for an immersive and lifelike home theater experience
  • Assign Power Amps for Different Audio Setups: You can reassign the amplifiers from the two surround back channels to power a pair of front height speakers, or to achieve higher quality sound for 2-channel stereo playback you can configure the receiver for bi-amp operation
  • Three Rooms, Three Sources: If you choose, the AVR-3313CIP allows you to enjoy audio in your main room and two additional rooms at the same time. You can play up to two different video sources and three audio sources
  • Supports Two HDMI Sources Simultaneously: This receiver offers true multi-zone HDMI A/V distribution with the inclusion of its HDMI matrix switching functionality. It has three HDMI outputs (two parallel and one discrete) so you can connect three HDMI equipped displays
  • Seven HDMI Inputs, Three HDMI Outputs & Front-Panel USB Port: This receiver is equipped with 6 HDMI inputs and three HDMI outputs so you can enjoy all your HDMI devices - that means you can hook up a Blu-ray player, gaming system, media player set-top box and still have two HDMI inputs to spare
  • Intuitive GUI & Remote App: Ease of use is paramount to keeping any home theater system running smoothly. Luckily, this receiver has a graphical user interface (GUI) that's intuitive and features large characters that are easy to read
  • Denon Link HD Jitter-Free Audio Transmission Technology: Denon Link HD is Denon's proprietary jitter-free audio transmission technology. This technology is designed to work with Denon's DBT-3313CIP universal Blu-ray/DVD/CD player
  • Built-in IP for Custom Integration: This receiver has versatile features that allow for custom integration like RS-232C and IP control for third-party controllers
  • Supports 4K video to enjoy 4 times higher resolution videos than current HD on larger displays and screens (upscaling,
  • pass-through and GUI overlay)
  • Fully discrete, identical quality and power for all 7 channels (125 watts x 7 channels)
  • Stable power supply for high-quality sound and picture playback
  • Dynamic Discrete Sound Circuit, D.D.S.C.-HD (AL24 Processing Plus to dramatically enhance the music listening experience)
  • Audyssey DSX and Dolby PLIIz for front height or front wide effects channels for more immersive surround sound experience
  • Denon Link HD for the best sounding, jitter-free connection to Denon's DBT-3313UD Blu-ray disc player
  • Hybrid PLL Jitter Reducer
  • Multi-zone HDMI output allows playback of two different video sources at once on two televisions
  • Supports the "Denon Remote App" to simplify operation by Android & iOS tablet/smartphone
  • Convenient HDMI port on the front for connecting a camcorder or other device
  • 5+1 (front) HDMI inputs with 3D, CEC and ARC support

What's in the box:

  • Denon AVR-3313CIP 7.2-Channel Integrated Network AV Receiver
  • Remote Control with Batteries
  • 2 x Rack Mount Ears
  • FM Antenna
  • Power Cable
  • Quick Setup Guide
  • Owner's Manual on CD-R
  • Audyssey Setup Microphone
  • Denon Warranty
